2X2, 2X4, 2X8, 2X16, 2X32, Module PLC Splitter

Name: 2X2, 2X4, 2X8, 2X16, 2X32, Module PLC Splitter
Brand: all-electronics-online.com
SKU: 836922495
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	US $ 11-65/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Link-all Modular PLC Splitters
Usage:	CATV, Pon Systems, Fiber Optic Equipments
Type:	Wireless
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

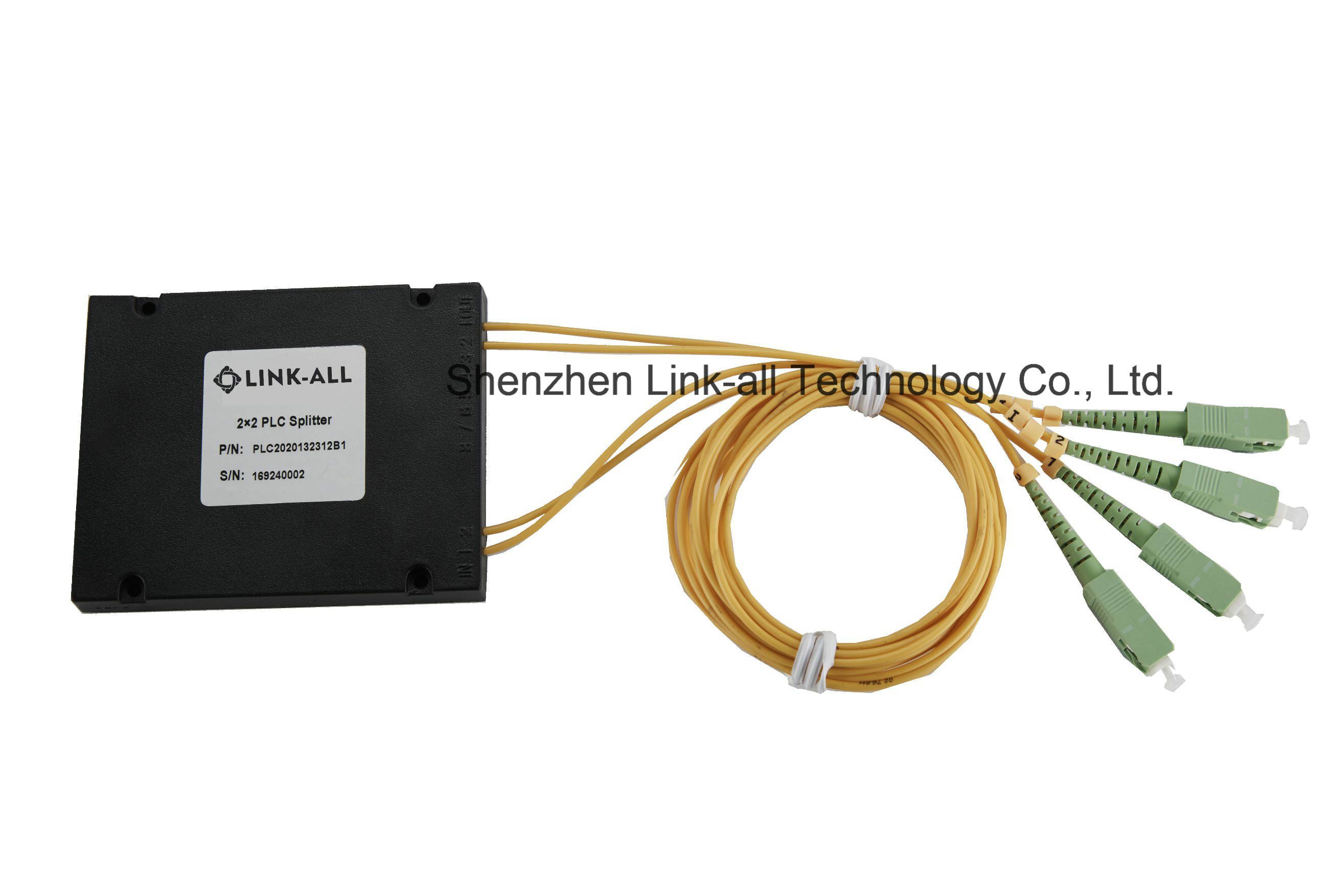

2x2,2x4, 2x8, 2x16, 2x32, Module PLC Splitters

Feature

The products are Telcordia GR-1209 and GR-1221, IEEE 802.3 ah for EPON, 802.3 av for 10G-EPON ITU-T G.984 for GPON, G.987 for 10G-GPON.

- Low Insertion Loss
- Broadband Operation
- Excellent Uniformity
- Low Polarization Dependent Loss
- Low excess loss & High performance
- Good uniformity & Low PDL

Application

- CATV
- Data Communication
- Fiber Optic Equipments & Systems - PON System

Main Specifications
2xN PLC Splitters Modules

Type Parameters			2x2	2x4	2x8	2x16	2x32
Insertion Loss (dB)^1,2	Without connector	Max	4.2	7.8	11.5	14.5	17.7
Insertion Loss (dB)^1,2	With connector	Max	4.7	8.3	12.0	15.0	18.2
PDL (dB)^1,2		Max	0.2	0.2	0.3	0.3	0.3
Loss Uniformity (dB)^1,2		Max	0.6	0.6	0.6	1.8	2.0
Operating Wavelength (nm)			1260~1650
Return Loss (dB)^1,2	Without connector	Min	55
	With APC		55
	With UPC		50
Directivity (dB)		Min	55
Fiber Type			G652D or G657A or G657A2

Note:
1. Measured at room temperature
2. Measured at 1310nm and 1550nm

Pigtail And Connector

Fiber Type	SMF-28e with 2mm or customer specified
Fiber Length	1.1m or customer specified
Connector	FC/UPC or customer specified

Ordering Information

Items	Options
Channel	2X2, 2X4, 2X8, 2X16, 2X32
Encapsulation Type	Round steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Rack mounted
Wavelength	1260-1650nm
Optical ratio	Average
Input/ Output diameter	Ribbon fiber, 0.9mm, 2.0mm, 3.0mm
Jacket of Input/ Output Cable	PVC or LSZH
Connector type	SC, LC, FC, ST, MU, DIN, E2000 and so on or without connector
End Polishing	PC, UPC(SPC) or APC
Cable length	Customized
Fiber Type	G652D or G657A or G657A2
Test report	YES
RoHS	YES
