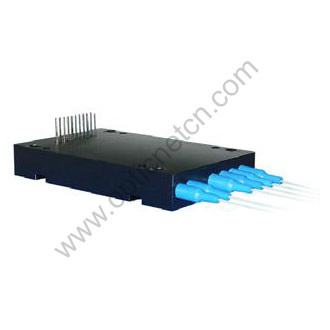

2x4 Mechanical Optical Switch

Name: 2x4 Mechanical Optical Switch
Brand: all-electronics-online.com
SKU: 640531245
Availability: InStock
Rating: 5 (83 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Optical Switch 2x4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

FSW-2x4 Mechanical Optical Switch is famous for its small volume ,reliable performance, simple control mode, It is an ideal Component for OADM,OXC,system monitoring and error protection. It could be easy to integrate into a high density optical communication system.

Features
1. Wide Wavelength Range
2. Low Back Reflection
3. High Reliability\High dependability
4. Unique Patented Technology
5. No glue in the route
6. Easy control

Applications
1. Optical route switching
2. System Monitoring
3. R&D in Laboratory
4. Configurable& OADM

Specifications
Parameters	FSW- 2×4A, 2×4B, 2×4C
Wavelength Range nm	1310 or 1490 or 1550 (SM)		1310 & 1490 & 1550 (SM)		850 or 1310(MM)
Insertion Loss (2x4A) dB	Typ:1.5	Max:1.8	Typ:1.8	Max:2.0	Typ:1.8	Max:2.0
Insertion Loss (2x4B) dB	Typ:0.3	Max:0.5	Typ:0.5	Max:0.8	Typ:0.5	Max:0.8
Insertion Loss (2x4C) dB	Typ:1.5	Max:1.8	Typ:1.8	Max:2.0	Typ:1.8	Max:2.0
PDL dB	≤0.05
Return Loss dB	SM≥50, MM≥30
WDL dB	≤0.25
Cross-Talk dB	SM≥55, MM≥35
Repeatability dB	≤±0.02
Operating Voltage v	5.0
Durability(Life) times	≥10 7
Switching Time ms	≤8
Transmission Power mw	≤500
Operating Temperature	-20 ~ +70 degree
Storage Temperature	-40 ~ +85 degree
Dimension mm	(L)95×(W)76×(H)15

Optic Network Technology Co. Ltd. Is one of the high-tech companies, who is specialized in developing, manufacturing, selling and serving telecommunication-level products.

We have several branches, offering a wide range of the products, such as Fiber Optic Splice Closure, Fiber Optic Termination Box, rack mounting ODF, wall mounting ODF, optical cross cabinet as well as passive components, such as patchcord, pigtail, optical splitter, attenuator, DWDM/CWDM/WDM, etc. One of the divisions also covers fiber optic testing equipment such as Optical Power Meter, Optical Light Source, Fiber Identifier, OTDR, Visual Fault Locator, etc.

With the continuing rapid development of Internet, new Internet service which continuously increase needs of bandwidth of Internet access, our company FTTX solutions adopt independent R&D Optical Link Service products. We have taken full consideration of requirement in different operating environment by offering a range so f OLT, ONU, etc. GEPON products for customers various needs. Our FTTX products also include FTTX FOSC with splitter mounted, FTTX box,

MDU splitter terminal, EPON/GEPON broadband data integration cabinet.

Our company have consistent quality, and our QC team monitor the manufacturing process and inspect all the products before shipment. Our products have been exported to North America, South America, East Europe and West Europe, Middle East, Africa and Asia.

"High quality, good service, competitive price, mutual benefit and innovative technology' is our eternal goal. We are confident that we will be your reliable partner in China and Look forward to establishing fruitful business relationship with the customers domestic and overseas
