3.0mm 2 Cores Multiple Fiber Optical Armored Singlemode Cable

Name: 3.0mm 2 Cores Multiple Fiber Optical Armored Singlemode Cable
Brand: all-electronics-online.com
SKU: 830869775
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 0.5-1.1/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	003
Dimention:	3.0mm
Color:	Yellow
Fiber Type:	Singlemode
Fiber Count:	2
Steel Tube:	SUS204
Attenuation(max.):	1550nm
Tension:	1000N
Crush:	1000N
Dynamic:	20D
Static:	10D
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

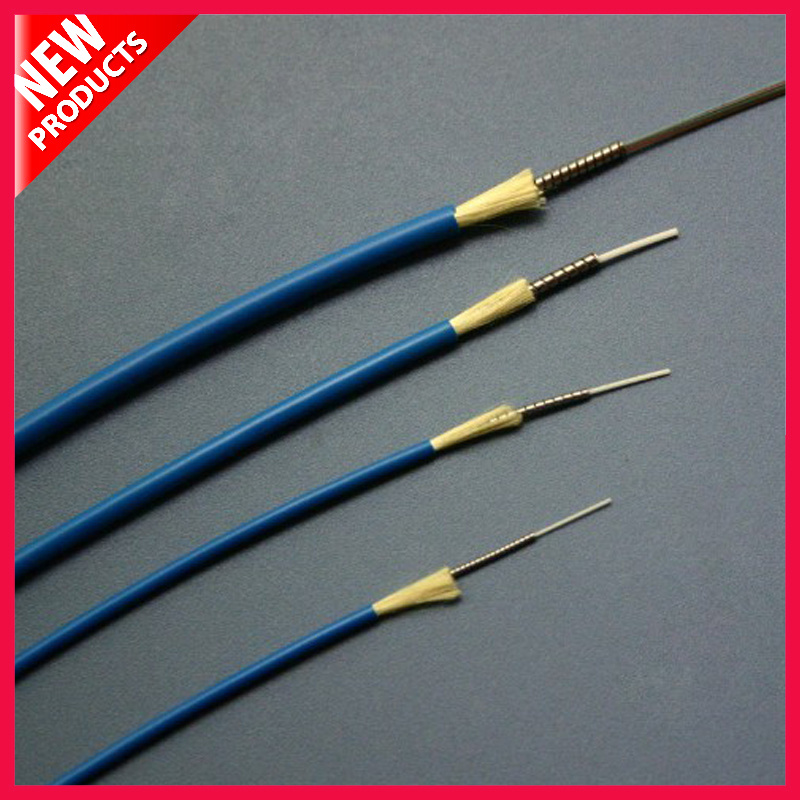

3.0mm 2 Cores Multiple Fiber Optical Armored Singlemode Cable

PUNO is a revolutionary designed fiber optic cable that will provide the single best solution for all your fiber optic projects and usage. It can be used in any channel from Telco, CATV, WAN LAN, SAN, Broadcast, DAS, Communication, Security, Indoor, Outdoor as well as Aerial installations and regardless of environmental conditions. Indoor Armoured Fiber optic cable, 1~12F G.652D / G.657A 900um or 600um tight buffer fibers, covered with stainless steel tube armour, then with kevlar, UV/FR PVC or LSZH outer sheath. Excellent performance for multipurpose.

Key Features:

Armor Fiber	The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility.
Stainless Steel Armored	SUS204
Outer diameter	3.0mm
Kevlar	1000dtex
Long Term	200N
Short Term	400N
Sheath	OFNP

Application:
√ Infrastructure cabling, especially on the extremely adverse environmental condition for construction;
√ Ideal for use in optical device, equipment;
√ Pigtails and Patch cord.

Competitive Product Analysis:

Fiber Category	Singlemode (OS2)
Fiber Make	Corning ClearCurve OS2
Storage	-40 °C to 80 °C (-40 °F to 176 °F)
Installation	-30 °C to 80 °C (-22 °F to 176 °F)
Operation	-40 °C to 80 °C (-40 °F to 176 °F)
Max. Dynamic Tensile Strength	800 N
Max. Static Tensile Strength	600 N
Max. Dynamic Crush Resistance	5000 N
Max. Static Crush Resistance	3000 N
Min. Dynamic Bend Radius	20D
Min. Static Bend Radius	10D
Nominal Outer Diameter	3.0mm
Weight	30/km
