3.0mm Fiber Active Optical Breakout OM4 Cable LSZH Jacket

Name: 3.0mm Fiber Active Optical Breakout OM4 Cable LSZH Jacket
Brand: all-electronics-online.com
SKU: 833274485
Availability: InStock
Rating: 5 (59 reviews)

Price:	US $ 1-300/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	002
Fiber Type:	Multimode,OM4
Connector 1:	40G QSFP
Connector 2:	10G SFP+
OD:	3.0mm
Color:	Orange
Data:	40Gig
Distance:	300 meters
Cable:	Breakout
Application:	Probe
Type:	Multi-mode Fiber
Connection Structure:	MTRJ
Certification:	CCC

Product Description

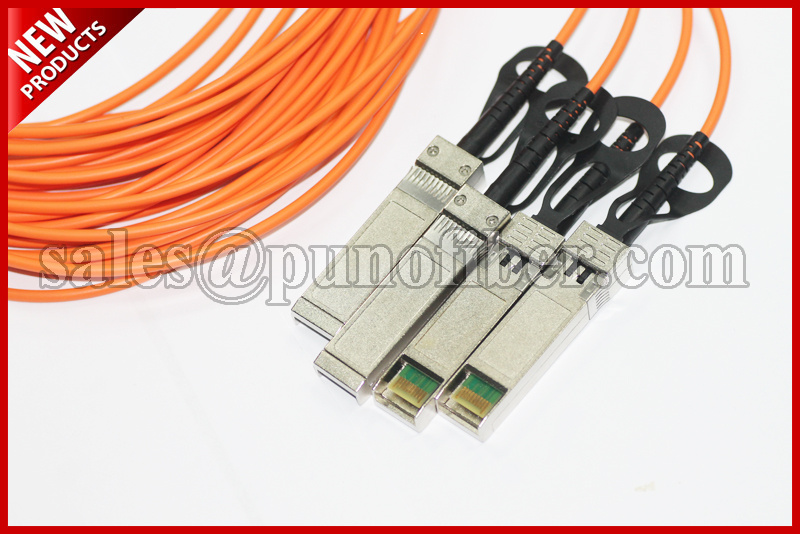

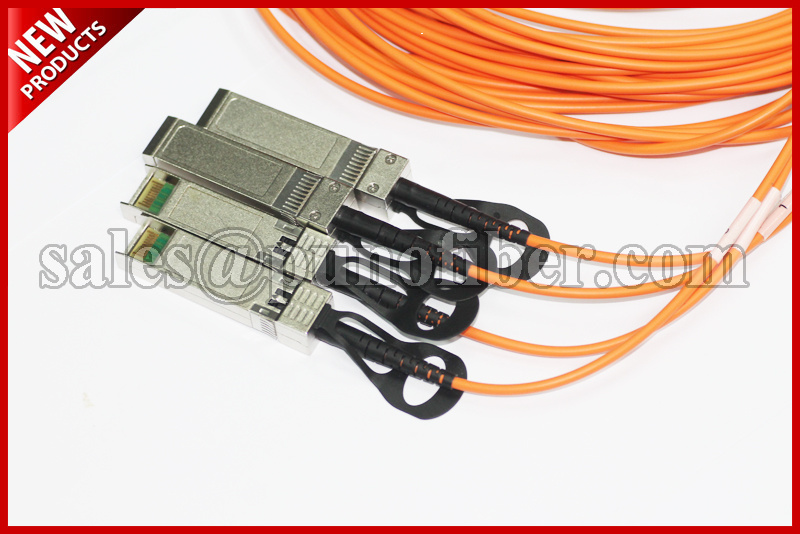

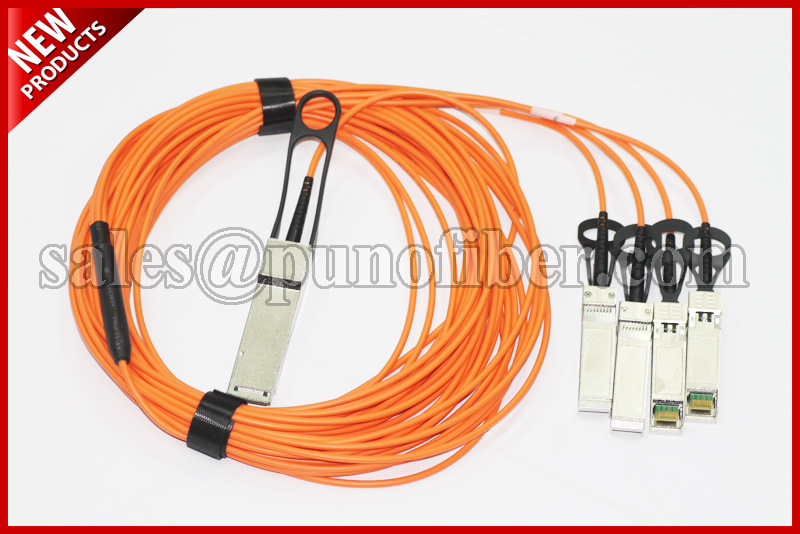

3.0mm Fiber Active Optical Breakout OM4 Cable LSZH Jacket

Keyed Characteristics:
√ Hot pluggable;
√ Bit rate support from 1G to 11.3Gbps;
√Operating environment temperature 0 ~ 70ºC;
√ Low power consumption;
√ SFP+ housing with enhanced EMI shielding;
√ Single 3.3V power supply;
√ Programmable EEPROM for serial identification.

Application:
√ Intra-building backbone and horizontal fiber interconnections;
√ Inter-building OSP entrance terminations;
√ Data Center and WAN main cross-connect terminations;
√ Quick deployment remote data links;
√ Fiber to the Subscriber (FTTX);
√ Low reflection angle polish single-mode applications.

Specification:

Pin	Symbol	Logic	Description	Note
1	VeeT		Module Transmitter Ground	1
2	Tx_Fault	LVTTL-O	Not supported.	3
3	Tx_Disable	LVTTL-I	Not supported.	3
4	SDA	LVTTL-I/O	2-wire Serial Interface Data Line	2
5	SCL	LVTTL-I/O	2-wire Serial Interface Clock	2
6	Mod_ABS		Module Absent	2
7	RS0	LVTTL-I	Not supported.	3
8	Rx_LOS	LVTTL-O	Not supported.	3
9	RS1	LVTTL-I	Not supported.	3
10	VeeR		Module Receiver Ground	1
11	VeeR		Module Receiver Ground	1
12	RD-	CML-O	Receiver Inverted Data Output
13	RD+	CML-O	Receiver Non-Inverted Data Output
14	VeeR		Module Receiver Ground	1
15	VccR		Module Receiver 3.3 V Supply	4
16	VccT		Module Transmitter 3.3 V Supply	4
17	VeeT		Module Transmitter Ground	1
18	TD+	CML-I	Transmitter Non-Inverted Data Input
19	TD-	CML-I	Transmitter Inverted Data Input
20	VeeT		Module Transmitter Ground	1
