3.0mm Fiber Optical Multimode Armored Cable

Name: 3.0mm Fiber Optical Multimode Armored Cable
Brand: all-electronics-online.com
SKU: 833407825
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	002
Cable OD:	4.5mm
Cable Color:	Yellow
Fiber Type:	Multimode
Fiber Count:	4
Wavelength:	1310nm
Coating Diameter:	245um
Material:	PVC
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

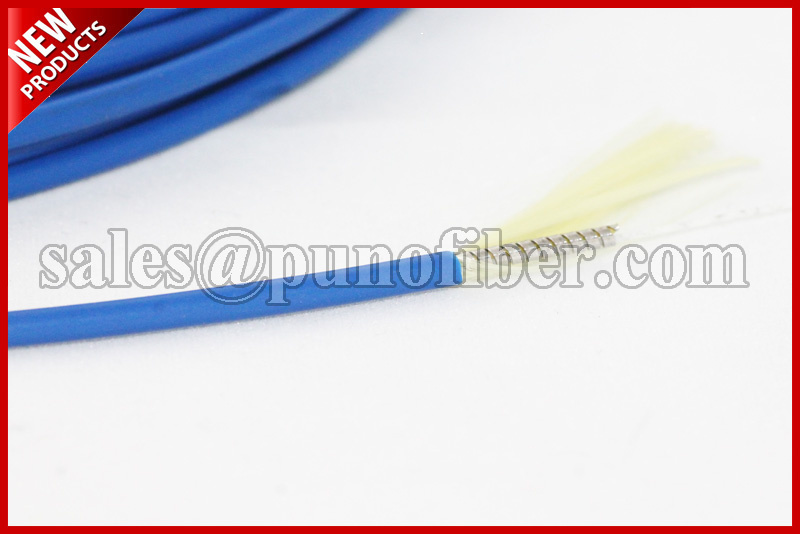

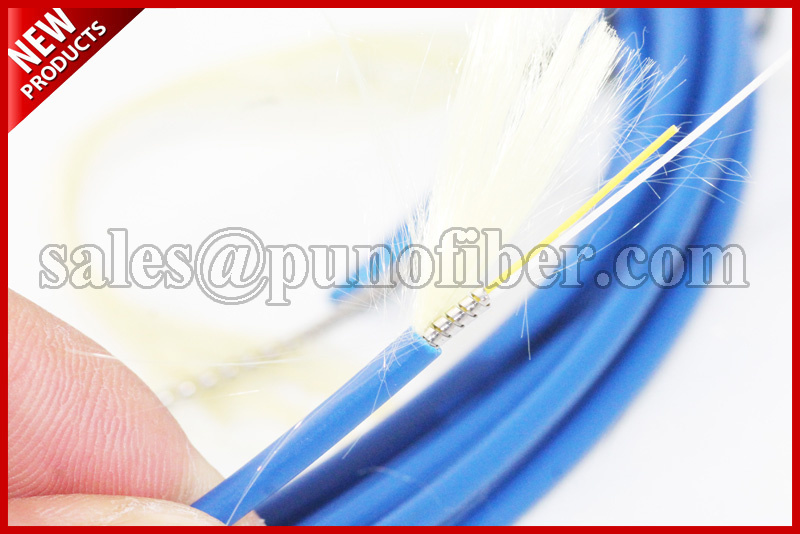

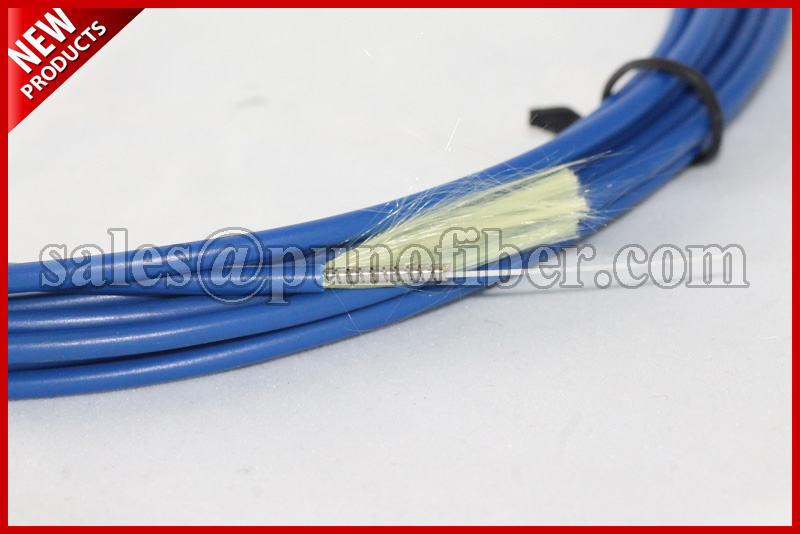

3.0mm Fiber Optical Multimode Armored Cable

We provide a high speed method of transmitting large amounts of data over much greater bandwidths than traditional copper cables. They are widely adopted for use in industrial and commercial applications where streaming live data is vital or when long distance applications make copper conductors impractical due to signal loss. Fibre is not affected by EMI (Electro Magnetic Interference) making it ideal for data transmission in electrically noisy environments. These cables can be terminated with 12 or 24 fiber multi-fiber connectors or the fibers can be fanned out and terminated individually. Plenum, Riser and LSZH options are all UL listed.

Features:
√ Maximum of two 12-fiber ribbons per unit;
√ Easy interface to MT and MTP based connectors as well as today's newest connectors (12- or 24-fiber
ferrules);
√ Ruggedized versions with additional jacketing are available;
√ Environmentally Stable;
√ Excellent Uniformity.

Application:
√ Direct interface to computers with the use of "backplane" style fiber connectors;
√ High density interconnection to wall outlets or patch panels with ribbon connector interfaces;
√ Passive Optical Networks;
√ CATV, LAN, WAN;
√ Test Instrument.

Specification:

Fibre Size/m²	9/125
Fibre Grade	OS2
Fibre Mode	Singlemode, SMF-28e
Attenuation dB/km @1310nm	0.5
Attenuation dB/km @1550nm	0.5
Sheath	Black LSZH Rated

Fiber Count	Nominal Diameter	Weight	Tension LBS (N)		Bending Radius Inches (CM)
Fiber Count	mm	Kg/km	Installation	Long-term	Installation	Long-term
12	5.0	29	22 (100)	7 (30)	2.7 (6.9)	1.8 (4.6)

Storage Temperature (ºC)	-20ºC ~ +60ºC
	Operating Temperature (ºC)		-20ºC ~ +60ºC

Options
√ Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi -mode cable, or other types of fiber;
√ Fiber Count: The fiber count is usually 2,4,6,8or12,or other specified fiber count by clints;
√ Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), enviromental thermoplatic polyurethane (TPU), or other contracted material;
√ Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.
√ Cable Dimension: The nominal cable dimension, or other contracted dimension;
√ Delivery Length: 1km or 2km, or other contracted length;
√ Other Requirements: Other contracted special request.
