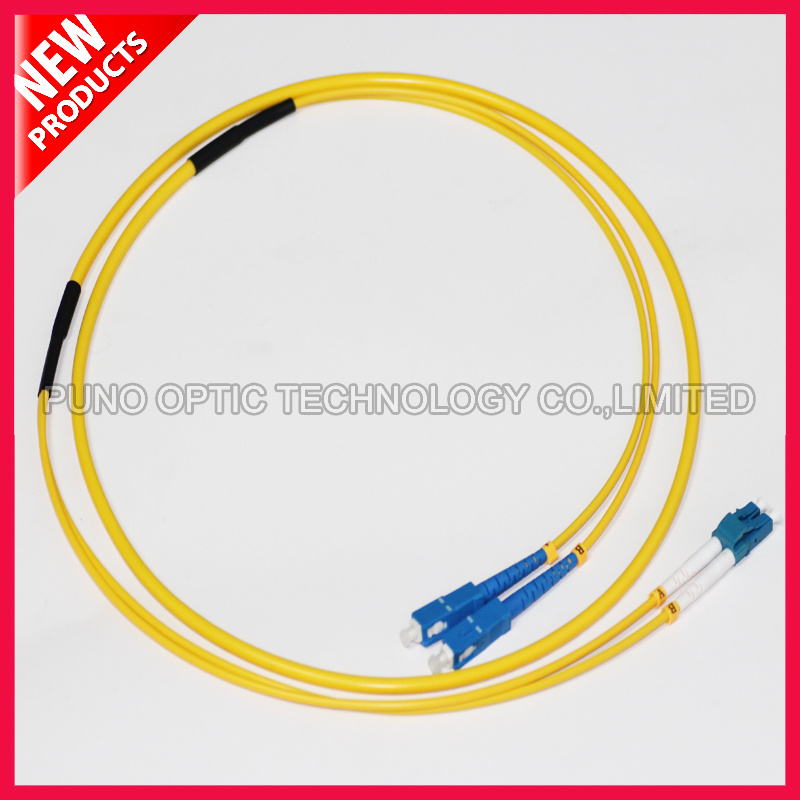

3.0mm SC LC Duplex Singlemode Fiber Optical Cable
| Price: |
US $ 1-3/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PN-001 |
| Color: |
Yellow |
| Cable Material: |
PVC |
| Fiber Type: |
Singlemode; SM |
| Fiber Count: |
2 |
| IR: |
60dB |
| IL: |
0.25dB |
| Polish Type: |
APC |
| Length: |
1 Meter |
| Connector Type: |
SC; LC |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
ISO9001 |
Product Description

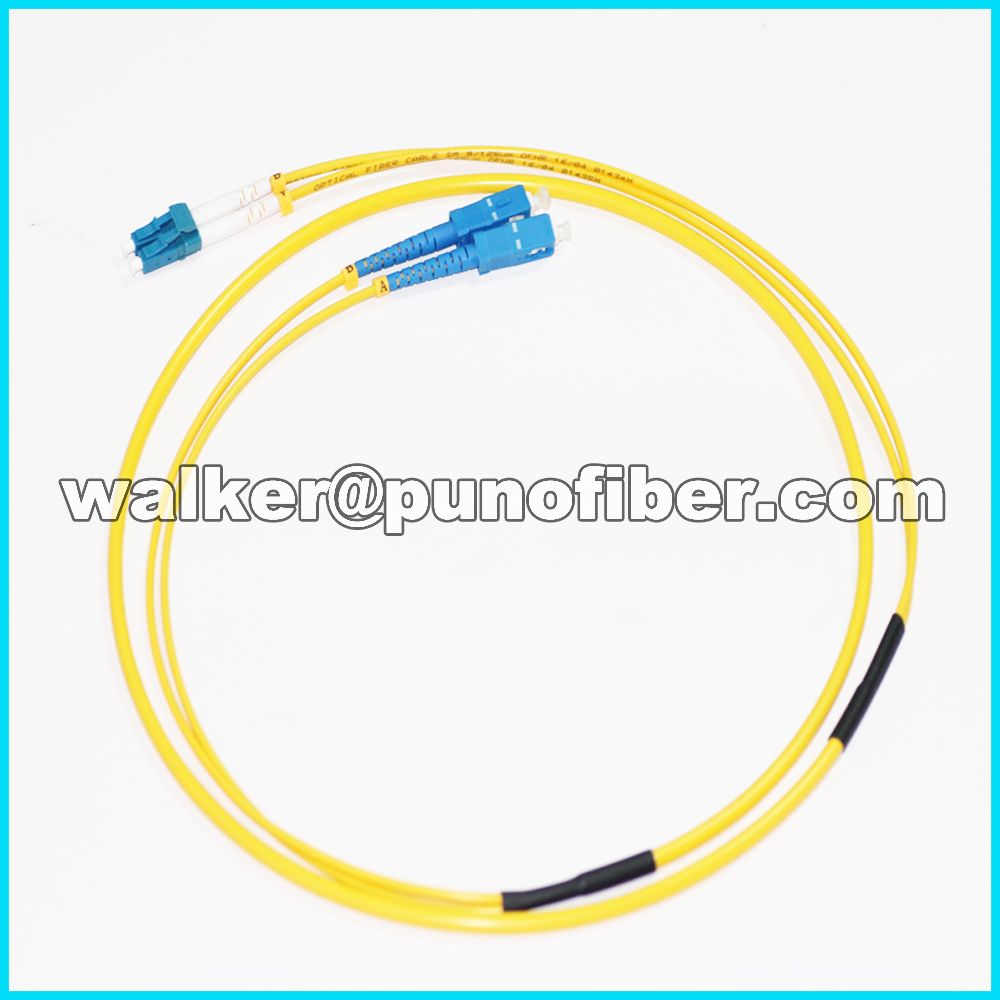

3.0mm SC LC Duplex Singlemode Fiber Optical Cable
Products Overview:
Fiber optic cables are used in applications where distance and speed are at a premium. Compared to coaxial and twisted pair cables, fiber optic cables have the capability to transmit and receive data at vastly greater distances and speeds. PUNO's 10Gb aqua fiber optic cables deliver blazing fast speeds that are optimized for 10 gigabit Ethernet applications. Our 10Gb aqua fiber cables are backwards compatible with existing network equipment and are fully tested for performance and reliability. The fiber optic patch cords are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss.
Copper is becoming obsolete as Fiber Optics are taking over. We as a factory provides you quality fiber optics at aggressive prices. Each fiber optic patch cable is fully tested with the test results labeled on each individual cable. This strict quality check gives you a 100% worryfree experience when patching up networks.
Keyed Characteristics:
√ RoHS Compliant;
√ Standard & custom configurations;
√ Meets Telecordia-GR-326-CORE standards;
√ Easy installation;
√ Environmentally stable;
√ Low insertion loss, high return loss;
√ Ultra low back reflection;
√ For 3.0mm, 2.4mm, 2.0mm jacket or 900um buffer;
√ Single mode fiber: ITU - T G. 652D;
√ Multi mode fiber: ITU - T G. 651;
√ Fiber Min. Bending radius: 10D (Static).
Applications:
√ High bit rate data transmission;
√ Telecommunication networks;
√ Data processing networks;
√ Metro applications;
√ Military, medical and industrial;
√ Active device termination;
√ CATV system;
√ Active device terminations;
√ FTTx (including FTTB, FTTC, FTTD, FTTH).
Data Technical: | No. | Items | Unit | Specification |
| G.657B3 |
| 1 | Mode Field Diameter | 1310nm | μm | 6.3-9.5±0.4 |
| 2 | Cladding Diameter | μm | 125.0±0.7 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±10 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.5 |
| 1550nm | dB/km | ≤0.3 |
| 10 | Macro-Bending Loss | 1turn×7.5mm radius @1550nm | dB | ≤0.08 |
| 1turn×7.5mm radius @1625nm | dB | ≤0.25 |
Mechanical and Environmental Characteristics: | Items | Unite | Specifications |
| Tension(Long Term) | N | 60 |
| Tension(Short Term) | N | 100 |
| Crush(Long Term) | N/10cm | 100 |
| Crush(Short Term) | N/10cm | 500 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -10~+60 |
| Operating Temperature | ºC | -20~+60 |
| Storage Temperature | ºC | -20~+60 |

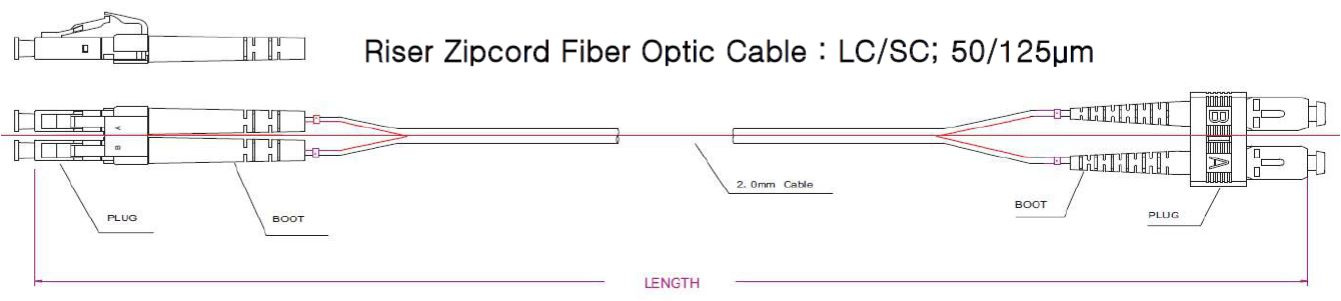

Mechanical Drawing:
Quality Certification:Quality and standards are the foundation of PUNO. We are dedicated to providing customers with the outstanding, standards-compliant products and services. PUNO has passed many quality system verification, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

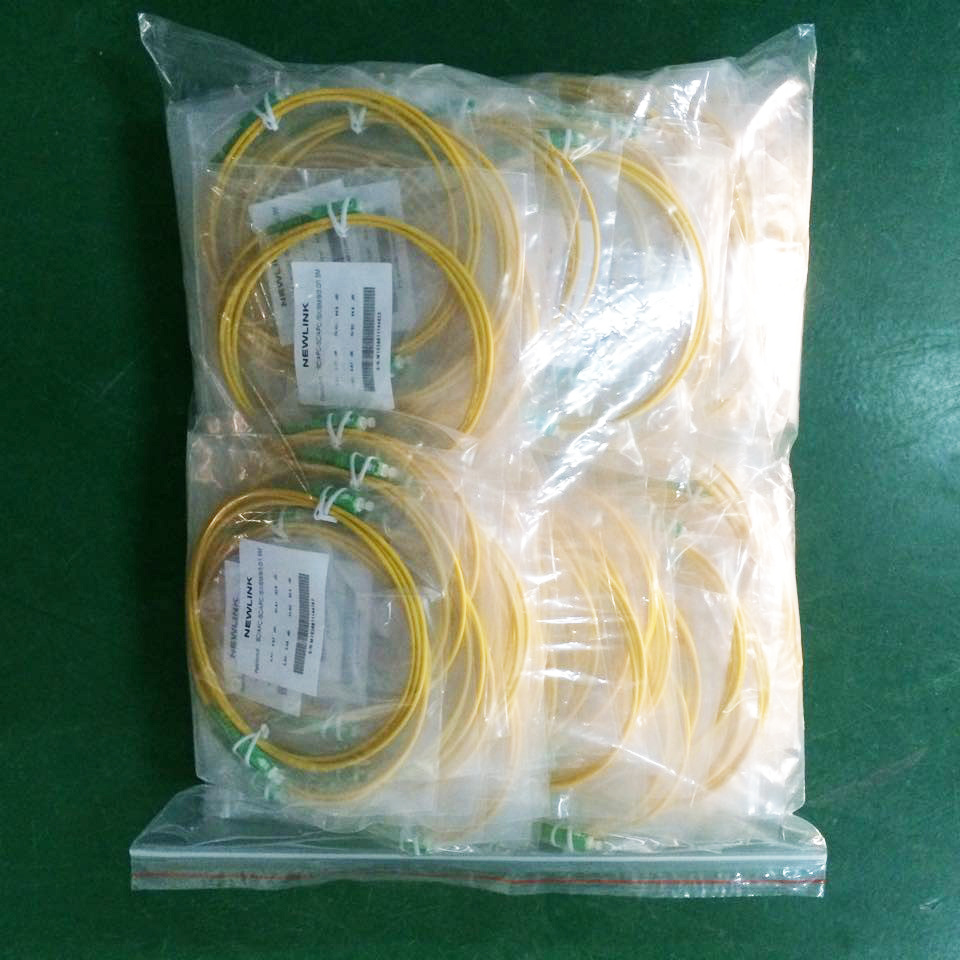

Ship Out Information For Overviews:

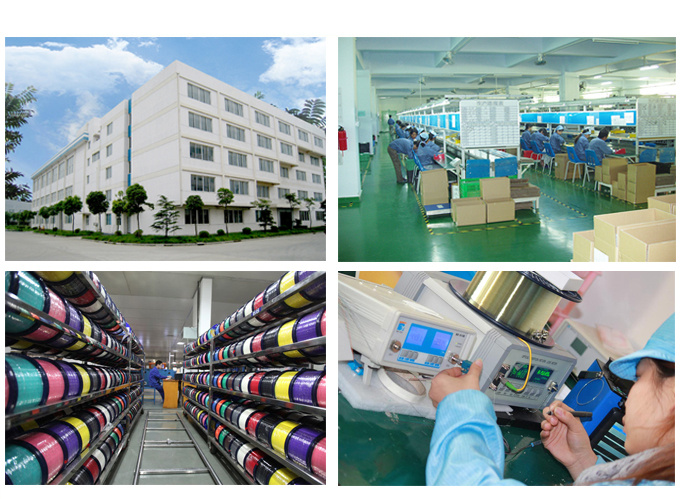

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.
Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.
MISSION
We work with passion to create faster connections between people, places, ideas and values.
VISION
Representing the excellence and values of Made In China worldwide.
VALUES
Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.
MARKET
Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation
EXPERTISE
More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.
PARTNERSHIP
China Mobile, China Union, China Telecom, Huawei, Foxconn.
