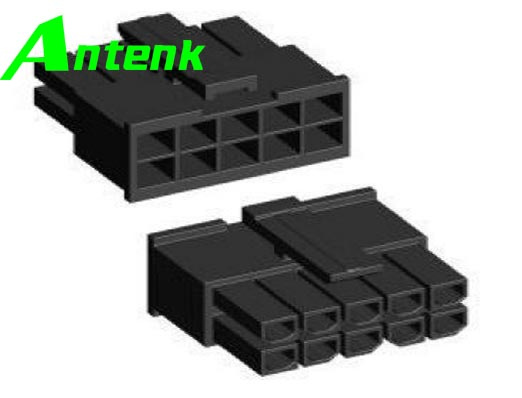

3.0mm Socket Housing Double/Single Rows Connector

Name: 3.0mm Socket Housing Double/Single Rows Connector
Brand: all-electronics-online.com
SKU: 715851225
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 0.02/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	wire to board connectors series 007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	3.0mm
Support Network:	Ethernet
Usage:	Laptop
Type:	Wired
Information Content:	Data

Product Description

3.0mm Socket housing double/single rows connector
Specifiation
1. Current rating: 5.0A AC/DC
2. Voltage rating: 250V AC/DC
3. Contact resistance: 10m ohm. Max
4. Insulation resistance: 100M ohm. Min at 100V DC
5. Withstanding voltage: 1500V AC for one minute
6. Operating Tempeature range: -25A degree~+105A degree
Material and Finish
1. Insulator: Nylon(UL94V-0)
2. Contact: Phosphor Bronze
3. Plating: Tin plated
