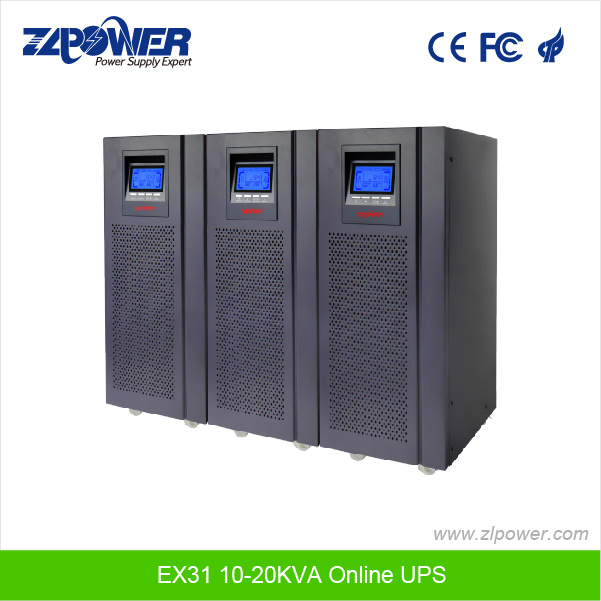

3/1phase 10-20kVA High Frequency Online UPS

Name: 3/1phase 10-20kVA High Frequency Online UPS
Brand: all-electronics-online.com
SKU: 808565305
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX31 10-20K
Product Status:	in Stock
Parallel:	N+X
Phase:	Three Phase
Type:	On-line
Protection:	Multi Protection
Brand:	OEM/Zlpower

Product Description

EX3110~3120K Series Online UPS

Application:
EX3110~3120KVA series high frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

Key features:
♦ Large Blue Ground LCD digital display shows Real time detailed status and parameters.
♦ Output Voltage, Frequency parameter can be set on the display.
♦ Advanced DSP technology, ensure long life reliability.
♦ Wide input voltage range, zero transfer time.
♦ True online double conversion technology.
♦ N+X parallel redundancy.
♦ Excellent protection against over voltage, over Load, over current, over charge and so on.
♦ Input L and N Lines reverse wiring detection, Auto start when AC back.
♦ DC start function, input PFC revises function.
♦ Auto bypass output.
♦ RS232 intelligent communication monitoring.
♦ AS-400 Dry contact and SNMP card remote intelligent control.
♦ Available to work with generators.
♦ Lightning, surge, short circuit, protection.

Specificaiton:

MODEL		EX3110K	EX3110KL	EX3115KL	EX3120KL
Capacity	VA/W	10KVA/8000W	10KVA/8000W	15KVA/12KW	20KVA/16KW
Input	Nominal Voltage	380VAC
	Voltage Range	210~475VAC
	Frequency Range	50/60Hz (Adjustable); 50Hz:46~54Hz; 60Hz:56~64Hz
	Phase	Three phase (4 Wires+Ground)
	Power Factor	≥0.95
Output	Voltage	208/220/230/240*(1±1%) VAC
	Frequency	50/60Hz (Adjustable); 50Hz AC Mode: Follow AC, Battery Mode: 50Hz (1±0.2%) / 60Hz AC Mode: Follow AC, Battery Mode: 60Hz (1±0.2%)
	Wave Form	Pure sine Wave
	Power Factor	0.8
	Harmonic Distortion	≤2% (Linear load); ≤6% (Nonlinear load)
	Overload Capacity	Load<105% work consistant; 105%
	Current Crest Ratio	3∶1
	Connections	Terminal block
Efficiency	Battery Mode	87%
	AC Mode	85%
Battery	Type	Sealed free maintenance lead acid battery
	Nominal DC Voltage	Built in batteries 12V7.0AH	192 VDC
	Quantity	16 PCS
	Back-up Time (Full load)	≥3 minutes	Depends on requested Back-up time
	Recharge Time	7 hours to 90%	Depends on capacity of external battery bank
	Charge Current(Max)	1.0 A	4.5A
	Charge Voltage	219.5Vdc±1%
Bypass	Automatic Transfer	On overload and UPS failure
Transfer Time		Zero
Indicators	LCD Display	UPS status, I/P&O/P voltage&frequency, Battery voltage, Battery capacity, Loading, Fault code
Audible Alarm		Bypass, battery mode, Battery low, Overload, Fault
Acoustic Noise	At 1 Meter Distance	<55dB		<60dB
Communications	Intelligent RS232 serial port	Windows 98/NT/2000/XP/3000,Linux,Sun network ,IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX ,MAC
	SNMP (Optional)	Power management from SNMP manager and web browser
	USB (Optional)	Windows family software and Mac OS
Environmental	Operating Temperature	0~40ºC
	Operating Humidity	20-90% (No Condensation )
Weight	Net weight (kgs)	65	26	35	35
UPS Dimension	LWH (mm)	500248616
