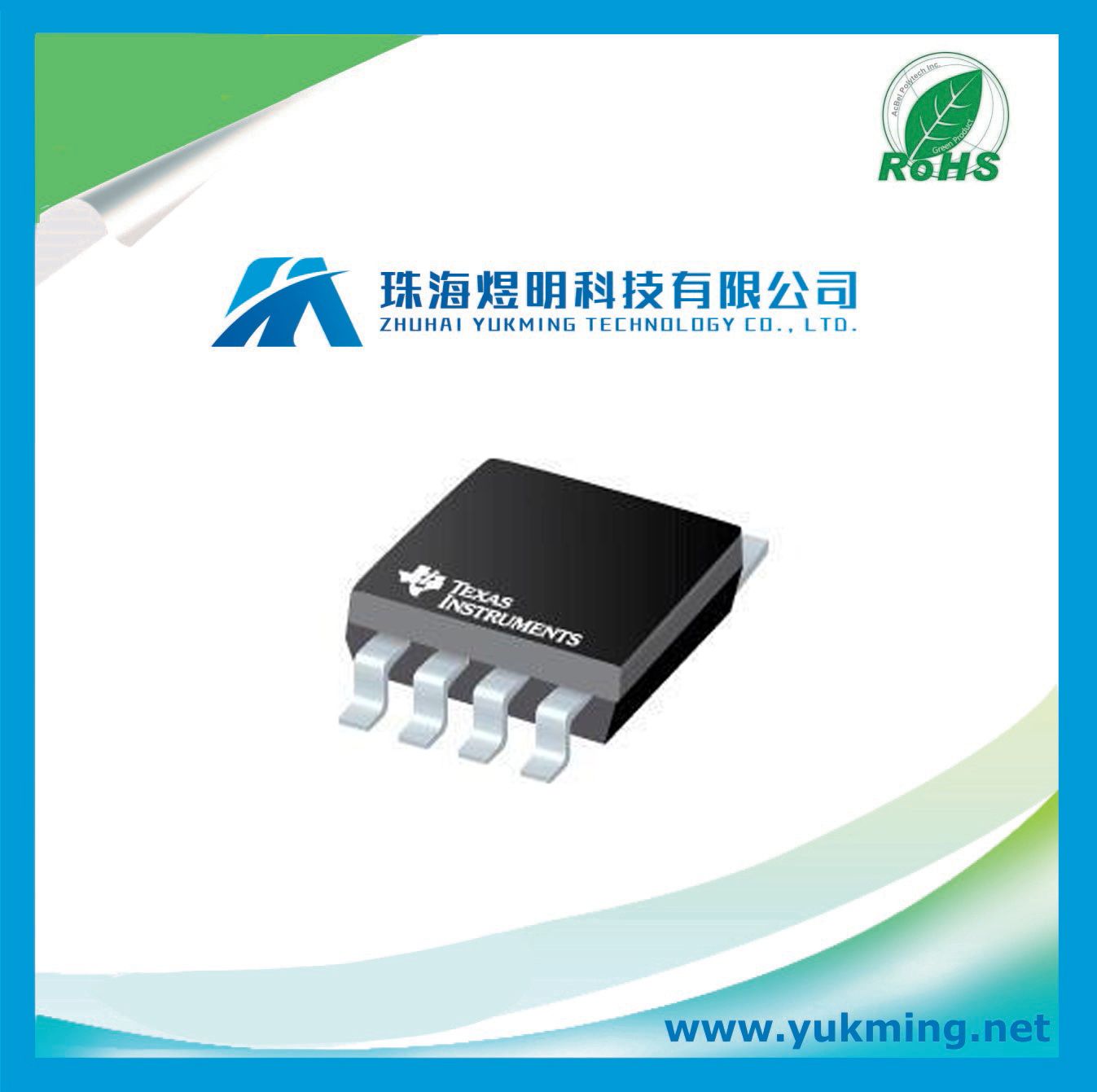

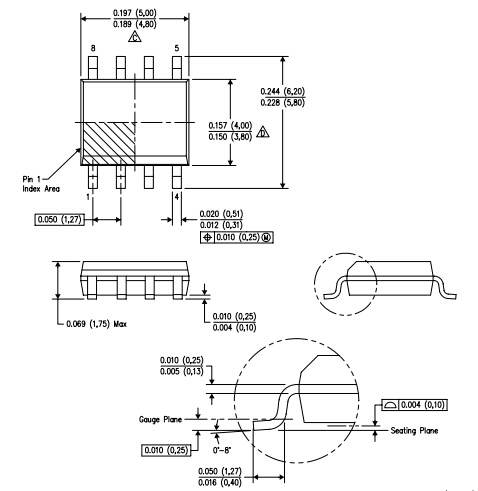

3.3-V RS-485 Transceiver IC Sn65hvd11dr Integrated Circuit

Product Description

3.3-V RS-485 TRANSCEIVERS

Features
Operates With a 3.3-V Supply
Bus-Pin ESD Protection Exceeds 16 kV HBM
1/8 Unit-Load Option Available (Up to 256
Nodes on the Bus)
Optional Driver Output Transition Times for
Signaling Rates (1) of 1 Mbps, 10 Mbps, and
32 Mbps.
Meets or Exceeds the Requirements of ANSI
TIA/EIA-485-A
Bus-Pin Short Circuit Protection From -7 V to
12V
Low-Current Standby Mode . . . 1 µA Typical
Open-Circuit, Idle-Bus, and Shorted-Bus
Failsafe Receiver
Thermal Shutdown Protection
Glitch-Free Power-Up and Power-Down
Protection for Hot-Plugging Applications
SN75176 Footprint

APPLICATIONS
• Digital Motor Control
• Utility Meters
• Chassis-to-Chassis Interconnects
• Electronic Security Stations
• Industrial Process Control
• Building Automation
• Point-of-Sale (POS) Terminals and Networks

Description

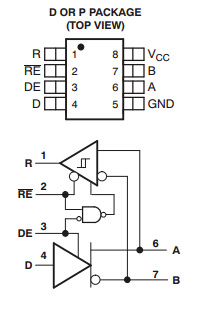

The SN65HVD10, SN75HVD10, SN65HVD11,
SN75HVD11, SN65HVD12, and SN75HVD12
combine a 3-state differential line driver and
differential input line receiver that operate with a
single 3.3-V power supply. They are designed for
balanced transmission lines and meet or exceed
ANSI standard TIA/EIA-485-A and ISO 8482:1993.
These differential bus transceivers are monolithic
integrated circuits designed for bidirectional data
communication on multipoint bus-transmission lines.
The drivers and receivers have active-high and
active-low enables respectively, that can be externally
connected together to function as direction control.
Very low device standby supply current can be
achieved by disabling the driver and the receiver.

The driver differential outputs and receiver differential
inputs connect internally to form a differential input/
output (I/O) bus port that is designed to offer
minimum loading to the bus whenever the driver is
disabled or VCC = 0. These parts feature wide positive
and negative common-mode voltage ranges, making
them suitable for party-line applications.
