| Prod Model: |
GH33 series ups |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transfer Time: |
0 Ms |
| Power Efficiency: |
0.8 |
| Phase Type: |
3 Phase Input & Output |
| Battery Type: |
Sealed Lead Acid Maintenance-Free Battery |
| Warranty: |
12 Months |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
Product Description

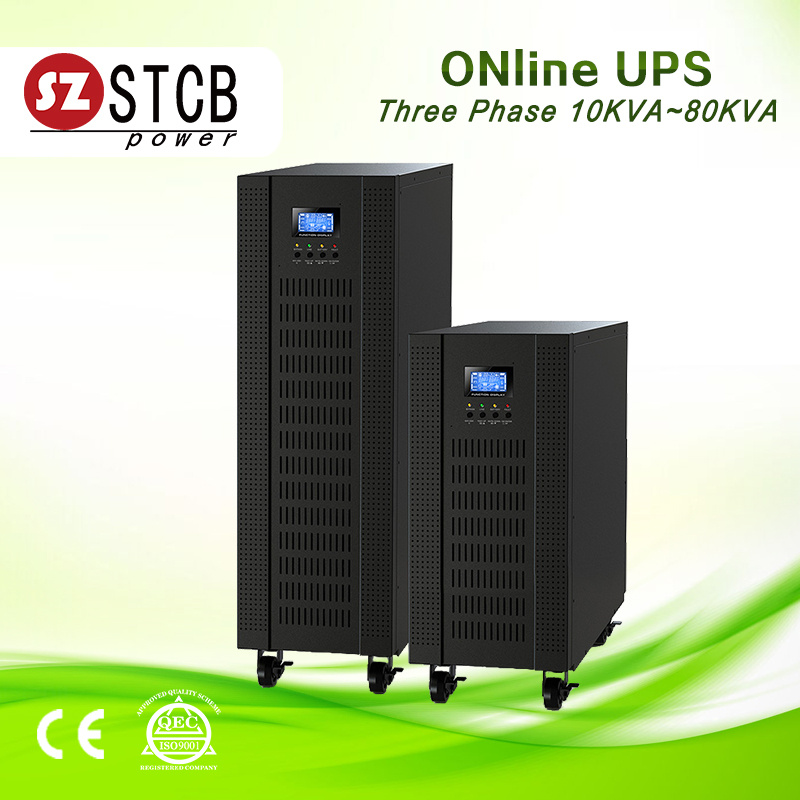

3*380v ups 10kva 20kva 30kva accept 380v/220v output
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range (110-300 VAC)
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. Eco mode operation for energy saving (ECO)
8. Accepts dual power inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14. Maintenance bypass available
15. Optional N+X parallel redundancy
16. Optional isolation transformer offers full isolation and complete common mode noise rejection
Specification:
| MODEL | GH33 10K(L) | GH33 15K (L) | GH33 20K (L) | GH33 30K (L) |
| PHASE | 3 phase in & 3 phase out |
| CAPACITY | 10000VA
8000W | 15000VA
12000W | 20000VA
16000W | 30000VA
24000W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | ≥ 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 3 x 400 VAC (3Ph+N) |
| Frequency Range | 46~54Hz or 56~64Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤2 % THD (Linear Load)
≤5 % THD (Non-linear Load) |
| Transfer Time | zero |
| Waveform | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
Standard
Model | Battery Type | 12 V / 9 AH |
| Numbers | 18/20 pcs | 2* 18/20 pcs | 3* 18/20 pcs |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | 1A | 2A | 2A | 4A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
Long-run
Model | Battery Type | Depending on the capacity of external batteries |
| Numbers |
| Charging Current | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output
voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
Standard
Model | Dimension | 815*250*826 | 815*250*826 | 815*250*826 | 815*300*1000 |
| Net Weight | 109kg | 164kg | 164kg | 234kg |
Long-run
Model | Dimension | 592*250*826 | 592*250*826 | 592*250*826 | 815*250*826 |
| Net Weight | 38kg | 40kg | 40kg | 64kg |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 60dB | Less than 65dB |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web
browser |
* Product specifications are subject to change without further notice
