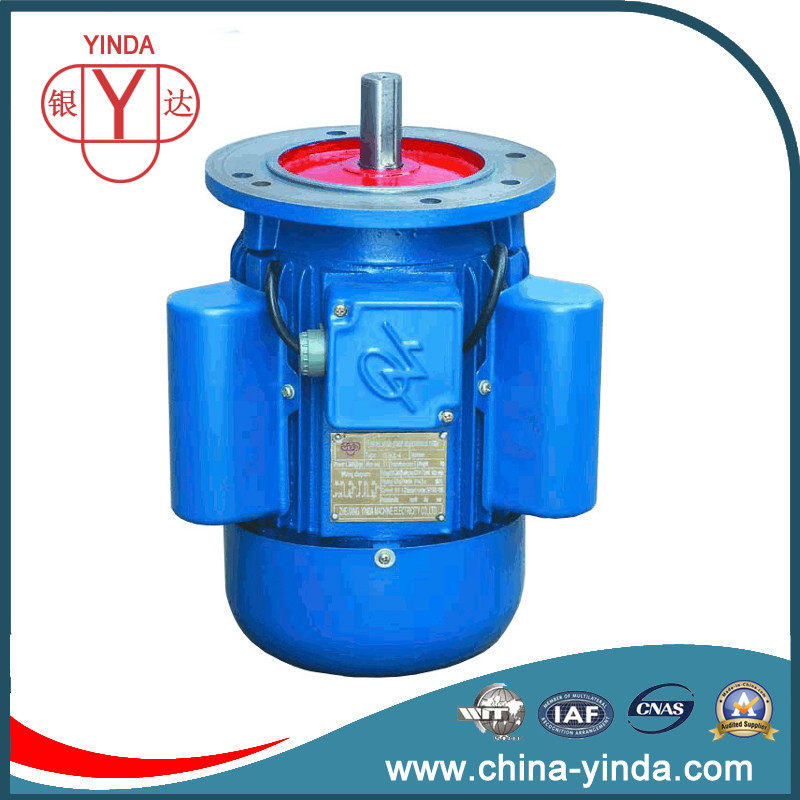

3/4 - 10HP Flange Mount Dual Capacitor Single Phase Motor

Name: 3/4 - 10HP Flange Mount Dual Capacitor Single Phase Motor
Brand: all-electronics-online.com
SKU: 638630985
Availability: InStock
Rating: 5 (146 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL-100-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output:	0.55- 7.5kw
Voltage:	100/110/120/220/240
Frequency:	50 or 60Hz
Frame Material:	Aluminum /Cast Iron
Mounting Position:	B5/B3/B35/B14/B34
Protection Class:	IP54
Insulation Grade:	F
Continuous Working Duty:	S1
Cooling Method:	IC411
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Number Of Stator:	Single-Phase
Function:	Driving
Starting Mode:	Capacitor Starting

Product Description

Flange Mount Capacitor Start and Run Single Phase Motor

Ac Motor, Electrical Motor, Electric motor, Asynchronous Motor, Capacitor Motor, Micro motor, Electromotor, Small Motor,Fan Motor, Gear Motor, reducer motor

Applications

Pumps
Fans
Conveyors
Blowers
Air compressors
Industrial equipment
Milling machines
Tools
Farm equipment
Aeration equipment
Other moderate-to-high starting torque applications.

Standard Features

Single-phase, II and IV pole, 50Hz
Squirrel cage rotor / Aluminum die cast
IEC dimension
Insulation Class 'B'
High starting torque
Continuous Duty (S1)

Optional Features

Special Voltages and frequency
Aluminum frame
B3/B5/B35 mount

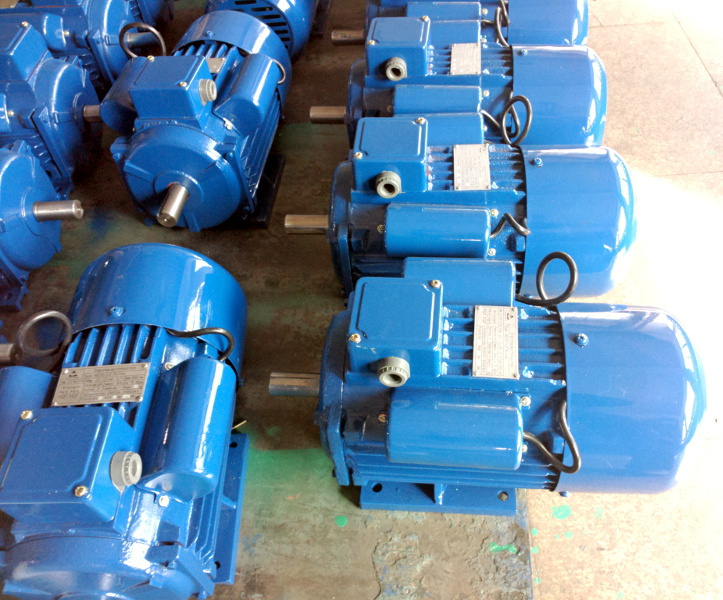

Photos:

Technical Data

Type	Rated output		Voltage	Frequency	Speed	Efficiency	Power factor	Current	Is	Ts	Nosie
Type	Kw	HP	V	Hz	r/min	%	cosΦ	A	In	Tn	Lw dB(A)
YL80M1-2	0.75	1	220	50	2800	72.0	0.95	5.94	5.5	1.8	75
YL80M2-2	1.1	1.5	220	50	2800	74.0	0.95	7.74	5.5	1.8	75
YL90S-2	1.5	2	220	50	2840	75.0	0.95	9.4	5.5	1.8	78
YL90L-2	2.2	3	220	50	2840	76.0	0.95	13.7	5.5	1.7	78
YL100L-2	3	4	220	50	2840	78.0	0.95	18.2	6	1.7	83
YL112M-2	3.7	5	220	50	2840	79.0	0.95	22.6	6	1.7	83
YL132S-2	5.5	7.5	220	50	2880	80.0	0.95	34.5	6	1.7	83
YL80M1-4	0.55	0.75	220	50	1400	68.0	0.92	4	5	1.7	70
YL80M2-4	0.75	1	220	50	1400	70.0	0.95	5.2	5	1.7	70
YL90S-4	1.1	1.5	220	50	1400	71.0	0.95	7.2	5	1.7	73
YL90L-4	1.5	2	220	50	1400	73.0	0.95	9.6	5	1.7	73
YL100L1-4	2.2	3	220	50	1400	75.0	0.95	13.9	5	1.7	78
YL100L2-4	3	4	220	50	1400	77.0	0.95	18.6	5	1.7	78
YL112M-4	3.7	5	220	50	1430	78.0	0.95	22.8	5.5	1.7	83
YL132S-4	5.5	7.5	220	50	1440	79.0	0.95	35	5.5	1.7	83

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
