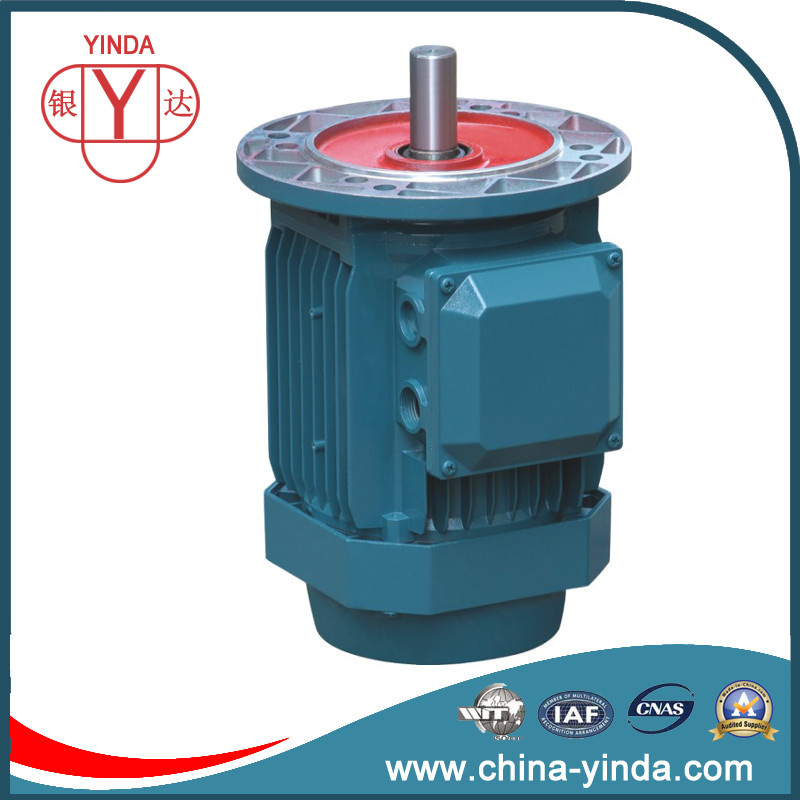

3/4 ~ 10HP Tefc Three Phase AC Electrical Motor

Name: 3/4 ~ 10HP Tefc Three Phase AC Electrical Motor
Brand: all-electronics-online.com
SKU: 701889142
Availability: InStock
Rating: 4.7 (149 reviews)

Price:	US $ 39-42/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS63 -132
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	0.12- 7.5kw
Voltages:	220/380V, 400/690V, 380/660V
Frame Material:	Aluminum
Mounting Position:	B5, B3, B35, B14, B34
Working Method:	S1 Duty
Protection Class:	IP55
Insulation Grade:	F
Cooling Way:	IC411
Winding Protection:	PTC Thermistors (Optional)
Warranty:	12 Months
Number Of Stator:	Three-Phase
Function:	Driving

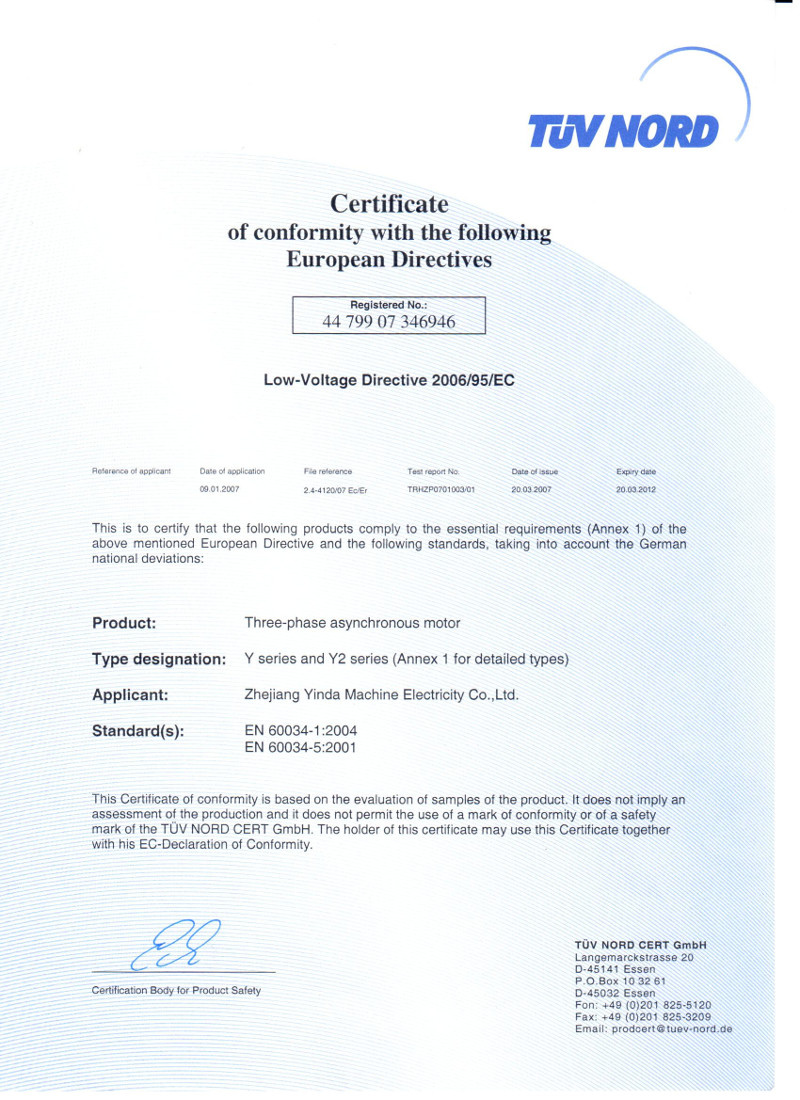

Certification:	Ce

Product Description

1/HP~ 7HP Flange Mounted Three-Phase Ac Motor

Standard Featurers:
Cast iron Frame: 63-132
Mounting type: B5
Power: 1/4HP-10HP
Squirrel cage rotor/Aluminium die castAluminum
Duty Type: S1
Protection Class: IP54
Insulation Grade: F
Voltage: 380V
Frequency: 50Hz

Optical features:
Mounting type: B3/B14/B34
Special voltages available
Frequency: 60Hz

Applications:
Gearbox, Fans, pumps, pulleys, cranes,
Conveyor belts, mills, grinders,
Crushers, drilling machinery, blowers, compressors,
Food processing machines etc.

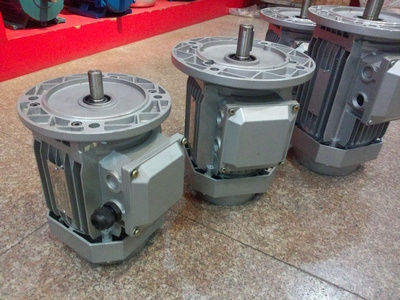

Photos:

Technical Data:

Type	Rated Output		Voltage	Frequency	Speed	Efficiency	Power factor	In	Is	Ts		Nosie
Type	Kw	HP	V	Hz	r/min	%	CosΦ	A	In	Tn	Tn	Lw dB(A)
631-2	0.18	0.25	380	50	2800	65	0.8	0.5	5.5	2.2	2.2	61
632-2	0.25	0.33	380	50	2800	68	0.81	0.7	5.5	2.2	2.2	61
711-2	0.37	0.5	380	50	2800	70	0.81	1	6.1	2.2	2.2	64
712-2	0.55	0.75	380	50	2800	73	0.82	1.4	6.1	2.2	2.3	64
801-2	0.75	1	380	50	2825	75	0.83	1.8	6.1	2.2	2.3	67
802-2	1.1	1.5	380	50	2825	76.2	0.84	2.6	7	2.2	2.3	67
90S-2	1.5	2	380	50	2840	78.5	0.84	3.34	7	2.2	2.3	72
90L-2	2.2	3	380	50	2840	81	0.85	4.69	7	2.2	2.3	72
100L-2	3	4	380	50	2880	82.6	0.87	6.14	7.5	2.2	2.3	76
112M-2	4	5.5	380	50	2890	84.2	0.88	7.83	7.5	2.2	2.3	77
132S1-2	5.5	7.5	380	50	2900	85.7	0.88	10.7	7.5	2.2	2.3	80
132S2-2	7.5	10	380	50	2900	87	0.88	14.2	7.5	2.2	2.3	80
631-4	0.12	0.16	380	50	1400	57	0.72	0.4	4.4	2.1	2.2	52
632-4	0.18	0.25	380	50	1400	60	0.73	0.6	4.4	2.1	2.2	52
711-4	0.25	0.33	380	50	1400	65	0.74	0.8	5.2	2.1	2.2	55
712-4	0.37	0.5	380	50	1400	67	0.75	1.1	5.2	2.1	2.2	55
801-4	0.55	0.75	380	50	1390	71	0.75	1.6	5.2	2.4	2.3	58
802-4	0.75	1	380	50	1390	73	0.76	2	6	2.3	2.3	58
90S-4	1.1	1.5	380	50	1400	76.2	0.77	2.8	6	2.3	2.3	61
90L-4	1.5	2	380	50	1400	78.5	0.79	3.65	6	2.3	2.3	61
100L1-4	2.2	3	380	50	1420	81	0.81	5.05	7	2.3	2.3	64
100L2-4	3	4	380	50	1420	82.6	0.82	6.64	7	2.3	2.3	64
112M-4	4	5.5	380	50	1440	84.2	0.82	8.62	7	2.3	2.3	65
132S-4	5.5	7.5	380	50	1440	85.7	0.83	11.5	7	2.3	2.3	71
132M-4	7.5	10	380	50	1440	87	0.84	15.3	7	2.3	2.3	71
711-6	0.18	0.25	380	50	900	56	0.66	0.8	4	1.9	2	52
712-6	0.25	0.33	380	50	900	59	0.68	0.9	4	1.9	2	52
801-6	0.37	0.5	380	50	900	62	0.7	1.3	4.7	1.9	2	54
802-6	0.55	0.75	380	50	900	65	0.72	1.8	4.7	1.9	2.1	54
90S-6	0.75	1	380	50	910	69	0.72	2.3	5.5	2	2.1	57
90L-6	1.1	1.5	380	50	910	72	0.73	3.2	5.5	2	2.1	57
100L-6	1.5	2	380	50	940	76	0.75	3.9	5.5	2	2.1	61
112M-6	2.2	3	380	50	940	79	0.76	5.6	6.5	2	2.1	65
132S-6	3	4	380	50	960	81	0.76	7.4	6.5	2.1	2.1	69
132M1-6	4	5.5	380	50	960	82	0.76	9.9	6.5	2.1	2.1	69
132M2-6	5.5	7.5	380	50	960	84	0.77	12.9	6.5	2.1	2.1	69
801-8	0.18	0.25	380	50	690	51	0.61	0.9	3.3	1.8	1.9	52
802-8	0.25	0.33	380	50	690	54	0.61	1.2	3.3	1.8	1.9	52
90S-8	0.37	0.5	380	50	690	62	0.61	1.5	4	1.8	1.9	56
90L-8	0.55	0.75	380	50	690	63	0.61	2.2	4	1.8	2	56
100L1-8	0.75	1	380	50	700	71	0.67	2.4	4	1.8	2	59
100L2-8	1.1	1.5	380	50	700	73	0.69	3.3	5	1.8	2	59
112M-8	1.5	2	380	50	700	75	0.69	4.4	5	1.8	2	61
132S-8	2.2	3	380	50	710	78	0.71	6	6	1.8	2	64
132M-8	3	4	380	50	710	79	0.73	7.9	6	1.8	2	64

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
