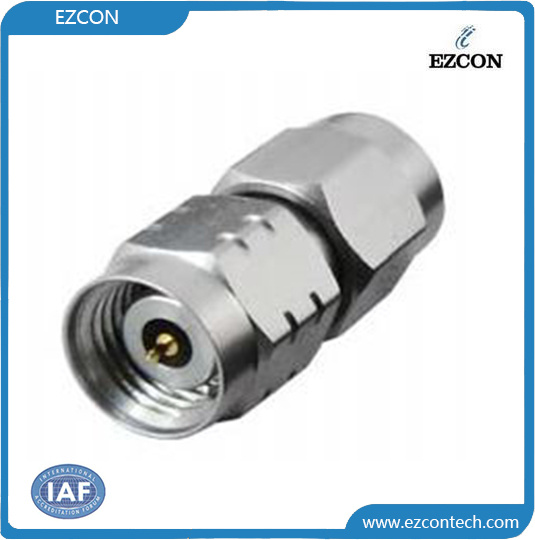

3.5 mm to 2.4 mm RF Coaxial Adapter for Testing

3.5 mm to 2.4 mm RF Coaxial Adapter for Testing
Price: US $ 30.3-35.3/Piece
Trade Terms: FOB,EXW
Min Order: 3/Piece
Pay Type: L/C,T/T,D/P
Prod Model: 3.5 mm to 2.4 mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mating Cycles: >1000 Cycles
Plating Of Pin: Au,Silver
Plating Of Body: Au,Nikel,Ternary,Silver
Type: Generally Coaxial Connector
Coupling Mechanism: Threaded Connection
Medium Pressure: 1000V
Brand: Ezcon

Product Description

3.5/2.4 Precision coaxial connector for microwave applications. The maximum frequency is
26.5GHz.
Design in accordance with: IEEE287™ -2007
Standard materials and finish
Center conductorBeryllium copper, gold plated
InsulatorPEI
Outer conductorStainless steel, Passivated


Electrical Characteristics
Characteristic Impedance50Ω
Frequency rangeDC-26.5GHz

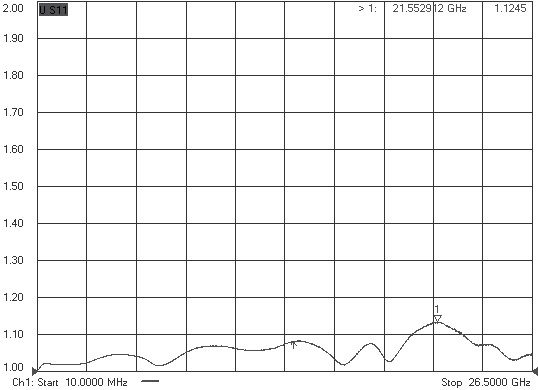

VSWR1.15: 1 max
Insulation resistance5000MΩ Min
Test voltage1000V


Mechanical
Coupling torque1.69N*m max
Mating cycles1000cycles min


Environmental
Temperature range: -55° C~+155° C
Dimensional drawings


EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
