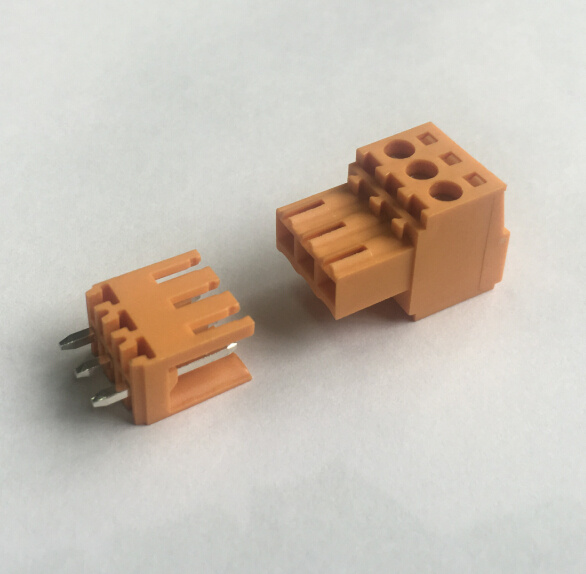

3.5mm Pin Spacing New Terminal Block Connector in Orange Color with out Side Lock

Name: 3.5mm Pin Spacing New Terminal Block Connector in Orange Color with out Side Lock
Brand: all-electronics-online.com
SKU: 828985005
Availability: InStock
Rating: 4.9 (79 reviews)

Price:	US $ 0.46-0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KF2EDGKJ-3.5 KF2EDGJV-3.5
Color:	Orange
Pitch:	3.5mm
Application:	Communication
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Kefa

Product Description

1.Product Specifications

Model: KF2EDGKJ-3.5

Material:
Pitch:3.5mm
Poles:2P-12P
Clips: Stainless Steel
Contact: Tin-plated Brass
Housing: PA66.UL94V-0

Electrical:
Rated Voltage:300V
Rated Current:8A
Withstanding Voltage:AC2000V/1Min
Wire Range:28-12AWG

Machanical:
Temperature Range: -40deg to +105deg
Max. Soldering: +250deg for 5 seconds
Strip Length:9-10mm

Model: KF2EDGJV-3.5

Material:
Pitch:3.5mm
Poles:2P-12P
Pin Header: Tin-plated Brass
Housing: PA66.UL94V-0

Electrical:
Rated Voltage:300V
Rated Current:8A
Withstanding Voltage:AC2000V/1Min

Machanical:
Temperature Range: -40deg to +105deg
Max. Soldering: +250deg for 5 seconds

2.How to order
A. Model & Poles & Color & Screw type & Quantity , & other requirements
B. Sample order is acceptable
C. Product test and custom design is acceptable.

3.Payment
A. T/T, L/C, Western Union,
B. EXW, FOB, CFR, CIF, FCA
C. ≤USD10,000 , 100% deposit ; ≥USD10,000 , 30-50% deposit

4.Packing
A. Plastic bag/case + paper box + out carton, desiccant is acceptable
B. Special package requirements are acceptable

5.Shipping
A. DHL, TNT, UPS, Fedex, ARAMEX, SF, SEA,AIR,other service is acceptable
B. Small order delivered within one week, bulk order within one month

6.Certificate: CE, ROHS

7.Guarantee
A. we guarantee the terminal blocks and connectors we are selling are high quality.
B. You need to inform us by email af first if you intend to replace the products.
C. The reason for replacement has to be offered.
D. Shipping cost of returning is non-refundable.
E. The wrong item you purchased and you intend to return can not be accepted.
F. If you don't receive the cargo on expected date over one week, please contact us immediately.
G. Import duties are responsibility of you.

8. Work Time: Monday-Saturday 7:30-17:00

Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.

We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
