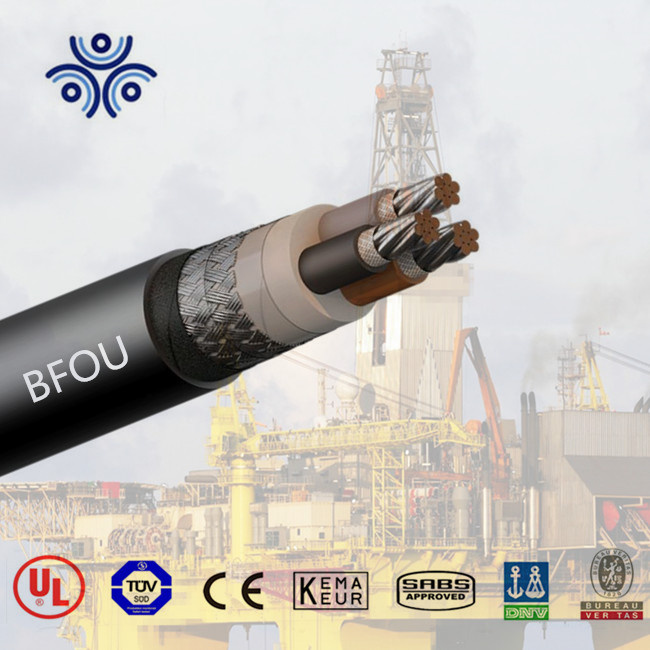

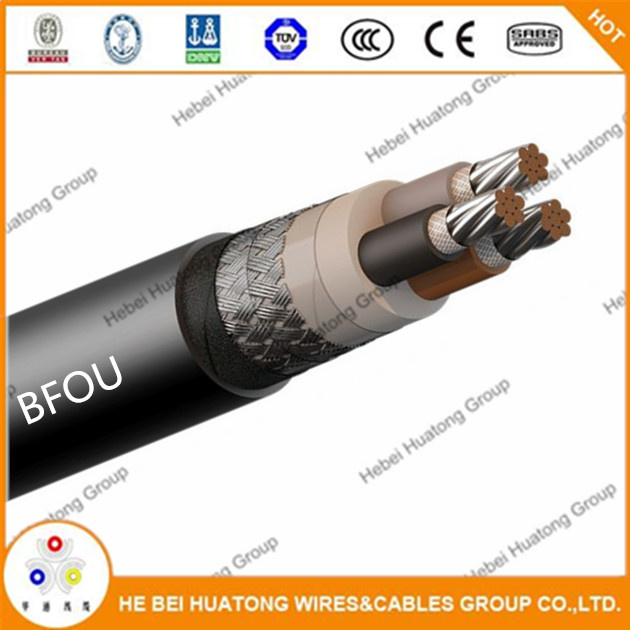

3.6/6kv Flame Retardant Halogen-Free Medium Voltage Mv Cable Mud Resistant Rfou Bfou

Product Description

3.6/6KV  Flame retardant halogen-free medium voltage MV cable Mud resistant RFOU

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT AMOUNT EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

CNAS APPROVAL LABROTARY

Application:

Fixed installation for power, control and lighting in both EX (Zone 0, 1 & 2)- and safe areas, emergency and critical systems where requirement for fire resistance exists. For installation in areas exposed to MUD and drilling/cleaning fluids. Meets the MUD resistance requirement in NEK TS 606:2009.

Standards
IEC 60092-354 - Design
IEC 60228 class 2 - Conductor
IEC 60092-360 - Insulation
IEC 60092-360 - Sheath
IEC 60332-1-2 - Flame Retardant
IEC 60332-3-22 - Flame Retardant
IEC 60754-1,2 - Halogen Free
IEC 61034-1,2 - Low Smoke

Construction:

Core identification power cables

Single core - Black
Two cores - Blue - Brown
Three cores - Brown - Black - Grey
Four cores - Blue - Brown - Black - Grey
Five cores - Blue - Brown - Black - Grey - Black
Seven cores and above - White with black numbers
Two cores + earth (3G) - Yellow/green - Blue - Brown
Three cores + earth (4G) - Yellow/green - Brown - Black - Grey
Four cores + earth (5G) - Yellow/green - Blue - Brown - Black - Grey
G / X in cable description - G = One of the cores are yellow/green - X = no yellow/green core
Core identification - to HD308S2 - and IEC 60445 Ed 5.0 2010-08

1.25 years production experience and 15 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3.OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7.Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

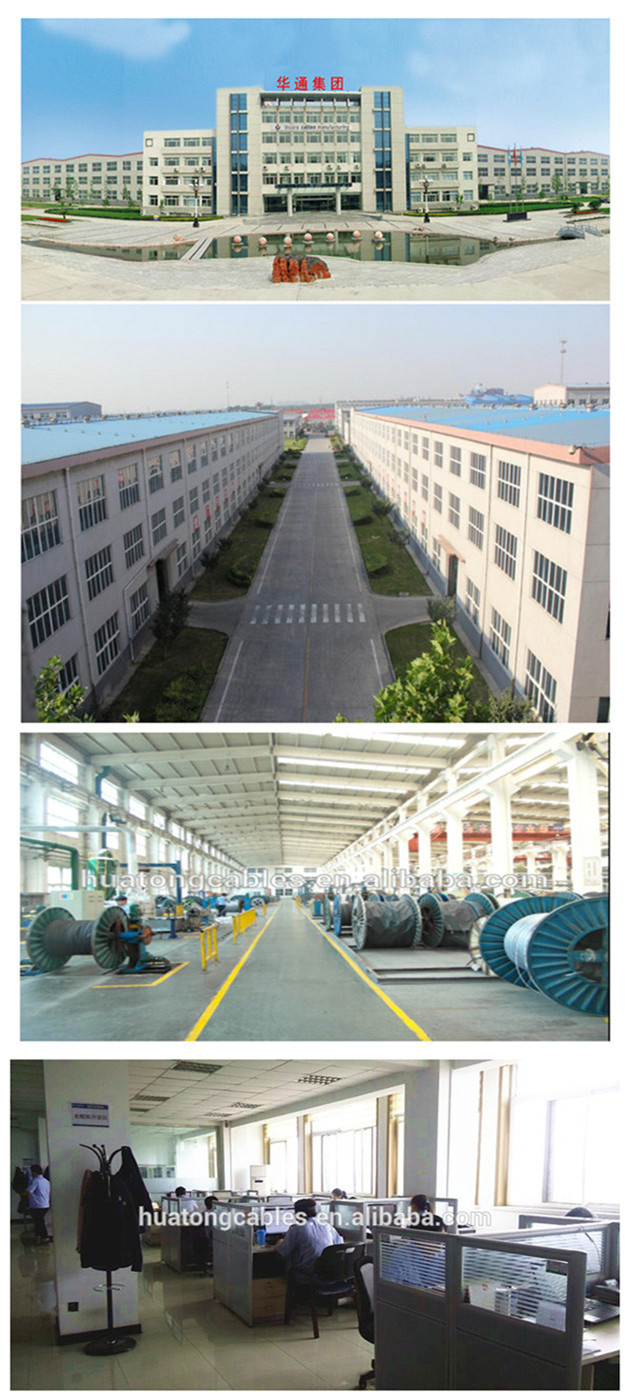

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but thefreight charge should be paid.

3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquirytwo months before the date you would like to get the products at your country.
