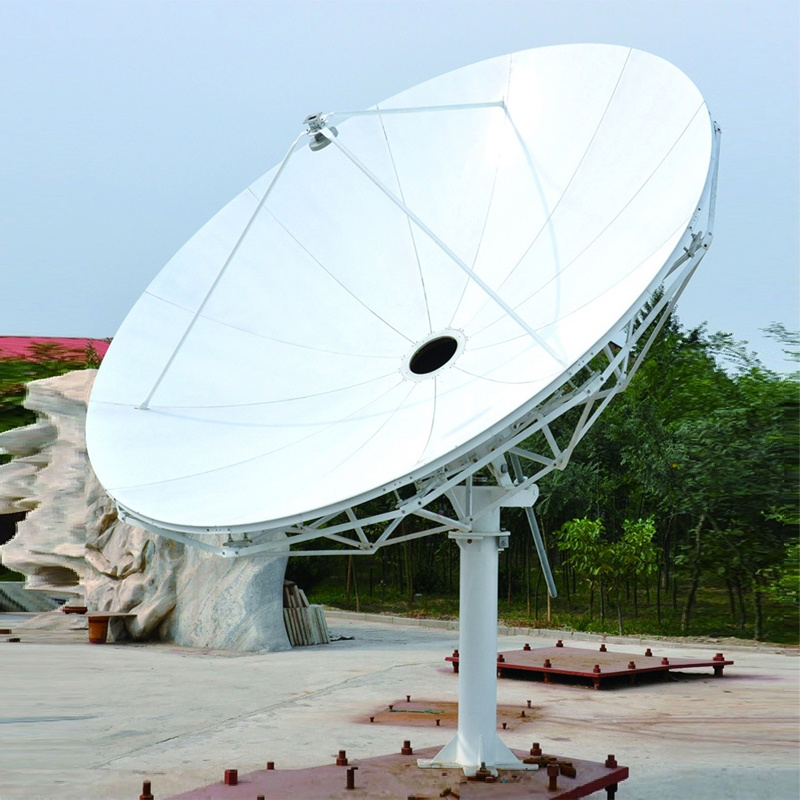

3.7M Rx-Only Satellite Antenna
Model: CHW-RS370-C/Ku0159 (Manual Control)

Features

Feedforward receive-only antenna;
Pole stand, solid structure, easy installation, good stability;
High gain, low sidelobe, high cross-polarization isolation;
C/Ku band optional, linear/circular polarization optional.

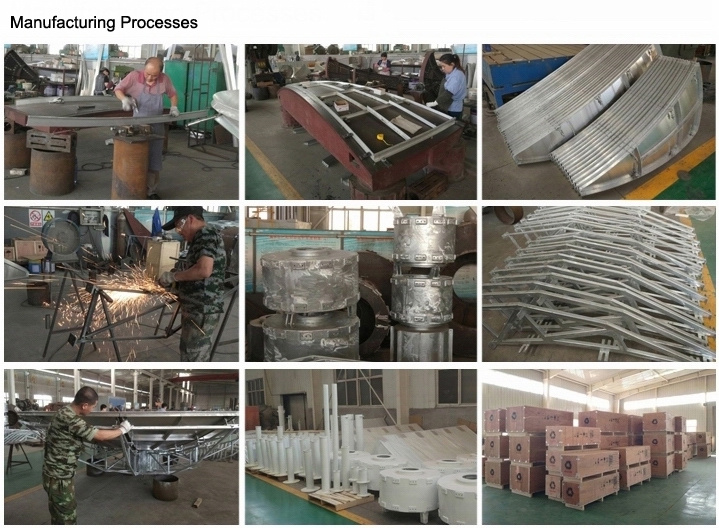

Manufacturing Techniques

The reflector panels are made of high quality aluminum sheets and shaped by stretch-forming method to get smooth and high accuracy surfaces;
Every detail work is concerned to make products perfect, such as fine welding, smooth edge, no cutting burrs, etc.;
All steel parts will be processed by sand blasting first to remove the rust, then zinc galvanized;

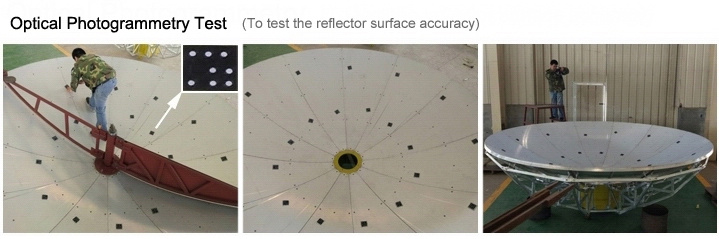

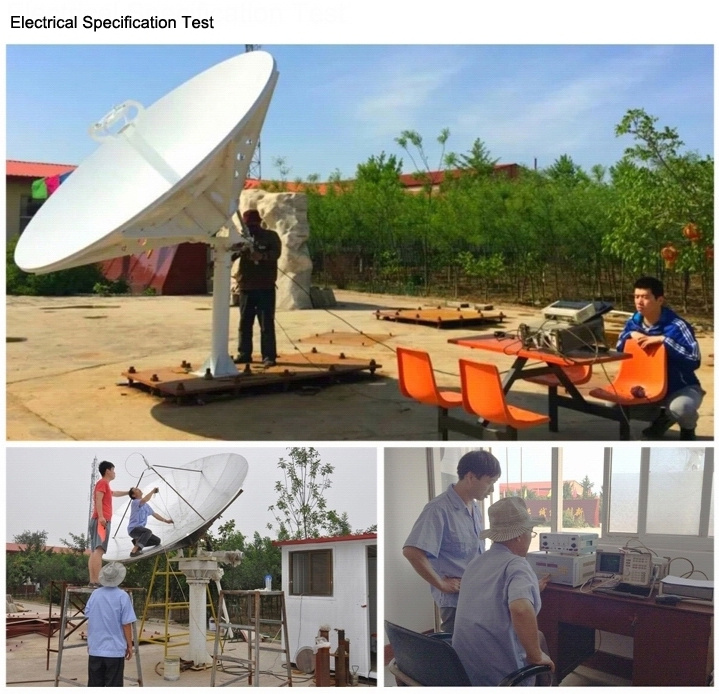

When all parts ready, antennas will be assembled and tested the electrical performance well in factory, then disassembled again for painting and packing;
Before painting, every part will be degreased for better adhesion, and then painted twice. Firstly, the epoxy zinc yellow primer is used to protect the zinc coating, then white paint is used as finish coat for better anti-rust quality.

All these work we have done in factory will ensure the final installation easier and less stress.

Options
LNB, De-icing system, activity / fixed foundation, etc.

Specification

ELECTRICAL SPECIFICATIONS	Items	C Band Receive	Ku Band Receive
	Frequency (GHz)	3.7-4.2	10.95-12.75
	Gain (dB)	≥41.1+20lg(f/3.95)	≥51.69+20lg(f/12.5)
	VSWR	≤1.30:1	≤1.30:1
	Beam Width (-3dB)	≤1.45°	≤0.44°
	Noise Temperature (K, EL 20°)	≤44	≤55
	Feed Interface	CPR-229G	WR-75
	Cross Polarization Isolation	≥23	≥27
	Axial Ratio (dB)	≤3.0	≤3.0
	First Side (dB)	≤-14	≤-14
	Sidelobe	52-10lg(D/λ)-25lg(θ)dBi (100λ/D)°≤θ≤20°	32-25lg(θ)dBi 1°≤θ≤20°
MECHANICAL SPECIFICATIONS	Antenna Type	Feedforward Receive Only Antenna
	Stand Type	Pole Stand
	Drive Mode	Manual
	Azimuth Range	0-360°
	Elevation Range	5°-90°
	Polarization Range	±90°
ENVIRONMENTAL SPECIFICATIONS	Operational Wind Speed	20.8m/s	20.8m/s
	Survival Wind Speed (Locked upwards)	55m/s	55m/s
	Ambient Temperature	-20ºC to 55ºC	-20ºC to 55ºC
	Relative Humidity	5% to 95%	5% to 95%
