| Prod Model: |
401230PL 3.7V 100mAh 3.7V |
| Type: |
Lithium-Polymer Battery Pack |
| Connection Mode: |
Single |
| Standard Voltage: |
3.7V |
| Usage: |
Bluetooth Headset/MP3/MP4 |
Product Description
=Product Information=
Battery with protection board , the two leads, red positive , black negative .
Product Type:041230 401230
Nominal capacity : 100MAH

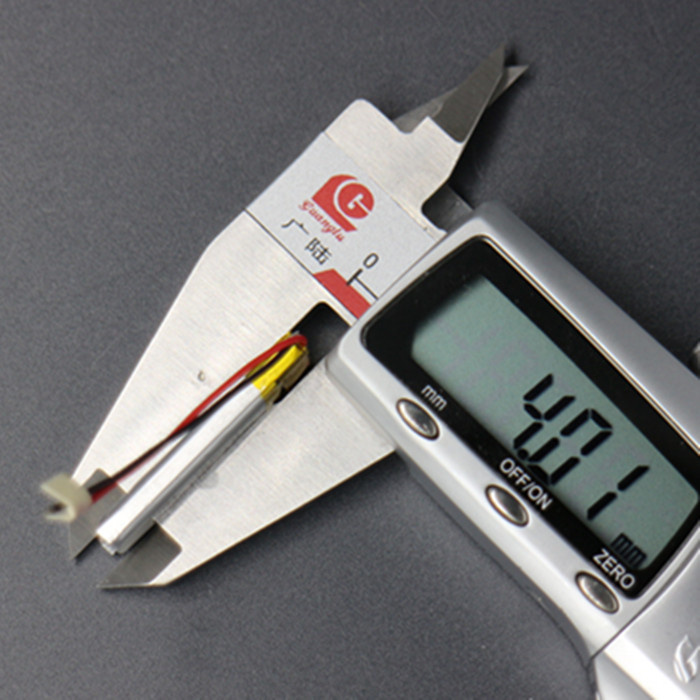

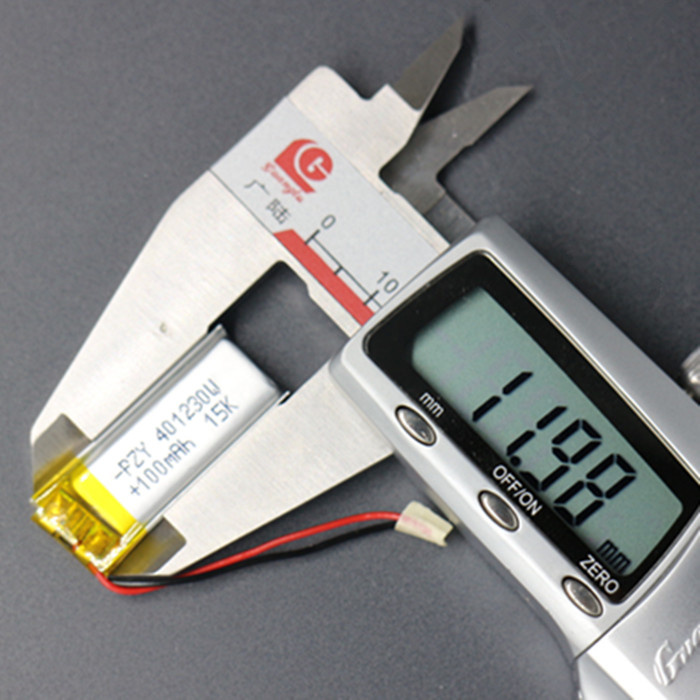

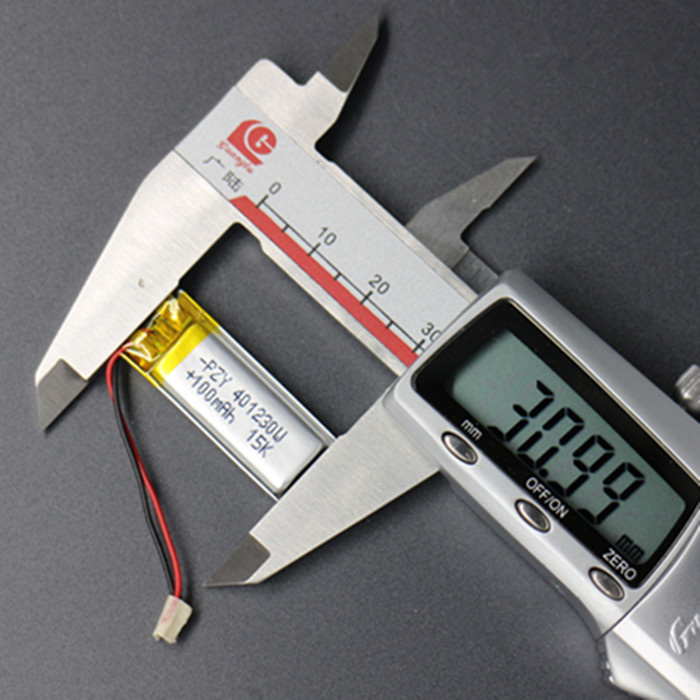

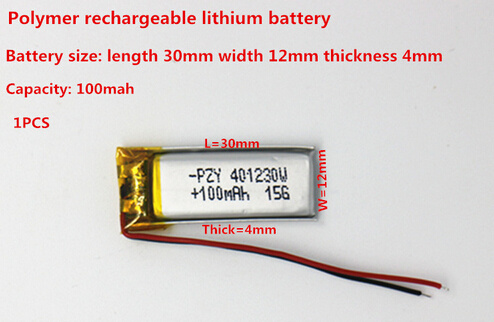

Dimensions : Thickness 4MM(0.2MM) Width 12MM(0.5MM)*Length 30MM(0.5MM)
Rated voltage:3 .7V
Charging voltage:4.2V
Charging temperature:0 C ~ 45 C
Discharge temperature:-20 C ~ +60 C
Storage temperature :-20 C ~ +35 C
Charging current: Standard charge:0.5C, Quick charge :1.0C
Standard charging method :0.5C CC( Constant current ) charge to4.25V, ThenCV( Constant4.2V) Charge till charge current 0.05C
Maximum charge current:1C
Maximum discharge current:1C
ProtectionICParameter: Overcharge protection voltage4.20V 0.05V, Over- discharge protection voltage2.7V 0.1V,Xu maximum charge current 2A.
Battery Specification shopping guide:
Lithium polymer battery is the size of the model , for example: model is042030Or402030Which represents the thickness of the battery4mm, Cell width20mmBattery length30mm. When parents who buy batteries , battery Coding according to the original model to select the size , battery -free Coding section , the amount of cell thickness , width and length to choose a new battery with Oh .
Should Use:
Mobile power , car navigation ,MP3, MP4, MP5, Card speakers, wireless mouse , cell phoneMilletDisplayPSPBuilt-in battery peripheral power supply , tablet PCs , mobileDVD, Laptop battery , wireless monitoring devices, Medical equipment, Various instruments ,LEDLighting, traffic signs , portable small appliances, variousDIYInstrumentation,Metal detectors, and other digital type battery field .
The main features:
1.Various sizes : Type and capacity options,Applicability
2.Quality Assurance: UseAProduct batteries,High Capacity,Low internal resistance
3.Stable performance: Long cycle life:Continuous charge and discharge500After time , the battery capacity is not less than the rated capacity80% .
4.No memory effect: any time to charge and discharge
5.Safe: Built-in circuit protection board,A short circuit , overcharge , over discharge, under shock, vibration, acupuncture , heat, and other states no fire, no explosion and so on.
Precautions:
Battery Handling Precautions: prohibit the use of a sharp object to touch the foil packaging materials, not bend the top edge, not open or destroy the hems , pole bending ears fragile ban prohibiting fallImpactBend the battery at any time prohibit the use of short-circuit or reverse polarity battery .
Other matters : to prevent a short circuit within the battery pack strictly prohibited remove the battery , the battery in a fire is prohibited , prohibited the battery immersed in liquid ( such as: water, drinks , juice, coffee ) , they shall not replace the battery , prohibit the use of a damaged battery .
Shenzhen Wanhong Technology Co., Ltd is a lithium batteries high-tech enterprise, professional on R&D, producing. Our company obtained independent import & export rights and general taxpayer qualification. Front-end application is positioned as World Power development direction. Offering"Quality, Efficient, Safety, Eco-friendly" Li-ion battery products is our mission. Continued research and innovation, competitive cost and manufacturing advantages already help Wanhong been many well-known enterprises lithium battery supplier.
Shenzhen Wanhong own an excellent engineer team, engaged in lithium batteries for many years. Our team have a lots of experiences on hardware and software R & D, always pay attention to the latest development of lithium batteries and latest applications.

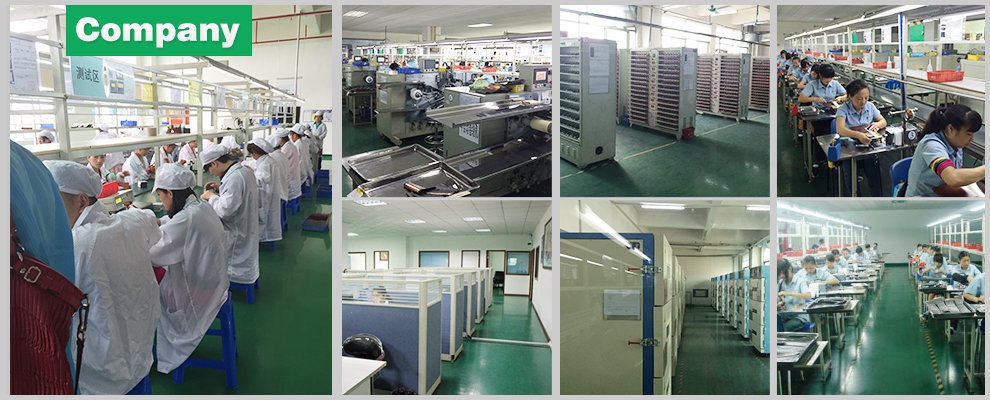

Wanhong operate strictly according to ISO9001-2008 Quality Management System. The workshop is equipped with advanced production equipment and world-class testing instruments. Also has professional manufacturing and quality controlling staff team. They make batteries strictly on each step, optimize and improve the manufacturing technologies to ensure providing the customers with world-class products.
Wanhong's focus and professional spirit is helping us to provide a world-class environmentally energy and create green, low-carbon and clean home through constant effort and technology innovation.
