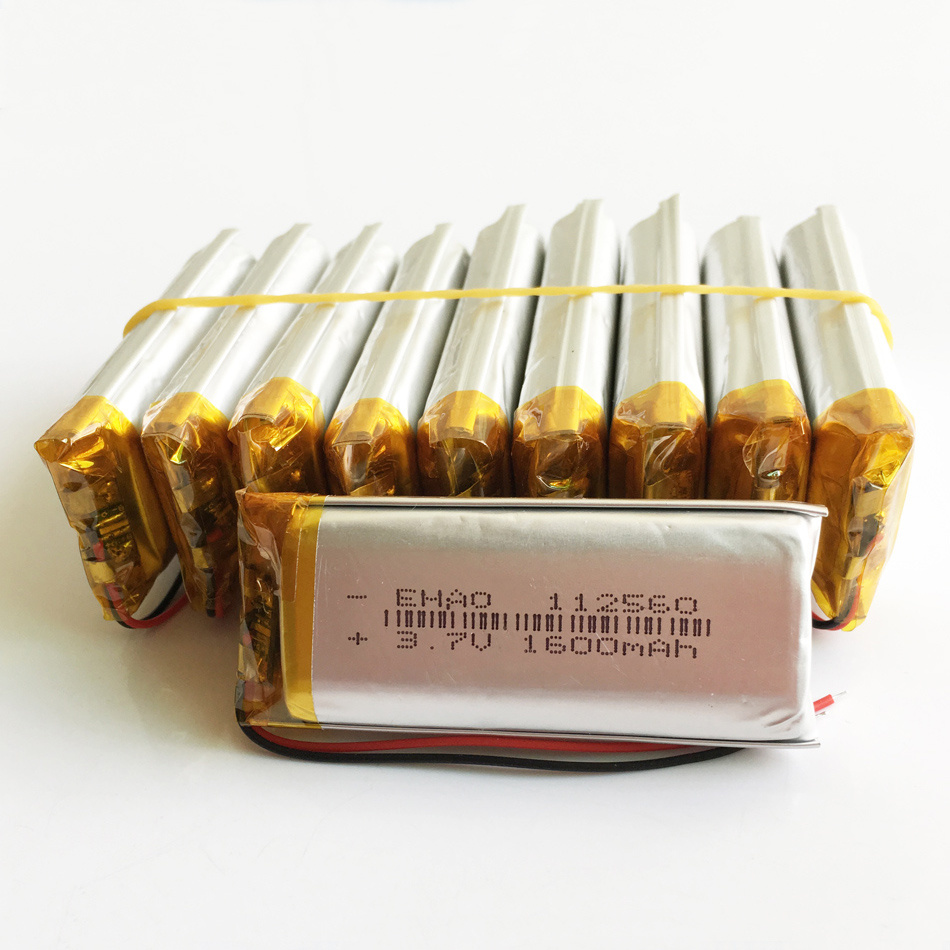

3.7V 1600mAh 112560pl Lithium Polymer Rechargeable Battery

Prod Model:	112560 3.7V 1600mAh
Type:	Lithium-Polymer Battery Pack
Connection Mode:	3.7V
Rated Capacity:	1600mAh
Standard Voltage:	3.7V
Usage:	E-book Mobile Phone Power Bank Tablet PC

Product Description

Item specifics
Brand Name:Wanhong
Type:Li-polymer
Set Type:Batteries Only
Model Number:112560
Nominal Capacity:1600mAh
Size:11x25x60mm
Place of Origin:Guangdong, China (Mainland)
Function:Rechargeable battery
Nominal Voltage:3.7V
Model:112560
Nominal Capacity:1600mAh
Weight:30g
size:thick=11mm, width=25mm,length=60mm
use for:mobile phone,power bank,PAD...
is_customized:Yes
Product Description
Polymer Lithium Li-ion Battery Power Bank Application
1.Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5.Illuminate devices: miner lamp, searchlight.
6.Others: toys, models
Features:
1> 100% brand new
2> High quality and high capacity!
3> Built-in protection circuit PCM for prevent over charging or over discharging
4> Size:11mm(H)*25mm(W)*60mm(L)
5> Rating: DC3.7V 1600mAh

Charging current: standard charging, fast charging: 1.0C: 0.5C
Standard charging method: 0.5C CC (constant current) charge to 4.25V,
                          then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.
The maximum charge current: 1C
Maximum discharge current: 1C
Discharge cut-off voltage: 2.75V
The discharge temperature: -20 degrees C~+60 degrees C
Charging time: 3-7hrs (standard); 3hrs (fast)
Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection
It can be recharged repeatedly
Built-in protection circuit PCM for prevent over charging or over discharging.
