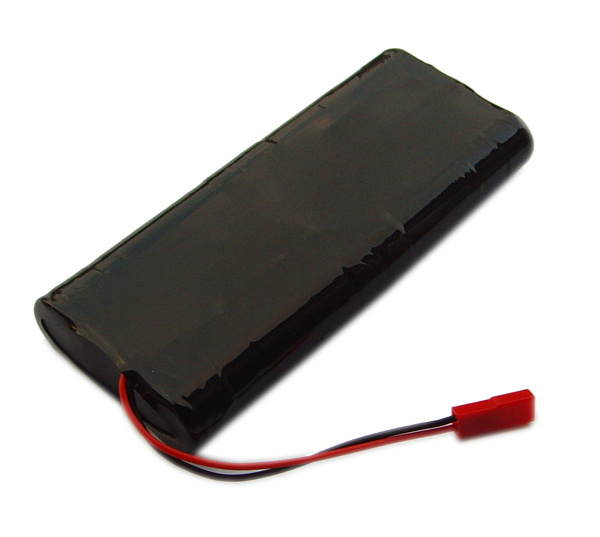

3.7V 17.6ah Li-ion Battery Pack

Name: 3.7V 17.6ah Li-ion Battery Pack
Brand: all-electronics-online.com
SKU: 786215385
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP0037-0176K-L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	18650 Battery
Voltage:	3.7V
Capacity:	17.6ah
Delivery Date:	15days
Warranty:	One Year
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series Connection

Product Description

Li-ion Battery Pack 3.7V 17.6Ah

Product Description

1S8P 3.7V 17.6Ah Lifepo4 battery pack

1.Cycle life more than 500
2.Nominal capacity:17.6Ah
3.Discharge cutoff voltage:2.5V

4.Environmental protection battery

Our Service

1. Replying your inquiry in 24 working hours.

2. Customized is welcome. Accepting OEM/ODM.

3. Professional battery factory ang technical engineers guarrantee the quality of the products.

4. Fast delivery for we have cooperated with many express companies such as DHL, FedEx, TNT and so on.

5. Well trained staffs offer first class service.

6. Welcome your suggestions.

Detail Description

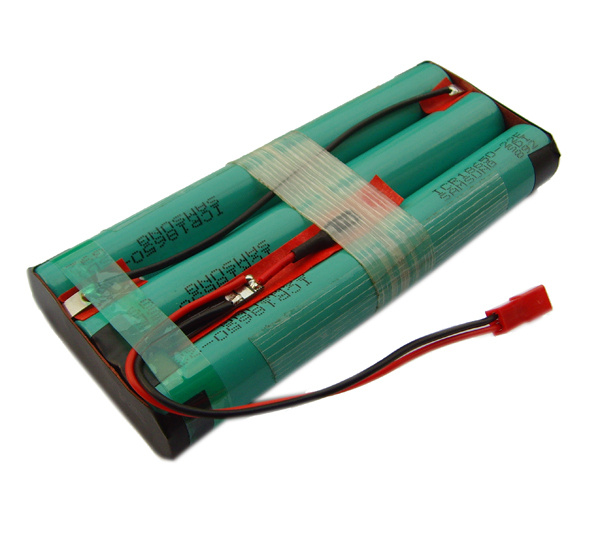

18650/1S8P Li-ion Battery Pack 3.7V/17.6Ah
Model: LP0037-0176K-L
Item	Specification		Remark
Nominal capacity	2200mAh		SAMSUNG Cell: 18650-22F
Nominal voltage	3.7V		3.7V / 1Cell
Charging voltage	4.2V±0.05V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	2000mA/5hour,3000mA/3.5hour		Battery capacity÷charging current×1.5
charging current	8.8A(0.5C)		0 ~ +40ºC
Maximum charging current	17.6A(1C)		0 ~ +40ºC
Continuous discharge current	17.6A(1C)		-20 ~ +60ºC
Discharge cutoff voltage	2.5V		2.5V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤200mΩ		AC Impedance 1kHz
Cycle life	≥500
Operating temperature	Standard Charge	0 ~ +40ºC
	Standard Discharge	-20 ~ +60ºC
Outline dimension	L133W74T20mm		Length x wide x height
Pre-wired			Red = Positive,Black = Negative
Protection Circuit Module:PCM-Li01S5-015
Maximal continuous charging current	5A
Maximal continuous Discharging current	5A
Over-charge detection voltage	4.25 V ±0.025V		single cell
Over-charge release voltage	4.05±0.05V		single cell
Over-charge detection delay time	0.7S-1.3S		single cell
Over-discharge detection voltage	2.40V±0.062V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	89-167mS		single cell
Over-current detection	12±2A		can adjust
Over-current delay time	6.7ms-13.9ms
18650/1S8P Li-ion Battery pack

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
