3.7V 180mAh 501235 Lithium Polymer Battery for Mobile Electronic Part

Name: 3.7V 180mAh 501235 Lithium Polymer Battery for Mobile Electronic Part
Brand: all-electronics-online.com
SKU: 817271325
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	US $ 0.5-1.5/Piece
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3.7V 180mAh battery 501235
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Single
Standard Voltage:	3.7V
Usage:	MP3 MP4 MP5 GPS PSP Mobile Electronic Part

Product Description

Item specifics
Brand Name:Wanhong
Type:Li-polymer
Set Type:Batteries Only
Nominal Capacity:<700mAh
Bundle:Bundle 1
Model Number:501235
Size:5x12x35mm
Voltage:3.7V
Feature:Rechargeable battery
Condition:100% Brand new
Place of Origin:China
Nominal Capacity:180mAh
use for:MP3 MP4 bluetooth headphone headset
is_customized:Yes
Battery weight:3g/pcs
Product Description
Polymer Lithium Li-ion Battery Power Bank Application

1.Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5.Illuminate devices: miner lamp, searchlight.100% brand new
2> High quality and high capacity!
3> Built-in protection circuit PCM for prevent over charging or over discharging

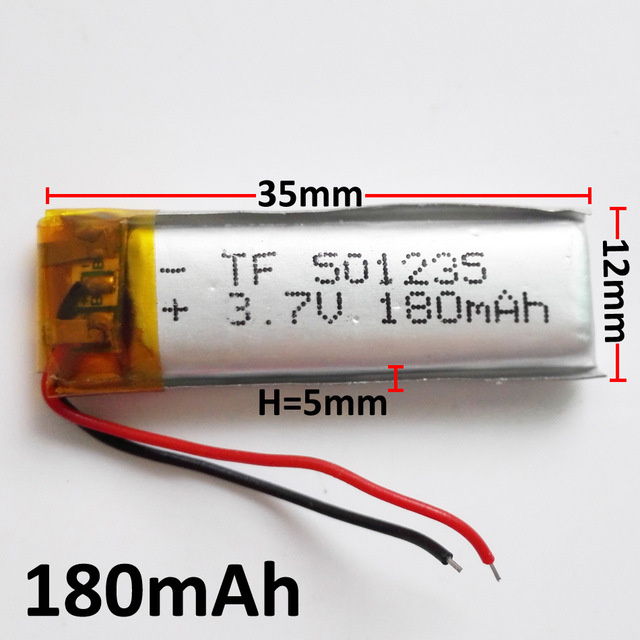

4> Size: 5mm(H)*12mm(W)*35mm(L)
5> Rating: DC3.7V 180mAh

Charging current: standard charging, fast charging: 1.0C: 0.5C
Standard charging method: 0.5C CC (constant current) charge to 4.25V,
then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.
The maximum charge current: 1C
Maximum discharge current: 1C
Discharge cut-off voltage: 2.75V
The discharge temperature: -20 degrees C~+60 degrees C
Charging time: 3-7hrs (standard); 3hrs (fast)
Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection
It can be recharged repeatedly
Built-in protection circuit PCM for prevent over charging or over discharging.

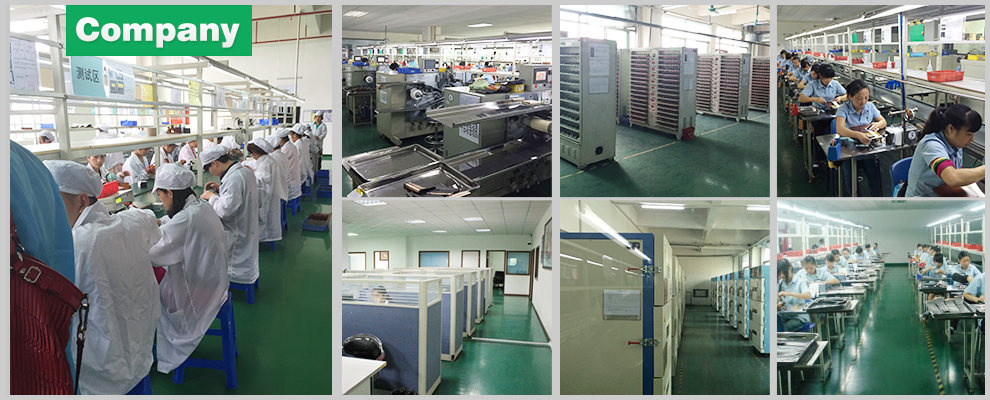

Shenzhen Wanhong Technology Co., Ltd is a lithium batteries high-tech enterprise, professional on R&D, producing. Our company obtained independent import & export rights and general taxpayer qualification. Front-end application is positioned as World Power development direction. Offering"Quality, Efficient, Safety, Eco-friendly" Li-ion battery products is our mission. Continued research and innovation, competitive cost and manufacturing advantages already help Wanhong been many well-known enterprises lithium battery supplier.

Shenzhen Wanhong own an excellent engineer team, engaged in lithium batteries for many years. Our team have a lots of experiences on hardware and software R & D, always pay attention to the latest development of lithium batteries and latest applications.

Wanhong operate strictly according to ISO9001-2008 Quality Management System. The workshop is equipped with advanced production equipment and world-class testing instruments. Also has professional manufacturing and quality controlling staff team. They make batteries strictly on each step, optimize and improve the manufacturing technologies to ensure providing the customers with world-class products.

Wanhong's focus and professional spirit is helping us to provide a world-class environmentally energy and create green, low-carbon and clean home through constant effort and technology innovation.
