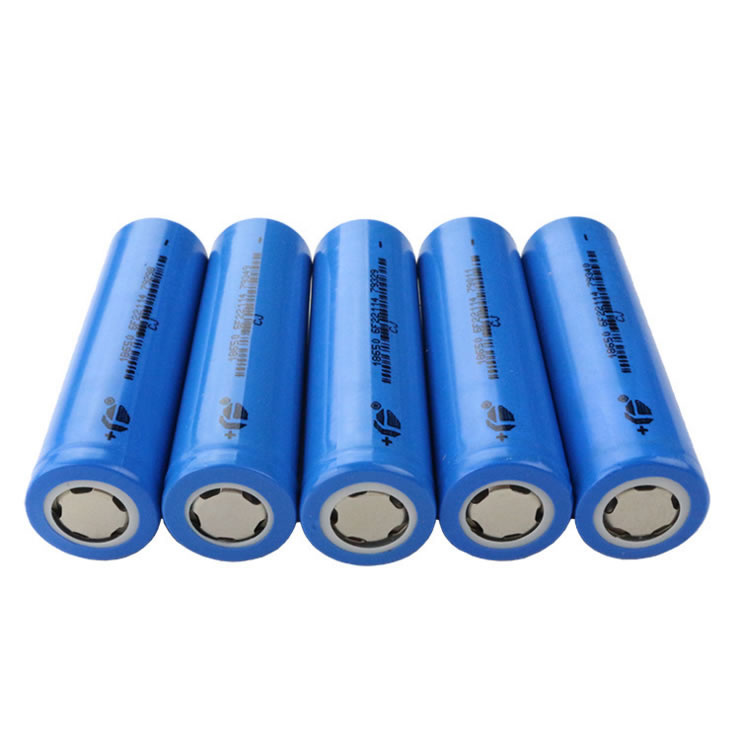

3.7V 2200mAh 18650 Cylinder Rechargeable Lithium Ion Battery for Consumer Electronics

Name: 3.7V 2200mAh 18650 Cylinder Rechargeable Lithium Ion Battery for Consumer Electronics
Brand: all-electronics-online.com
SKU: 730547802
Availability: InStock
Rating: 4.3 (24 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	l Digital 2200mAh 18650 3.7V
Capacity:	3100mAh
Type:	Lithium-Ion Batteries
Usage:	Lighting
Discharge Rate:	High Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Nominal Voltage:	3.6V
Electrolyte:	Lithium Ion

Product Description

Overview
Quick Details
Place of Origin:Guangdong, China (Mainland)
Brand Name:FST
Model Number:ICR18650
Type:Li-Ion
Nominal Voltage:3.7V
Size:18.3*65.5mm
Nominal Capacity:2200mAh
Certificate:CE, ROHS, KC, BIS, UL, MSDS, UN38.3, PSE, CB, WERCS etc
Usage:Laptop, Power Bank, Flashlight, Digital Products, Consumer Electronics
Raw Material:LiNiCoMnO2 (NCM)
Warranty:1 Year from the Date of Shipment
Safety Performance:Built-in PTC Anti-Explosion Valve Protection
Working Temperature:-20~65ºC
Energy Density:457Wh / L 172Wh / KG
Cycle life:More than 500 Times Under 0.2C/0.2C Charging Discharging
Product name:Digital 2200mAh 18650 3.7V Cylinder Rechargeable Lithium Ion Battery
Packaging & Delivery
Packaging Details
Display pack, Plastic pack, Industrial pack, White pack, Gift box pack, etc. as per YOUR REQUIREMENTS
Delivery Time
3-5 working days when in stock, 7-9 working days when not
Hot Sell Digital 2200mAh 18650 3.7V Cylinder Rechargeable Lithium Ion Battery for Consumer Electronics

NO.	Items	Specifications
1	Charge voltage	4.2V
2	Nominal voltage	3.7V
3	Nominal capacity	2200mAh @ 0.2C Discharge
4	Charge current	Standard Charging: 0.2C Rapid charge: 0.5C
5	Standard Charging method	0.2C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.02C
6	Charging time	Standard Charging:6.0hours(Ref.) Rapid charge: 2hours(Ref.)
7	Max.charge current	1.0C
8	Max.discharge current	2.0C
9	Discharge cut-off voltage	2.75V
10	Operating temperature	Charging: 0ºC~45ºC Discharging: -20ºC~65ºC
11	Storage temperature	-10ºC~ +45ºC
12	Battery Weight	Approx:46g
13	Battery Dimension	Height: 65.5mm Max (not including tabs) Diameter: 18.3mm Max

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
