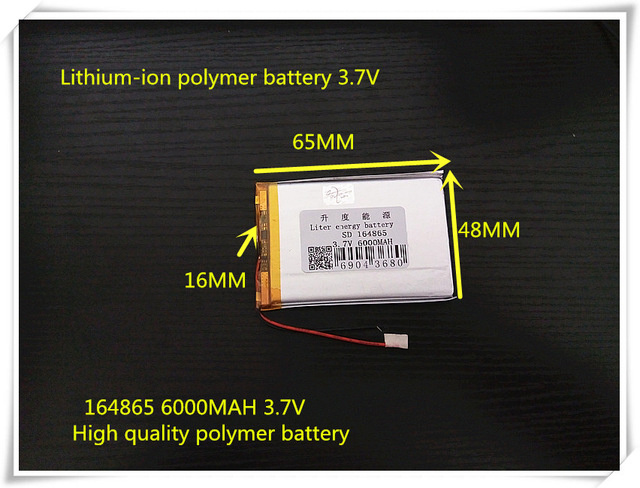

3.7V 6000mAh 164865 Polymer Lithium Ion Battery

Prod Model:	3.7V 6000mAH 164865
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Single
Rated Capacity:	6000mAh
Standard Voltage:	3.7V
Usage:	Tablet PC GPS Power Bank MP4 MP3

Product Description

Item specifics
Brand Name:Wanhong battery
Rechargeable:Yes
Package:Yes
Model Number:164865
Use:MP3 / MP4 Player
Type:Standard Battery
Battery Capacity:6000mAH
Nominal Capacity:12000mAh
Size:Prismatic
Type:Li-polymer
Set Type:Batteries Only
Battery Number:1
Product Description
Specification :

No.	Description	Specification	Remark
1	Battery Model	164865	Customized
2	Minimal Capacity	6000mAH	0.2C
3	Rated Capacity	6000mAH	0.2C
4	Nominal Voltage	3.7v
5	Over-charge potect voltage	4.281.0.v
6	Over discharge protect voltage	4.281.0.v
7	storage Temperature	-535c	one year
8	Max continue discharge current	1.0C
9	Max charge current	1.0C

The battery is provided with a protective plate, which has the functions of preventing over charging, over discharging, over current, short circuit, etc..
This product is mainly applicable to mobile emergency power supply, MP3, mobile speakers, microphone, Navigator (GPS), mobile phone, toys and other electronic devices.
Protection board parameters
Working current: 1.5A
Current limiting protection: 2~3A
Over charge limit: 4.2+/-0.05V
Over discharge limit pressure: 2.9+/-0.10V
Keep in storage
In order to ensure the battery to maintain the capacity level, the proposed battery and battery pack-20~35CStorage, low humidity, non corrosive gas conditions
Battery to avoid the high temperature or high humidity storage, otherwise it will lead to battery leakage, rust, and low capacity.
Long term storage will likely lead to a reduction in the capacity of the battery and battery pack, and the need for1-3A charge/Discharge cycle to achieve maximum discharge capacity.
The battery should be charged and discharged once in three months.
Warning:
Reverse charge is not allowed, the battery should be connected according to polarity accurately, and can not be reversed.
Short circuit is not allowed, otherwise it will result in permanent damage.
The battery can not be used in the limit conditions, such as: limit temperature, deep cycle, extreme over charging and over discharge.
Store the battery in a cool, dry place. If a large number of batteries are stored or shipped, the battery must be put in place first.
Do not directly to the battery solder.
If the battery appears noise, high temperature, leakage and other abnormal situation, please immediately stop using.
Do not put into fire or try to disassemble the battery. The battery may burn or produce harmful substances.
It is not permitted to use old batteries or use half of the battery with the new battery, otherwise it will have a discharge.
Outer casing and outer jacket tube for removing the battery.
The battery is not allowed to be put in the water.
Matters needing attention
Battery should be fully charged before use.
The charging method according to technical specifications of our.
Charge using the corresponding charger.
The battery should avoid the use of sealed, should provide the appropriate ventilation device, otherwise the battery may produce hydrogen, in the case of ignition point will cause the explosion.
Don\\\'t try to be battery separation or bear extrusion and collision, may cause the battery fever, burning from the alkaline electrolyte will damage the skin and eyes can also eat clothes.
The battery should be kept away from the child, if swallowed, immediately contact the doctor to deal with.
When the battery is not in use, it should be removed from the device.
When the first use of a new battery or long-term storage use, before the need to be filled with electricity.
When the battery is hot, do not touch it until it cools down.
When the battery is used, it is found that the energy should be turned off when the energy is decreased, so as to avoid over discharge.
