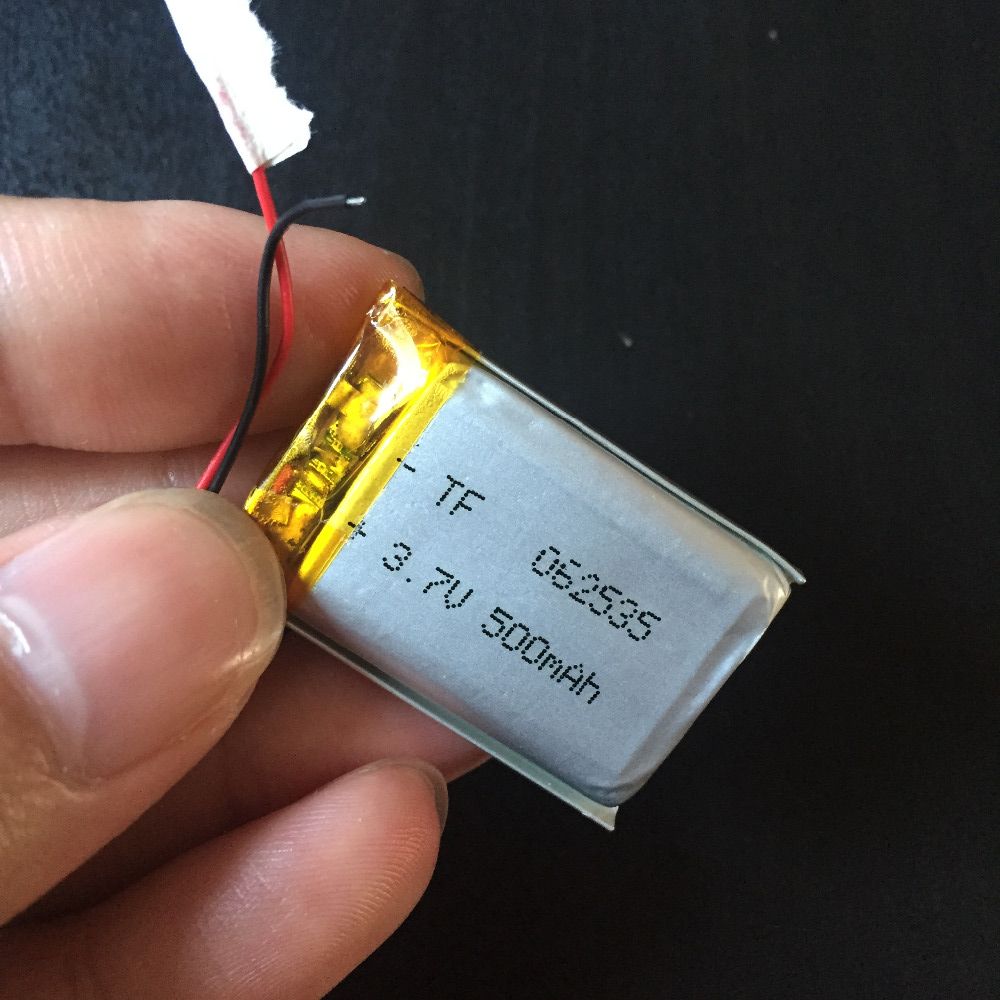

3.7V Lithium Polymer Core 582535 602535 Tachograph Common Rechargeable Batteries

Product Description

Battery with a protective plate (to prevent overcharge / over discharge / short circuit / overcurrent protection)

Battery Type: lithium polymer battery / rechargeable battery

Voltage: The nominal voltage 3.7V,

Full voltage: 4.2V

Capacity: 470mAh (only a lot more capacity value)

Battery Size: 5.33mmthickWide 24.47mm Long 35.38mm

Battery Lead: 0.1 square red and black line, the line length of about 3-5CM, batches according to customer requirements lead to other plug or cable.

Inside with a protective plate parameters: charging cut-off voltage of 4.25V, discharge cut-off voltage 2.75V, the maximum current allowed 0.5A, with overcharge, over discharge, short circuit protection board.

For other sizes of batteries, please contact customer service, battery size diversification, have the cash!

Main features:

1, High discharge platform, the average voltage exceeds3.7V, Low resistance, fast charge time

2, Good security, with over charge protection, over-discharge protection, overcurrent protection

3ProtectICTechnical parameters: Overcharge protection voltage4.20V 0.05V

4, Over-discharge protection voltage2.7V 0.1V

5Overcurrent protection3.0 1.0A (2.7V ~ 4.25V)

6Discharge temperature:-20 C ~ + 60 C

7ProtectICParameters: Overcharge protection voltage4.20V 0.05V, Over-discharge protection voltage2.7V 0.1V
8, High voltage,High energy density
9, Long cycle life,Safe
10, Shape, size, then the Spirit
11, Self-discharge, pollution

12Application:MP3 / MP4, Bluetooth/ GPRS / GPSP,PDA, Small toys,Digital cameras and video camera and other digital products.

The main features:

1.Various sizes: Type and capacity options,Applicability

2.Quality assurance: AdoptionAProduct batteries,High capacity,Low internal resistance

3.Stable performance: Long cycle life:Continuous discharge500After the second, the battery capacity of not less than the rated capacity80%.

4.No memory effect: at any time to charge and discharge the

5.Safe: Built-in circuit protection board s,It has a short circuit, overcharge, over discharge, under shock, vibration, acupuncture, heat, and other state no fire, no explosion and so on.

NOTES:

Battery Handling Precautions: Do not use a s object to touch the aluminum foil packaging materials, Do not bend the top edge, prohibit open or destroy folding, bending tabs fragile ban prohibiting fallAttackBent battery at any time prohibit the use of a short circuit or reverse polarity battery.

Other matters: to prevent a short circuit within the battery packaging, prohibited removing the battery, the battery into the fire is prohibited, prohibited the battery immersed in liquid (such as: water, soft drinks, juices, coffee), can not replace the battery yourself, prohibit the use of damaged batteries .
