3/8" Communication Coaxial Feeder RF Cable
| Price: |
US $ 0.5-2.5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HCAAY(Z)-50-8 |
| Color: |
Black |
| Inner Conductor: |
CCA |
| Outer Conductor: |
Copper |
| Weight: |
0.14 Kg/M |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Type: |
Cat 1 |
| Certification: |
VDE |
| Model: |
Hcahy(Z)-50-8 |
| Brand: |
OEM |
Product Description
3/8" Coaxial Communication RF Cable
Company profile
Shanghai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, engineering service and trading.
As a National wide wire & cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field.Xiaowei also supply VHF vabor phone, WLAN system.
Xiaowei have advance manufacturing product line, standard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, Xiaowei extend the service to the international trading.
Structure
1. Inner conductor material : Copper-clad Aluminum Wire, Solid bare copper, corrugated copper tube
2. Dielectric : FPE
3. Outer conductor material : Corrugated copper
4. Jacket : PE or LSZH PE
Characteristics & Applications
Big transmission power, low transmission attenuation, good humidity resistance. Main used in telecommunication, microwave and radar system.
Operation temperatures : - 55 ~ +85 degree
Installation temperatures : -20 ~ +60 degree
Storage temperatures : -55 ~ +85 degree
Structure and dimensions |
Inner conductor | |
Outer conductor | Copper |
O.D. of inner conductor (normal) | 3.1 mm |
O.D. of outer conductor (normal) | 9.5mm |
O.D. of jacket (normal) | 11.0mm |
| Cable weight | 0.14 kg/m |
Mechanical Properties |
Minimum Bending Radius | 25 mm |
Number of Bends, Min | 15 |
Tensile strength | 41 kg |
Attenuation and Average Power |
| Attenuation (normal/max.) dB/100m | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
Note: The maximum attenuation above is according to YD/T 1092-2004, it can be adjusted after both-side permitted. |

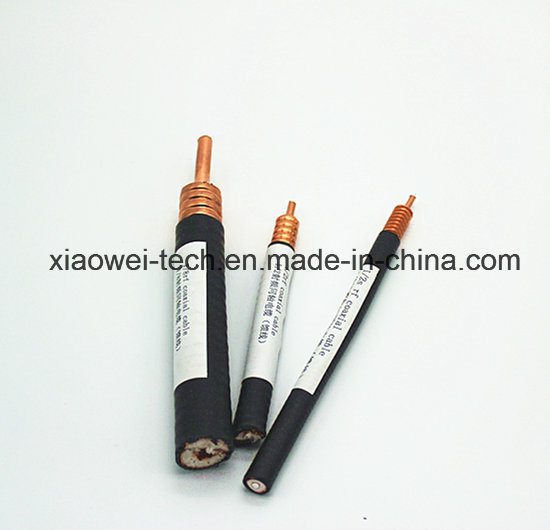

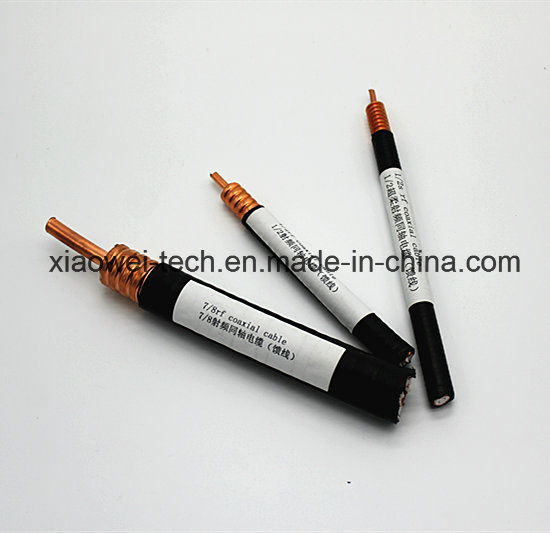

Detailed Images
Packing by Reels
The wood or plywood reels will be used, when the length of cable is more than 300m. The dimensions of these reels are shown in the following table1.
Reel Type | Flange dia (mm) | Max. Width (mm) |
C075 | 750 | 490 |
C085 | 850 | 490 |
Packing by Paper Boxes
The paper boxes will be used, when the length of cable isn't more than 300m. The dimensions of these boxes are shown in the following table2.
Reel Type | Length (mm) | Width (mm) | High (mm) |
CB06026 | 600 | 600 | 260 |
CB06526 | 650 | 650 | 260 |
