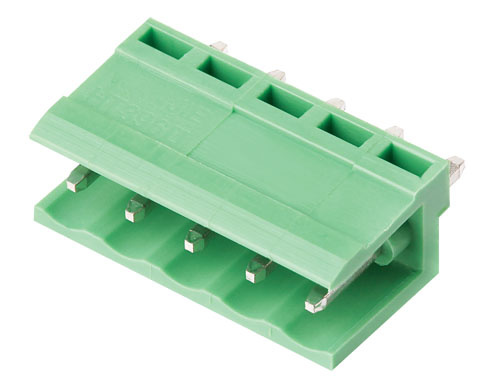

3.96mm Pitch 5pin Pluggable Type Terminal Block

3.96mm Pitch 5pin Pluggable Type Terminal Block
Price: US $ 0.0073-0.0075/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Piece
Pay Type: L/C,T/T
Prod Model: HT396V
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch: 3.96mm
Application: PCB
Environmental Protection: Resistance to Environmental
Connection Mode: In-Line Connector
Shape: Rectangle
Type: Electric Connector
Brand: Wanjie

Product Description

We have passed the ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, andC US.
An excellent management team,Fast delivery time,High quality.

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminalblocks, including screw, screwless, pluggable, feed through, barrier, din railterminal blocks, electronic housing, and solderless breadboard.

Material
Pin headerBrass, Sn Plated
HousingPA66, UL94V-0



Electrical
Standard                 UL       IEC
Rated Voltage              300V      250V
Rated Current                8A       15A
     Pitch
                                3.96mm

Contact Resistance
                                 20mΩ
Insulation Resistance    500mΩ /DC500V
Withstanding Voltage    AC2000V/1Min
Mechanical
Temp Range-40º C ~ +105º C
Max. Soldering+250º C, for 5 sec


  For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.
Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
