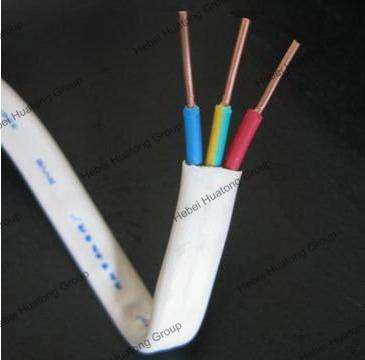

3 Core 2.5mm PVC Insulated PVC Sheathed Flat Wire Cable
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BVVB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rate Votlage: |
300/500V |
| Core Color: |
Blue, Brown, Yellow, Red, Black |
| Sheath Color: |
Black, White, Orange, Grey |
| Cores: |
2,3,4,5 Cores |
| Certificate: |
CE,CCC, ISO |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
IEC |
| Conductor Type: |
Flexible Wire |
| Application: |
General Purpose Indoor and Outdoor, Electrical Too |
| Brand: |
Rne Da |
Product Description
3 core 2.5mm PVC insulated PVC sheathed flate wire cable
Specification
1).Rated Voltage: 300/500V.
2).Rated temperature: 70 'C;
3).Standard: GB; IEC. etc.
4).Testing Voltage: 6KV; .
5).Min. insulation resistance at 70°C(Mohm.km): 0.005 - 0.015
6).ISO9001:2008, CCC certification
7).20 years manufacturing experience
8).Specialized in electric/electrical; construction; industrial appliance
9).Customer wire cable
10).Stock available, Free sample
11).Small profits, quick returns
12).High quality and competitive price
13).Convenient transportation (One hour drive to Shanghai) )and timely delivery
More technical data:
The information attached below is just for your reference. We can produce electric copper wire completely according to your requirement, please contact us with your specifications that you need
Model: BVVB
| Nom. Section(mm²) | Core/Dia.(mm) | Insulation thickness(mm) | Sheath thickness(mm) |
| | | Nom. | Thinnest | Nom. | Thinnest |
| 2*0.75 | 1/0.97 | 0.6 | 0.44 | 0.9 | 0.67 |
| 2*0.1 | 1/1.13 | 0.6 | 0.44 | 0.9 | 0.67 |
| 2*1.5 | 1/1.38 | 0.7 | 0.53 | 0.9 | 0.67 |
| 2*2.5 | 1/1.78 | 0.8 | 0.62 | 1 | 0.75 |
| 2*4 | 1/2.25 | 0.8 | 0.62 | 1 | 0.75 |
| 2*6 | 1/2.76 | 0.8 | 0.62 | 1.1 | 0.84 |
| 2*10 | 7/1.35 | 1 | 0.8 | 1.2 | 0.92 |
| 3*0.75 | 1/0.97 | 0.6 | 0.44 | 0.9 | 0.67 |
| 3*1 | 1/1.13 | 0.6 | 0.44 | 0.9 | 0.67 |
| 3*1.5 | 1/1.38 | 0.7 | 0.53 | 0.9 | 0.67 |
| 3*2.5 | 1/1.78 | 0.8 | 0.62 | 1 | 0.75 |
| 3*4 | 1/2.25 | 0.8 | 0.62 | 1.1 | 0.84 |
| 3*6 | 1/2.76 | 0.8 | 0.62 | 1.1 | 0.84 |
| 3*10 | 7/1.35 | 1 | 0.8 | 1.2 | 0.92 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
