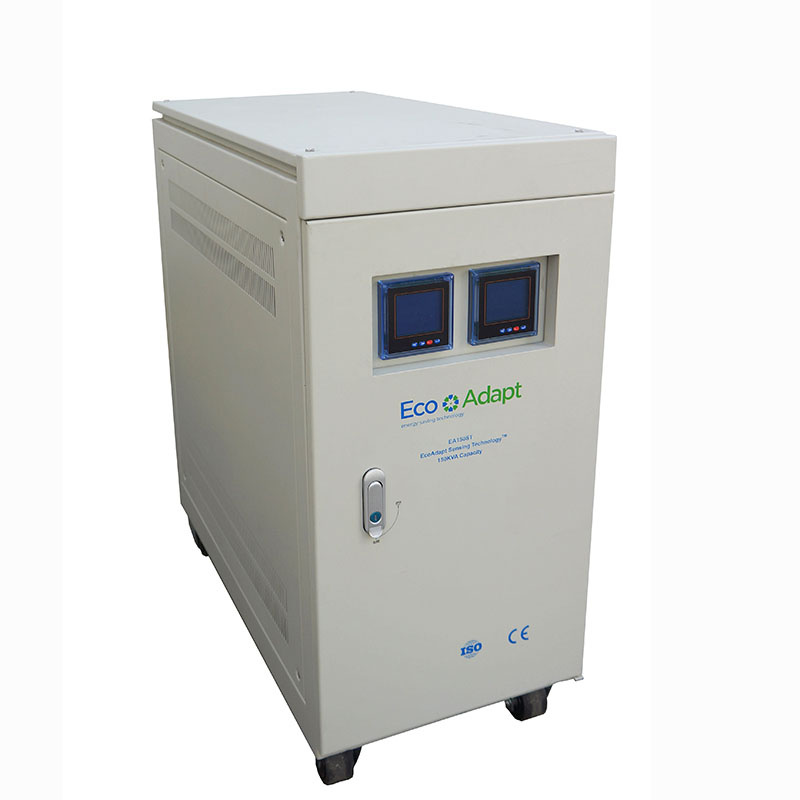

3 Fix Taps Energy Saving Transformer (20kVA, 30kVA, 50kVA)

3 Fix Taps Energy Saving Transformer (20kVA, 30kVA, 50kVA)
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T
Prod Model: EST
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase: Single
Coil: Core-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Auto-transformer
Application: Lighting

Product Description

The Energy Saving Transformer (EST) is a tapped auto-transformer which reduces voltage by up to 12%. This proportional reduction provides an effective way of prolonging the life of electrical equipment, reducing costs and cutting carbon emissions for sites with a reasonably stable mains supply.
At full load the EST Voltage Optimisation delivers efficiency of more than 99.5%. Many types of electrical equipment work perfectly well on a lower voltage than the standard mains supply, and indeed the performance of some equipment is actually optimised when the voltage is reduced. The EST can realise energy savings of up to 20% and help organisations meet their Carbon Reduction Commitments.

Is a voltage optimisation transformer that helps organisations make some of the biggest financial savings possible on their energy bills by reducing the mains voltage used to power electrical equipment. The Energy Saving Transformer(EST), a tapped auto-transformer, reduces voltage by up to 12%. The EST reduces input voltage by a fixed amount, making it ideal for sites with a reasonably stable voltage supply. This proportional reduction helps prolong the life of electrical equipment while reducing carbon emissions
Each kWh of electrical energy saved is equivalent to 0.537kg of CO2. With organisations facing a steady increase in electricity prices, the EST ensures a reduction on supply voltage while helping organisations reduce costs and meet their Carbon Reduction Commitments.

Many types of electrical equipment work perfectly well on a voltage lower than the standard mains supply. This is particularly true for equipment designed to operate on 380V or 400V three phase supplies where the supply is 415V, and for equipment designed for 230V or 220V single phase supplies where the supply is 240V. The EST provides a maximum output current of up to 3, 000 amps per phase to reduce voltage by between 3% and 12%.


Many types of electrical equipment work perfectly well on a voltage lower than the standard mains supply. This is particularly true for equipment designed to operate on 380V or 400V three phase supplies where the supply is 415V. The actual power supply is higher than necessary the equipment will consume more power than needed and in many cases, equipment life is reduced, effectively increasing the cost of ownership.

Energy Saving Transformer (EST) helps organisations make some of the biggest financial savings possible on their energy bills by reducing the mains voltage used to power electrical equipment. It is a tapped auto-transformer which reduces voltage by up to 12% by a fixed amount, making it ideal for sites with a reasonably stable voltage supply.





Features and Benefits

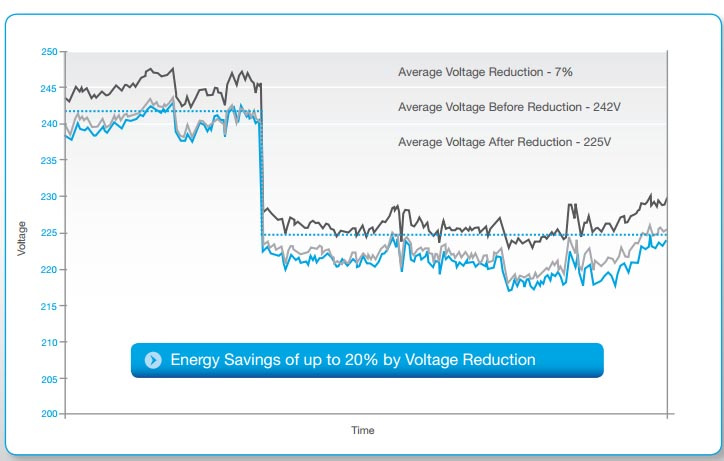

    Energy saving of up to 20%
    Fast return of investment(ROI) time
    Prolonged equipment life span
    High operational efficiency
    Adjustable configurations based on site requirements
    Display of input and output voltages and output current
    Internal protection against overheating
    Optional GPRS and Wireless Energy Monitors for real-time energy monitoring
    Single and three phase up to 1000KVA

We can offer OEM and custom design service.
Input Voltage Maximum 440V three phase
Output Voltage Maximum nominal reduction of 12%
Output Adjustment 3 fixed taps of 6%, 8% & 10%(other upon request)
Supply Frequency 50/60Hz
Waveform Distortion None
Insulation Class H class
Duty Type Continuous
Cooling Type Natural Air(AN)/Forced Air(AF)
Efficiency >99% at full load
Electrical Safety CE equivalent
Operational Temperature -20 °Cto +45 °C
Relative Humidity <90% non-condensing
Enclosure IP20(indoor), outdoor on request
GPRS Remote control and monitoring the VO unit parameters
Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.

Experienced and Fully Customizable Solutions

As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.

ISO 9001: 2008 Certified Processes

ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.

Outstanding Service

As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
