| Prod Model: |
42BYGH Series |
| Motor Series: |
42 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
141 mm (5.55 in) |
| Shaft: |
Screw Shaft |
| Connectors: |
Plug-in or Lead Wires |
| Motor Length: |
40 mm (1.57 in) |
| Holding Torque: |
300mnm (42.48 Oz-in) |
| Rated Current: |
1.0 A DC |
| Payment Term: |
3.Payment Term: T/T in Advance, 30% Deposit, 70% B |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Two-Phase Eight-Parts |
| Brand: |
Shengyang |
| Certification: |
RoHS, CE |
Product Description

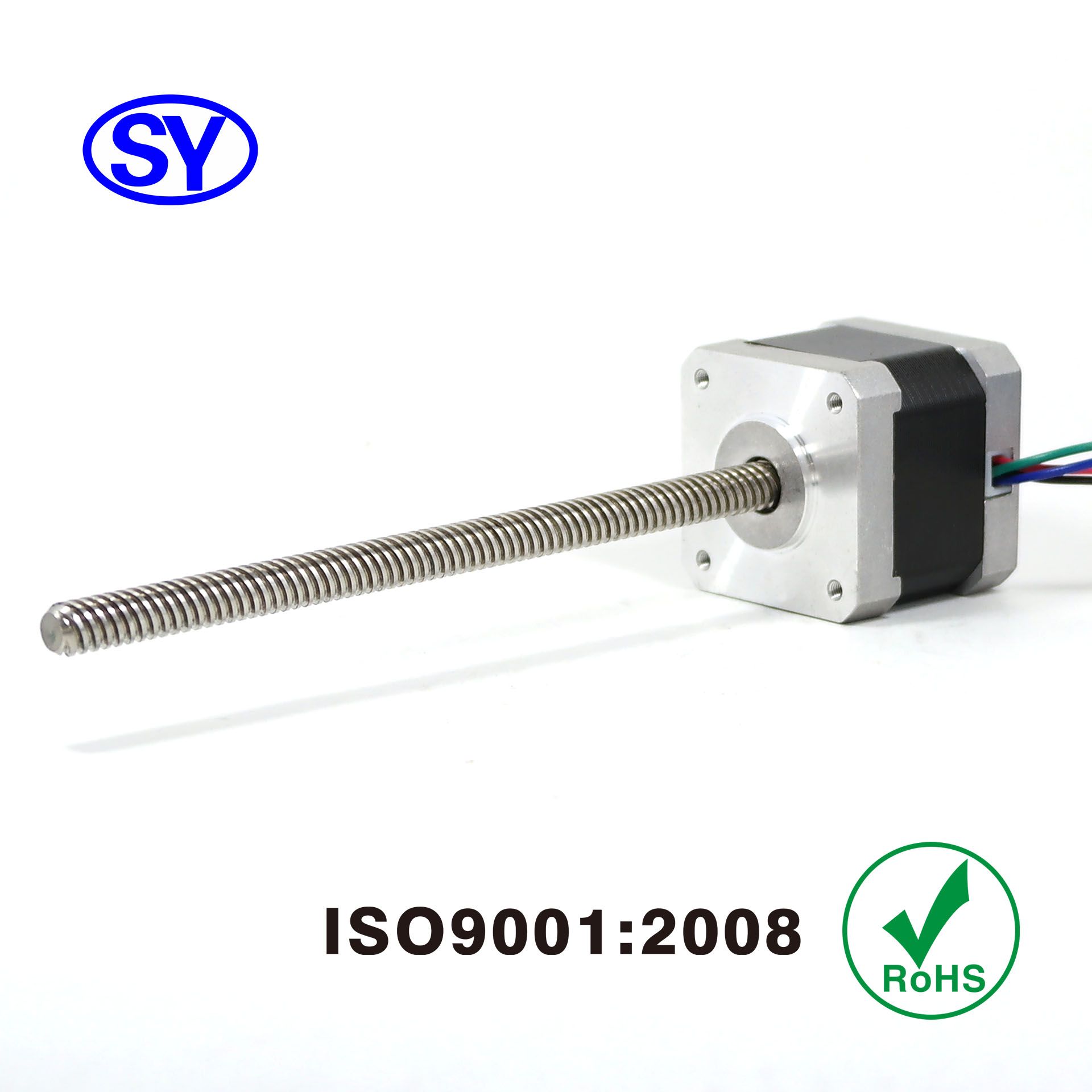

0.3 Nm 42mm Hybrid Stepper Electrical Motor
Features:
High torque
Low noise
Smallsize
Product Description:
1. Specification:
Step Angle: 1.8°± 5% full step, no load
Shaft End Length: 141mm (5.55 in)
Shaft: Screw Shaft, Customized Shaft Length
Connectors: Connectors, Lead Wires
Motor Length: 40mm (1.57 in)
Holding Torque: 300mNm (42.48 oz-in)
Rated Current: 1.0 A DC
Ambient Temperature: -24 ºC- +60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100 mΩ 500 V DC
Dielectric Strength: 600 V AC for 1S, leakage current less than 1mA
2. Note: Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest price list.
3.Payment term:
T/T in advance, 30% advanced deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and Servo motor. We passed ISO9001:2008 quality system, and all row materials are base on ROHS standards. Our all motors can be customized, welcome to contact us.
Contacts: Ms Rita Law
Mobile(+86) 13631101993
www.shengyangmotor.com
Series
&
Length | Model
Number | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
42BYGH0
26mm
(1.02 in.) | 42BYGH001 | 120 17 | 0.3 | 42 | 48 |
| 42BYGH007 | 160 22.66 | 0.4 | 10.4 | 14 |
42BYGH1
33mm
(1.30 in.) | 42BYGH104 | 275 38.94 | 0.4 | 40 | 35 |
| 42BYGH107 | 250 35.40 | 0.4 | 22 | 30 |
42BYGH2
34mm
(1.34 in.) | 42BYGH202 | 220 31.15 | 0.5 | 30 | 37 |
42BYGH3
40mm
(1.57in) | 42BYGH312 | 530 75.05 | 0.6 | 26 | 48 |
42BYGH4
40mm
(1.57 in.) | 42BYGH412 | 420 59.47 | 1 | 6.7 | 9.8 |
| 42BYGH413 | 300 42.48 | 1 | 3.5 | 5 |
42BYGH11
34mm
(1.34 in.) | 42BYGH1101 | 240 33.98 | 0.4 | 30 | 45 |
| 42BYGH1102 | 280 39.65 | 0.84 | 5.75 | 9.3 |
Our factory's
More details or any inquiry, welcome to contact us!
Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.
Shengyang Motor constantly focuses on technological specification, unswervingly insists in providing high-quality products and best service and keeps firmly the service concept: To satisfy our clients is our eternal tenet. Shengyang Motor Co., Ltd has the advanced production facility, production line, quality controlled system and testing equipment for stepping motor.
Especially in producing, developing and selling precise motors, Shengyang Motor has developed a wide range of products which are widely used in laser light, stage lighting, printer, currency detector, industry control, monitors and so on. Being a supplier of professional precise stepping motor facing the nation and viewing the world with annual capacity more than 4, 000, 000 sets, Shengyang Motor enhances the quality of products constantly by absorbing the experience of motor manufacturer both at home and abroad, and introducing the latest technology and equipment to ensure the constant development of the company. Apart from providing standard products (following the national standard or international standard), we can also customize products according to the requirements of customers.
With high-quality products and supports from a large number of suppliers and customers, Shengyang Motor won great credit in stepping industry and is becoming a famous brand in the field.
Shengyang Motor insists on consolidating its good reputation by stabilizing quality and reacting quickly to meet promises that we make to all customers.
As a young, energetic, practice and creative team, Shengyang Motor emphasizes the service idea of thinking all customers' profit firstly and highlights making the best cost performance programme. Shengyang Motor unswervingly insists the principle of "humanist, introducing and optimizing technology, stabling quality, moving customer, base on dometic and following the world" to serve customers all over the world.
