3 Oz, 4 Oz, 5 Oz, 6 Oz Multi-Layer PCB for Power Supply

Name: 3 Oz, 4 Oz, 5 Oz, 6 Oz Multi-Layer PCB for Power Supply
Brand: all-electronics-online.com
SKU: 774396335
Availability: InStock
Rating: 4.3 (90 reviews)

Price:	US $ 0.08-0.1/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H56117
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Chem. Ni/Au 3u"
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Application:	Industry Control
Base Material:	Fr4
Brand:	Xzg

Product Description

Specification:

Layer	10
Material	FR4-TG150
Board Thickness	1.6mm
Copper Thickness	6/6/6/6/6/6/6/6/6/6 oz
Soldermask	Green
Silkscreen	White
Surface Finishing	ENIG
Min Hole Size	0.2mm

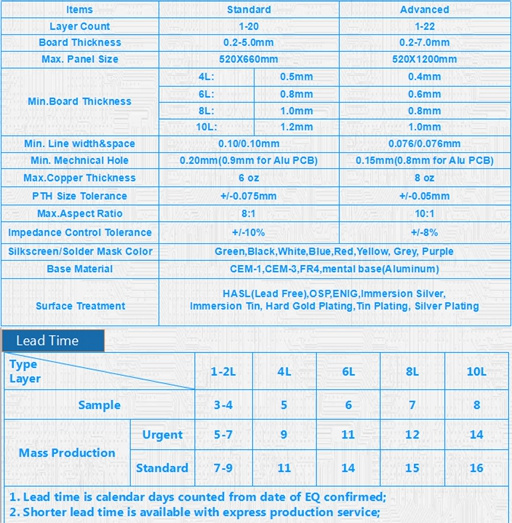

2.Capability:

Layer Count	1 to 22 layer
Material Type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers.etc.
Board Thickness	0.21mm to 7.0mm
Copper Thickness	0.5 oz to 7.0 oz
Min. Line Width&Space	3/3 mil
Min. Mechnical Hole	0.15mm(0.8mm for Alu PCB)
Min.Solder Mask Dam	0.075mm
Max.Aspect Ratio	10:1
PTH Size Tolerance	+/- 0.05mm
Impedance Control Tolerance	+/- 8%
Routing Tolerance	+/- 0.1mm
Electric Strength	>103KV/mm
Current Breakdown	10A
Solder Mask Abrasion	>6H
Solder Mask Color	Green/Black/White/Red/ Blue/Matt Blue/Matt Black
Silkscreen Color	Yellow/Black/White/ Orange/Grey
Surface Finishing	HASL / HASL lead free,OSP, Tin Plating, Silver Plating Immersion Silver/Tin, ENIG, Hard Gold plating
PCB Packing	- Inner Packing: Vacuum packing / plastic bag - Outer packing: Standard carton packing

3.Lead Time:

	1-2L	4L	6L	8L	10L
Sample	3-4	5	6	7	8
Mass Production	6-8	10	12	14	16

1. Lead time is Calendar Days counted from date of EQ confirmed;
2. Shorter lead time is available with express production service;

Why US:

UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.

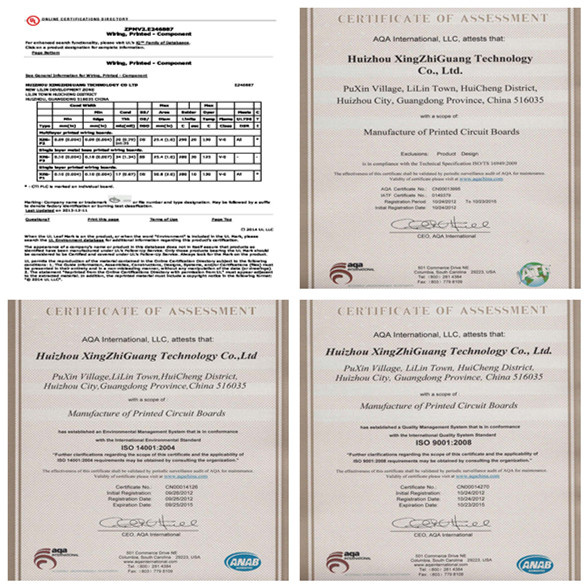

Certificates(UL:E246887, TS16949, ISO14001, ISO9001):

Capability & Lead Time:

Factory Tour:

Clients and Suppliers:

FAQ:

Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:What is your minimum order quantity?

A:Our MOQ is 1 PCS.

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
