3 Phase 1.2 Degree NEMA 34 Stepper Motor Engraving Machine High Torque Motor Stepper

Name: 3 Phase 1.2 Degree NEMA 34 Stepper Motor Engraving Machine High Torque Motor Stepper
Brand: all-electronics-online.com
SKU: 835363665
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 25/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK86HSP65-3006
Motor Length:	65mm
Current/Phase:	3A
Inductance/Phase:	1.6mh
Holding Torque:	2n.M
Motor Weight:	1.65kg
Max Axial Force:	60n
Max. Radial Force:	220n
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Number Of Poles:	RoHS, Ce
Operate Mode:	Operate with a Motor Drive
Certification:	Ce,RoHS
Brand:	Jk

Product Description

Stepper motor, wider use stepping motor-high quality cheap and small nema 34, 1.2degree professional manufacturer.
Product Description

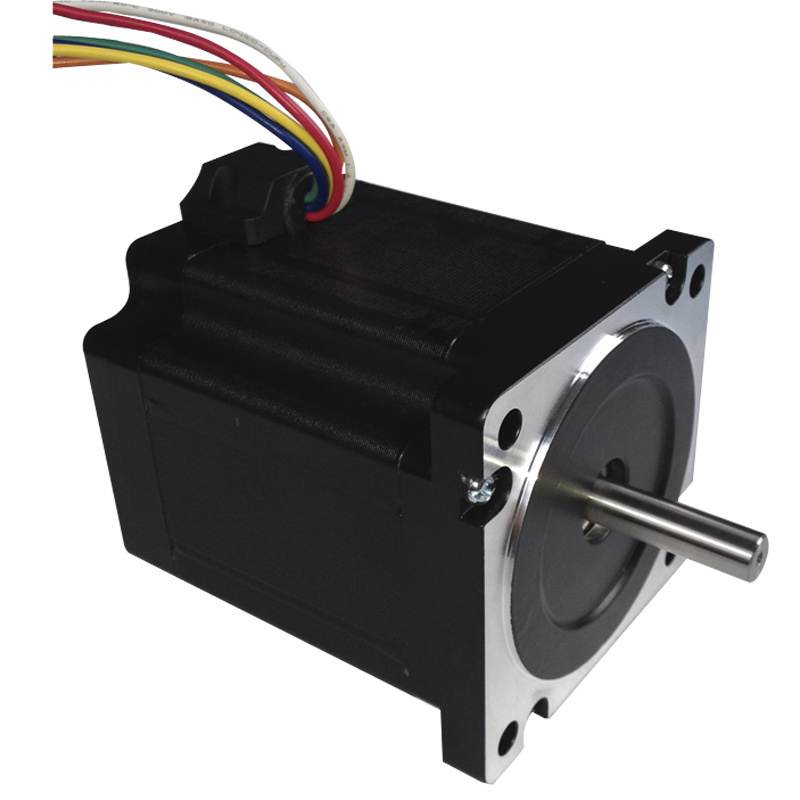

1.2degree Size 86mm Hybrid stepper motor. 3D Printer stepper motor

86mm size stepper motor , NEMA 34 stepping motor,

Small stepping motors, 3 phase 86mm stepper motor, Stepper motor 86mm size

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,

advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Rotor Inertia	Motor Weight
	( °)	(L)mm	A	Ω	mH	N.m	g.cm²	Kg
JK86H3P65-3006	1.2	65	3	0.5	1.6	2	1100	1.65
JK86H3P98-5206	1.2	98	5.2	0.6	3	4.5	2320	2.70
JK86H3P113-5206	1.2	113	5.2	0.9	5.9	6	3100	3.50
JK86H3P150-5006	1.2	150	5.0	1.5	3	7	4650	5.10

*Note: We can also manufacture products according to customer's requirements.

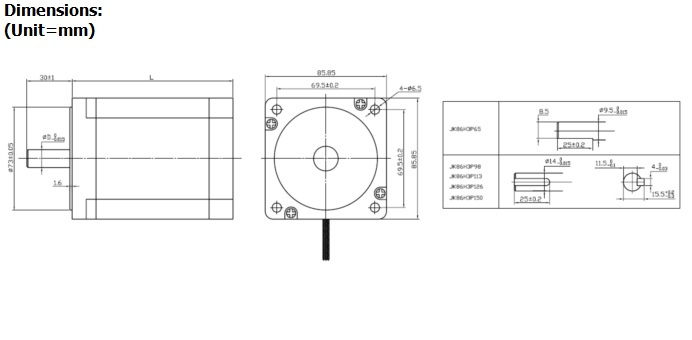

Dimensions:
(Unit=mm)

Wiring Diagram:

Our Packing:

About our company:

Changzhou Jingkong Motor&Electric Appliance Co.,Ltd is a high -tech enterprise that Specializes in designing and producing Hybrid Stepper Motor, Stepper Gear Motor, Stepper Motor Driver, Brushless Dc Motor and Driver.

Jingkong Motor has strong technical force, mature production technology, complete testing equipment and has obtained CE certification, compliance with the EU Rohs standards. Our applicable fields refer to robot, electronic equipment, medical instrument, ad instrument, lighting&audio equipment, printer, textile machinery. Already export to USA, Germany, Italy, Spain.U.k, Mexico Brazil and other countries.

Contact person : Jean (Sales)

company name : Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Company website : www.jkongmotor.com

Tel : +86-519-88372558

Fax : +86-519-88713769

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
