3 Phase 110mm NEMA42 Stepper Motor for CNC Rounter

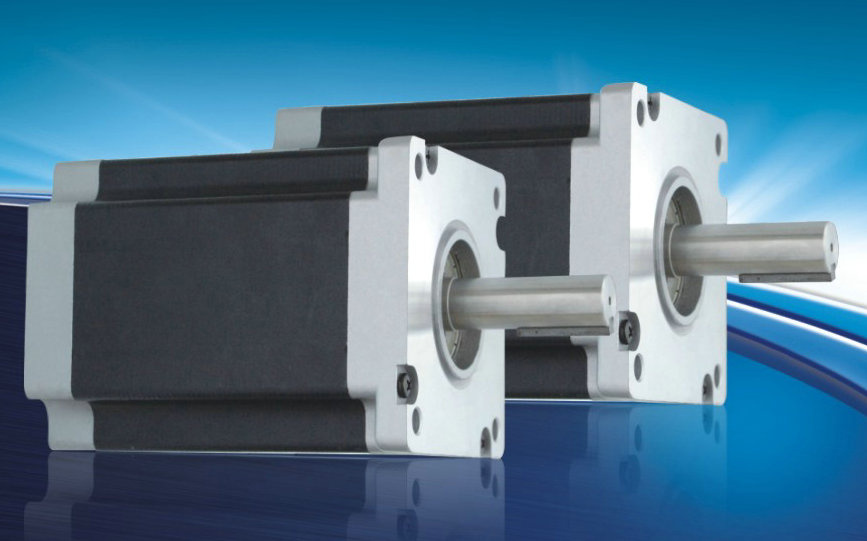

Name: 3 Phase 110mm NEMA42 Stepper Motor for CNC Rounter
Brand: all-electronics-online.com
SKU: 694579855
Availability: InStock
Rating: 4.8 (103 reviews)

Price:	US $ 10-50/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	110BYGH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.2 Degree
Holding Torque:	12n.M
Weight:	1.65kg
Length:	150mm
Type:	Electromechanical
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Number Of Poles:	Other
Brand:	Jk
Operate Mode:	Other
Certification:	CE and RoHS

Product Description

Step Angle ------------------- 1.2° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 1800VAC for 1S 5mA
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 220N (20mm from the flange)
Max. Axial force------------------- 60N

Model	Step Angle	Drive voltage	Phase/ current	Phase/ resistance	Phase/ indutance	Holding torque	Weight	length
	degree	V	A	Ω	mH	N. m	Kg	mm
110BYGH3012	1.2°	80-325	3	2.0	12	12	10	150
110BYGH3018		80-325	3	1.8	11	18	12	202
110BYGH3024		80-325	3	1.9	13	24	14	246
* *We can produce it according your requests.

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
