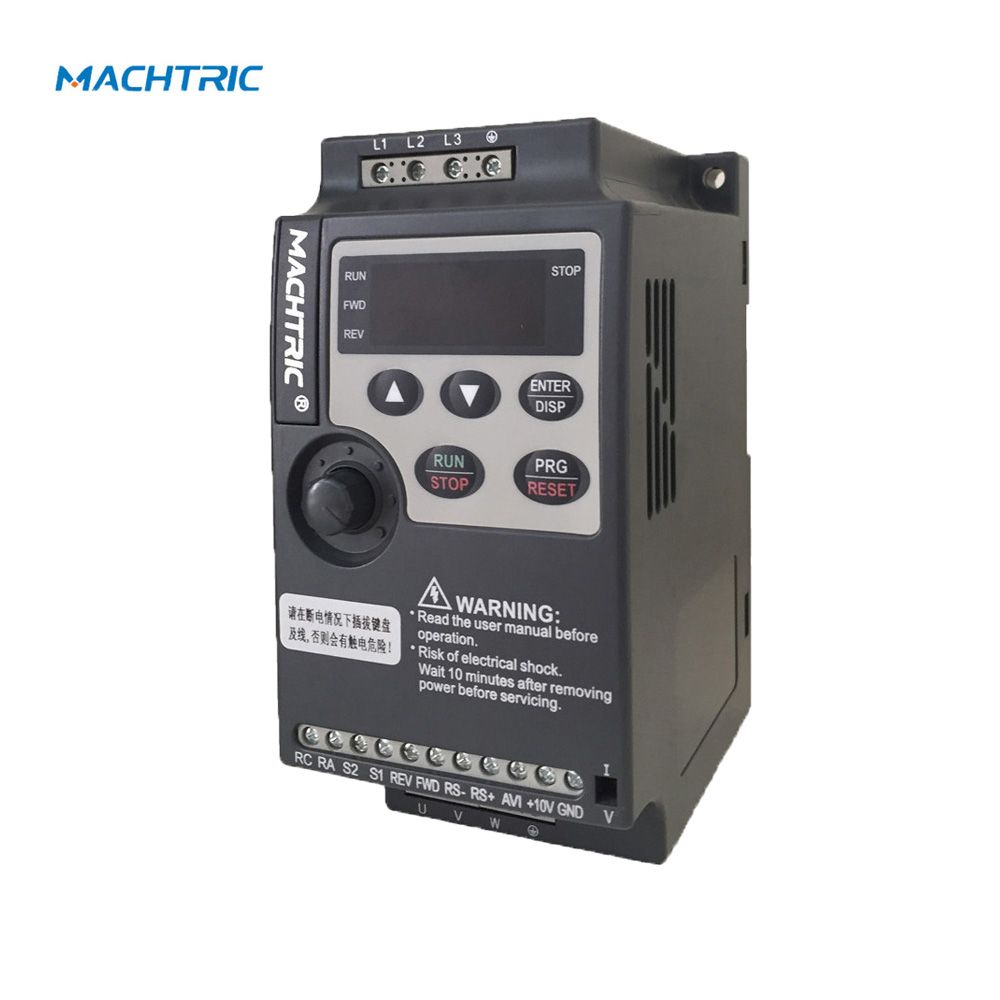

3 Phase 220V/380V 22kw Adjustable Speed Drive/Frequency Converter
| Price: |
US $ 70/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S900GS |
| Item Name: |
AC Variable Speed Drive |
| Torque Control: |
Auto Increase |
| Pid Control: |
Built-in Pid Control |
| RS485: |
Standard RS485 Communication Function |
| Protective Structure: |
IP20 |
| Mode: |
Wall-Mounted |
| Over Voltage: |
Can Be Set |
| Under Voltage: |
Can Be Set |
| Output Frequency: |
0.10-400.00 Hz |
| Size: |
Depends on Different Frequency |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
3 Phase 220V/380V 22kw Adjustable Speed Drive/Frequency Converter
1.Product Specifications: | | Items |
S900GS |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz
Three phase AC 380V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V 380V:0~380V |
| FrequencyRange | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| ronment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
2.Guidence:1PHAC220V±15% 50/60Hz| Model | Rated output power | Capacity
| Output Current
| Overload
Capacity | Applicable motor |
| (KW) | (KWA) | (A) | (60s)(A) | (KW) |
| S900-2S0.4GS | 0.4 | 1 | 2.5 | 3.75 | 0.4 |
| S900-2S.75GS | 0.75 | 2 | 5 | 7.5 | 0.75 |
| S900-2S1.5GS | 1.5 | 2.8 | 7 | 10.5 | 1.5 |
3PHAC380V±15% 50/60Hz| Model | Rated output power | Capacity | Output Current
| Overload
Capacity | Applicable motor |
| (KW) | (KVA) | (A) | (60s)(A) | (KW) |
| S900-4T0.75GS | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 |
| S900-4T1.5GS | 1.5 | 3.2 | 4.0 | 6.0 | 1.5 |
| S900-4T2.2GS | 2.2 | 4.0 | 5.0 | 7.5 | 2.2 |
| S900-4T3.7GS | 3.7 | 6.8 | 8.6 | 12.9 | 3.7 |
| S900-4T5.5GS | 5.5 | 10 | 12.5 | 18.75 | 5.5 |
| S900-4T7.5GS | 7.5 | 14 | 17.5 | 21 | 7.5 |
| S900-4T11GS | 11 | 19 | 24 | 36 | 11 |
| S900-4T15GS | 15 | 26 | 33 | 45 | 15 |
| S900-4T18.5GS | 18.5 | 32 | 40 | 60 | 18.5 |
| S900-4T22GS | 22 | 37 | 47 | 70.5 | 22 |
| S900-4T30GS | 30 | 52 | 65 | 97.5 | 30 |
| S900-4T37GS | 37 | 64 | 80 | 120 | 37 |
3.Target Market of S900GS Series Inverter Food machinery-Feeder,mixer,bag filling machines,pasty forming machine......
Woodworking Machinery-Polishing machine,grinding machine,carving machine......
Textile Machinery-winding machine,fabric inspection machine......
Packaging Machinery-Liquid filling machine,pharmaceutical filling machine......
Other:Stone cutting machine......
Blowing machine,Water-pump-housetop/a fan to fill and exhaust gas,small Pump for water supply
Printing equipment-offset
Conveyor belt-Small conveyor belt,common conveyor belt
Feeding Equipment-Tool machine,winding machine,weaving machines equipment
Rubber and plastic industry-Sealing machine,various types of small machine
General business-Common household,air conditioning,automatic door4.Product Dimension:
5.The Basic Wiring Diagram

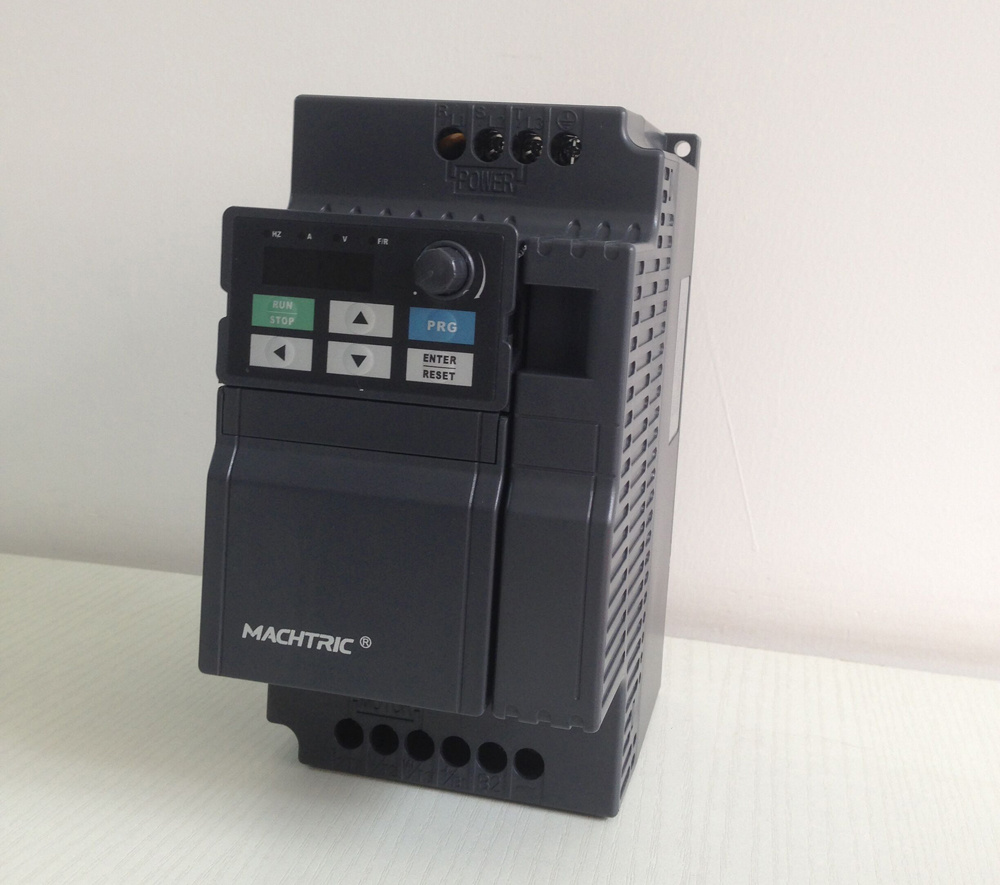

6.Product Show:
7.Other Main Products:
8.Contact Us:
