3 Phase 3 in 1 Current Transformer for Metering

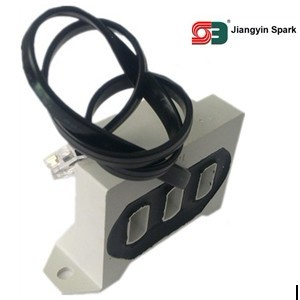

Name: 3 Phase 3 in 1 Current Transformer for Metering
Brand: all-electronics-online.com
SKU: 699304615
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TCT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Western Europe
Phase:	Three
Type:	Current Transformer

Product Description

3 Phase Current Transformer
Specifications
Exterior materials: PBT or ABS resin UL flame
Interior insulation: Epoxy encapsulated
Frequency: 50 to 400 Hz
Retardant rating: 94-V0
Isolation voltage: 2, 500 Vrms for 1 minute
Dielectric resistance: 1, 000MΩ At 500V DC
Surge withstand: 5, 000V (1.2/50μ S standard shock wave)
Rated load resistance: 100kΩ
Operating temperature: -25 to +55° C and -40 to +85° C optional
Accuracy class: As defined in IEC 60044-1
Chassis mounting pattern
Available in more than 10 standard sizes
Applications:
Current monitor of AC motor
Illumination device, air compressor and HVAC
Temperature control, electrical energy managing, building control system
Current measurement, monitoring, protection for circuitry and equipment
RoHS Directive-compliant

Model	Input		Output	Burden	Accuracy(20A-200A)		PDF
					F(error)	δ(error)
TCT-20×30-100A/25mA		100A	250mA	20Ω	≤0.2%	≤0.5°
TCT-20×30-50A/20mA		50A	200mA	20Ω	≤0.2%	≤1°

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
