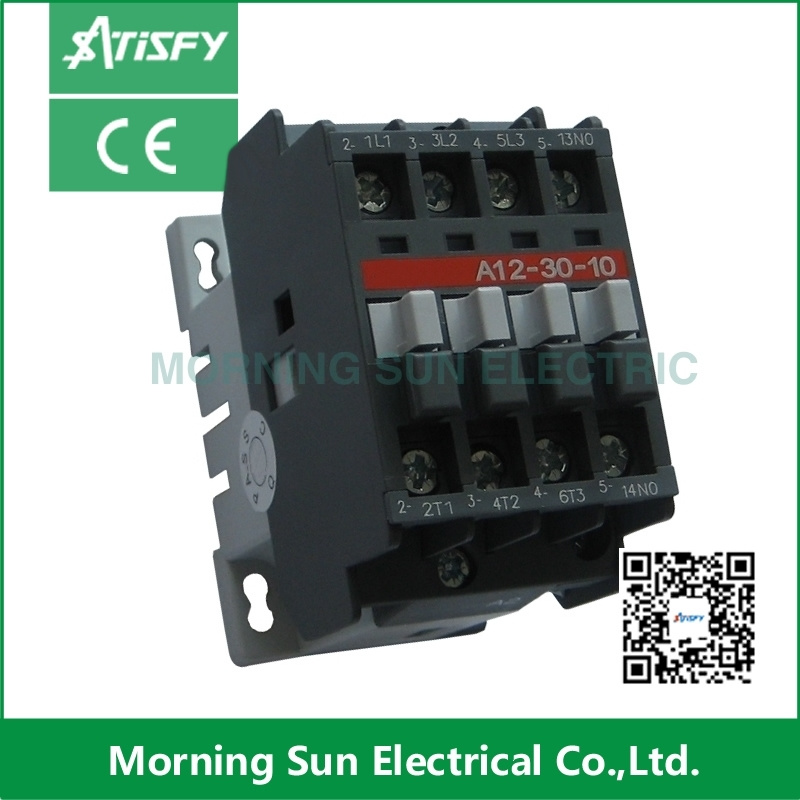

3 Phase a Contactor

Prod Model:	A
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Theory:	OEM
Size:	Miniature

Product Description

Model No.: A-A
Rated current: A
Rated voltage: 660VAC
Number of Pole: 3
Phase: 3
Electricity Type: AC

Brand Name: ABBCH, FONOTO or OEM
Vast OEM experience
Place of Origin: Wenzhou, China(Mainland)
Packaging: Standard Export packings or OEM packings.
Delivery Detail: 1-15days

ABBCH A series AC Contactor

A series Contactor Technical Data:
Contactor Standard: IEC60947-4
Rated Operating Current(A): 09, 12, 18, 26, 32, 40, 50, 65, 80, 95, 110, 145, 185, 210, 260, 300
Number of Auxiliary contact: 10, 01, 11
Contactor Coil Frequency: 50/60Hz
Contactor Coil Voltage Us(V): 24, 36, 48, 110, 127, 220, 230, 240, 380, 415, 440, 480, 500, 600, 690
Protection Grade: IP20
Installation: On symmetrical DIN rail 35mm
Poles: 3P, 4P

AC Contactor General Specifications
1. The installation altitude less than 2000m.
2. The surrounding temperature range: From -5° C ~ +40° C.
3 In the non-explosive condition. Or without adequate erosion and destruction of gas and dust conductive area.
4. Without rain and snow invade.
5. Pollution level 2.

FAQ:
Q 01: Do you accept OEM businessfor AC contactor?
A: OEM with autherization is available.

Q 02: How about your experience?
A: We have our own professional factory and R&D department & more than 10 years producing experience.

Q 03: How's the delivery time for Mass Production for the Contactors?
A: Usually it will take about 15-30 days for Mass production.

Q 04: What will be the wanrranty for the MC contactor?
A: We offer two year warranty for our AC contactor at Normal service Environment.

Packing detail:
3 phase AC contactor PCS/CTN
CJX7-9-30-10 50
CJX7-12-30-10 50
CJX7-16-30-10 50
CJX7-26-30-10 40
CJX7-30-30-10 40
CJX7-40-30-10 40
CJX7-50-30-11 20
CJX7-63-30-11 20
CJX7-75-30-11 20
CJX7-95-30-11 8
CJX7-110-30-11 8
CJX7-145-30-11 4
CJX7-185-30-11 4
CJX7-210-30-11 2
CJX7-260-30-11 2
CJX7-300-30-11 2

4 phase AC contactor PCS/CTN
CJX7-9-40-00 50
CJX7-16-40-00 50
CJX7-26-40-00 40
CJX7-45-40-00 20
CJX7-50-40-00 20
CJX7-75-40-00 20
