3 Phase Cast Aluminum Induction Motor, Ie1/Ie2/Ie3 Efficiency

Name: 3 Phase Cast Aluminum Induction Motor, Ie1/Ie2/Ie3 Efficiency
Brand: all-electronics-online.com
SKU: 805211125
Availability: InStock
Rating: 5 (32 reviews)

Price:	US $ 25-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS90L-2-2.2KW
Output:	0.06kw-7.5kw
Size:	56-132
Color:	Silver
Rated Voltage:	220/380V
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Ms Series Three-Phase
Number Of Poles:	2,4,6,8,10
Certification:	Ce,CVC
Brand:	an

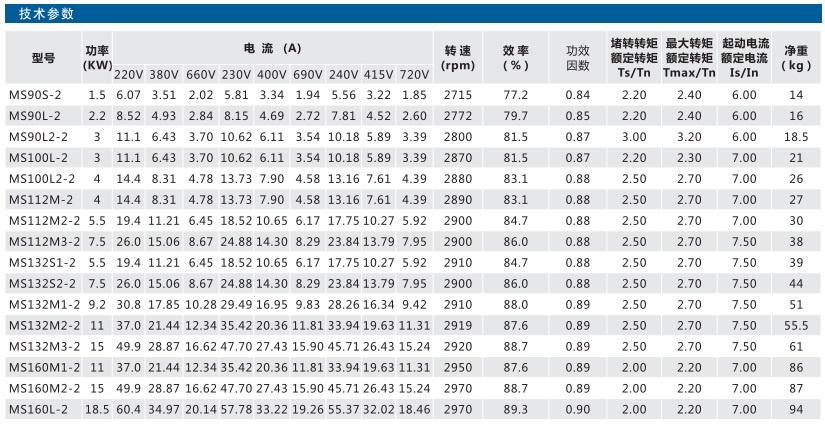

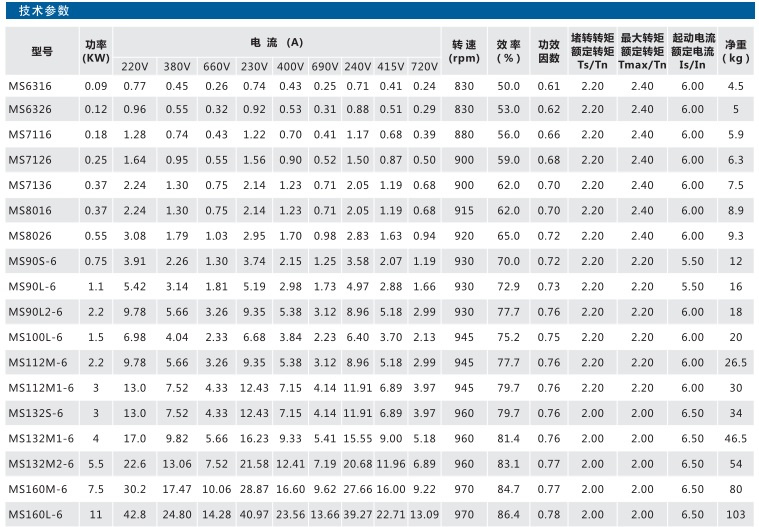

Product Description

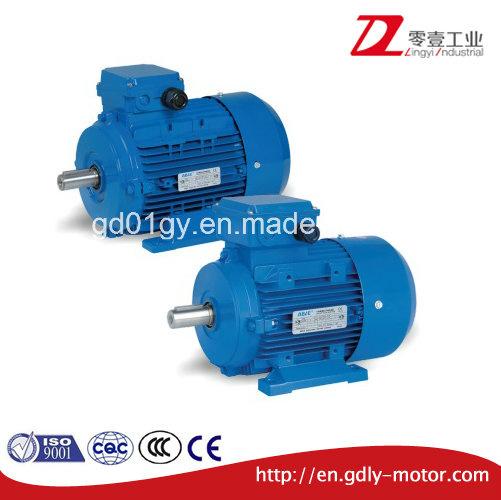

Aluminum Housing Asynchronous Electric Motor

Output	0.06kw-18.5kw
Frame Size	56-160L
Voltage	220/380V/230V/660V/400V/690/240V/415V/720V
Frequency	50Hz/60Hz
Protection class	IP54/IP55
Insulation class	B

3 Phase Aluminum Motor Features

1/. light weight,
2/. small vibration,
3/. low noise,
4/. waterproof,
5/. dustproof,
6/. corrosion resistance,
7/. energy saving,
8/. high performance,
9/. high efficiency,
10/. long life

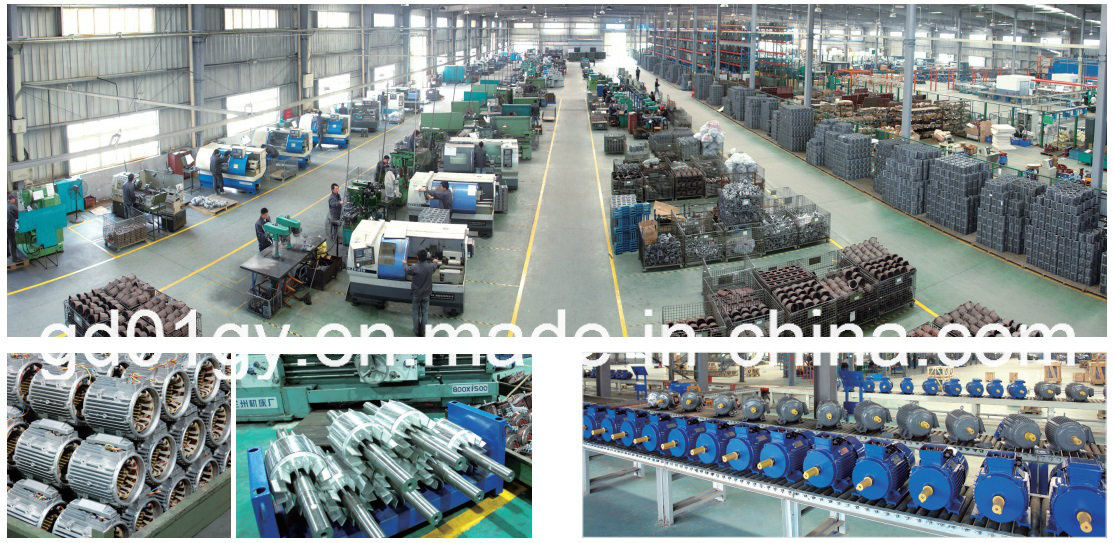

Plant

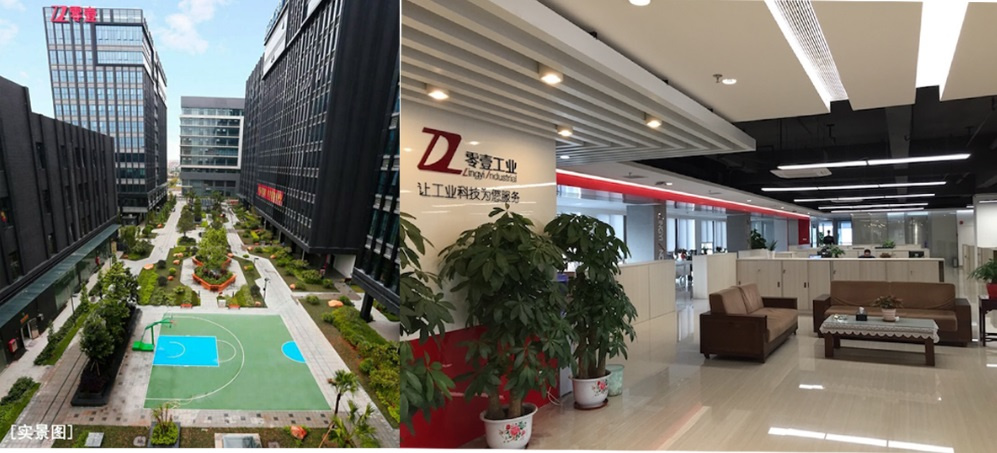

Office Block

Team

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
