3 Phase Current Transformer Dasn240 60/5 - 200/5 Class 0.5 Three Phase CT 3 in 1 Current Transformers

Name: 3 Phase Current Transformer Dasn240 60/5 - 200/5 Class 0.5 Three Phase CT 3 in 1 Current Transformers
Brand: all-electronics-online.com
SKU: 816835015
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	US $ 1-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DASN240
Window Size:	3@15*15mm
Class:	0.5,1.0,3.0
Input:	60-200A
Output:	1A,5A
Burden:	1.5va,2.5va
Application:	Instrument
Type:	Current Transformer
Phase:	Three

Product Description

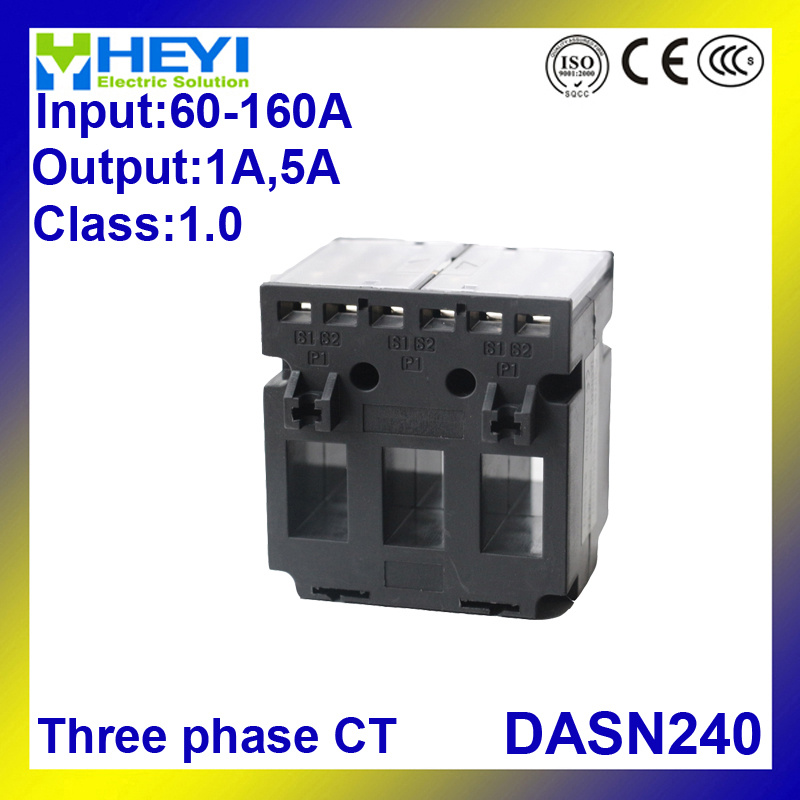

3 Phase current transformer Dasn240 60/5 - 200/5 Class 0.5 Three Phase CT 3 in 1 Current Transformers

DASN240 range of current transformers are combination designed 3 CT in 1, save more space comparing general unit CT,

suitable for primarycurrent 75A to 600A, supporting the use of molded case circuit breaker according to

the rated current size.

Features:

1:Three built in fixing methods: Panel/Din Rail/Busbar

2:Built in hinged terminal cover
3:Perfect matching with MCCB, save more space

4:Primary current from 30A to 600A

Applications:

1: Current measurement, monitoring and protection for electrical wiring and equipment.

2: Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.

3: Current, power and energy monitoring device.
4: Relay protection device.

Technical Parameters

Rated Frequency					50/60Hz
Withstand voltage					AC3kV(1min)
Rated thermal current					60ln
Dynamic stability current					2.5lth
Rated voltage					AC0.72KV
Burden					1.2ln
Operating temperature range					-10°C-50°C
Prevent combustion level					V0
Accuracy limit class					FS5
Secondary current					5A,1A

Technical

Picture	Type	Current ratio	Burden	Packing for carton
			Accuracy class:1.0
	DASN240	60/5	1.5	36
		100/5	1.5	36
		120/5	1.5	36
		125/5	2.5	36
		150/5	2.5	36
		160/5	2.5	36
		200/5	2.5	36

Dimension

STANDARD:

IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006
