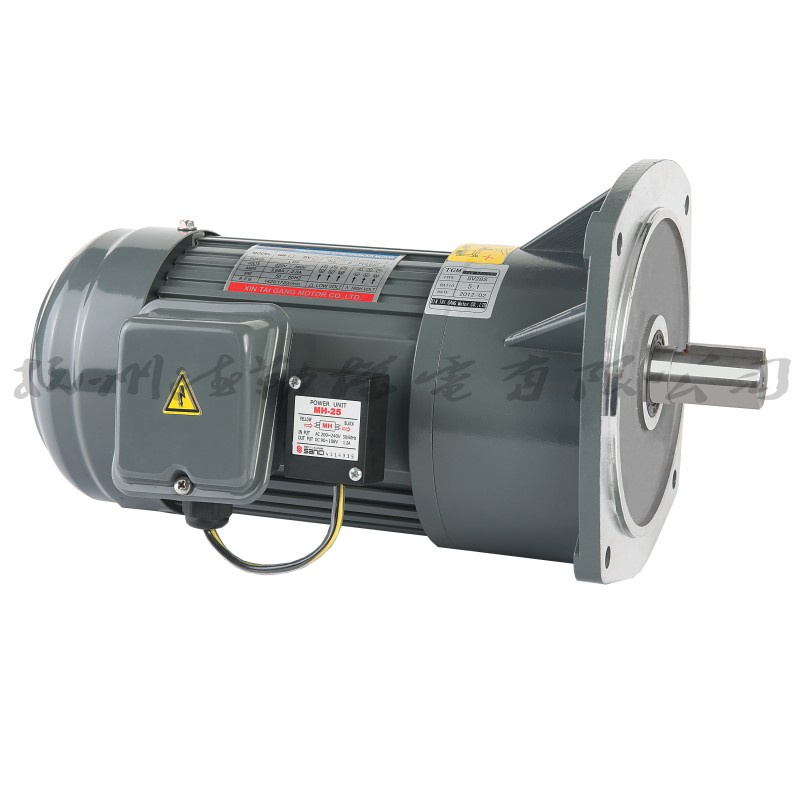

3 Phase Gv Type Vertical Gear Speed Redection Box Motors

Name: 3 Phase Gv Type Vertical Gear Speed Redection Box Motors
Brand: all-electronics-online.com
SKU: 685287492
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CIF
Min Order:	10/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV400W-GV3700W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
400V:	3700V
Application:	Car
Operating Speed:	Low Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type

Product Description

Wheel gears spreading to move is a the most wide kind of the application spreads to move a form in the modern machine.Its main advantage BE:The
spreads to move to settle, work than in a moment steady, spread to move accurate credibility, can deliver space arbitrarily sport and the motive of the of two stalks;Power and speed scope
applies are wide;
spreads to move an efficiency high
work is dependable, service life long;

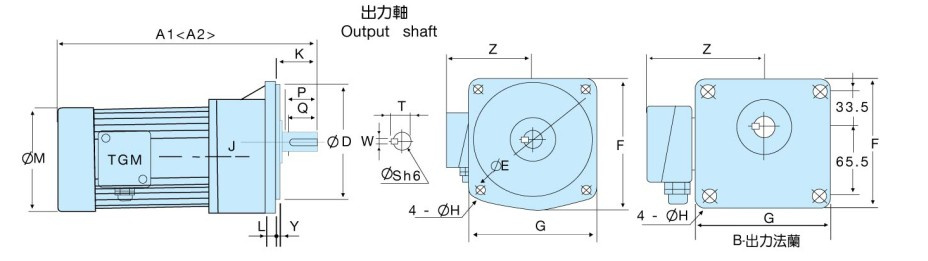

POWER HP-4P	REDUCER Ratio	A1	A2	D	E	F	G	H	L	J	K	M	Y	Z	Output shaft					weighkg
POWER HP-4P	REDUCER Ratio	A1	A2	D	E	F	G	H	L	J	K	M	Y	Z	P	Q	S	T	W	weighkg
100W (1/8HP)	250-1800	357	357	148	185	171	157	11	10	18.17	50	128	3.5	108	40	35	22	25	7	9.2
200W (1/4HP)	15-30	280	280	50	140	120	120	9	10	16	40	128	6	108	30	25	18	20	5	6.5
200W (1/4HP)	250-1800	420	420	170	220	205	195	11	14	20.8	60	128	4	108	45	40	28	31	7	12.8
400W (1/2HP)	15-90	330	330	148	185	171	157	11	10	18.17	50	160	3.5	124	40	35	22	25	7	11
	100-165	360	360	170	220	205	195	11	14	20.8	60	160	4	124	45	40	28	31	7	13.4
	250-1800	489	489	185	255	241	225	13	17	30.2	70	160	4	124	55	50	32	36.5	10	26.8
750W (1HP)	5_25	352	352	148	185	171	157	11	10	18.17	50	160	3.5	124	40	35	22	25	7	12.7
	30-120	380	380	170	220	218	200	11	14	20.8	60	160	4	124	45	40	28	31	7	16
	125-160	415	415	185	255	241	225	13	17	30.2	70	160	4	124	55	50	32	36.5	10	26.9
	250-1800	580	580	230	310	290	260	15	22	42.2	77	160	5	124	65	60	40	44.5	10	48.1
1500W (2HP)	5_30	380		170	220	218	200	11	14	20.8	60	160	4	124	45	40	28	31	7	16
	40-100	440		185	255	241	225	13	17	30.2	70	192	4	143	55	50	32	36.5	10	32
	110-140	485		230	310	290	260	15	22	42.2	77	192	5	143	65	60	40	44.5	10	49.3
2200W (3HP)	5_10	470		185	255	241	225	13	17	30.2	70	192	4	143	55	50	32	36.5	10	34.2
2200W (3HP)	45-100	505		230	310	290	260	15	22	42.2	77	192	5	143	65	60	40	44.5	10	50.8
3700W (5HP)	15-80	540		230	310	290	260	15	22	42.2	77	192	5	160	65	60	40	44.5	10	56.5
