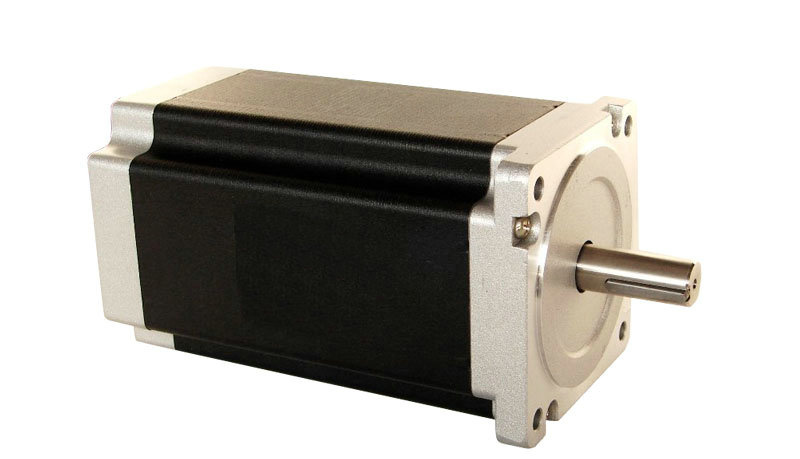

3 Phase NEMA34 86mm Stepper Motor with Fast Delivery

3 Phase NEMA34 86mm Stepper Motor with Fast Delivery
Price: US $ 5-35/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: 86HS67, 86HS78, 86HS115, 86HS155
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle: 1.2 Degree
Temperature Rise: 80° Max
Insulation Resistance: 500VDC
Max. Axial Force: 10n
Type: Electromechanical
Number Of Stator: Three-Phase
Excitation Mode: HB-Hybrid
Number Of Poles: Other
Brand: Jk
Function: Other
Operate Mode: Other
Certification: CE and RoHS

Product Description

1.8° 86mm Hybrid Stepper Motor-NEMA34
Genaral Specification:
Step Angle ------------------- 1.2° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 1800VAC for 1S 5mA
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 220N (20mm from the flange)
Max. Axial force------------------- 60N
Model No.   Step Angle Motor Length Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque   Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m kg.cm g.cm Kg
JK86H3P67-001 1.2 67 1.75 4.25 12.3 2.3 1.6 1100 1.70
JK86H3P97-001 1.2 97 2 5.4 23 4.6 2.6 2320 1.70
JK86H3P97-002 1.2 97 5.8 0.9 3.2 4.6 2.6 2320 2.50
JK86H3P127-001 1.2 127 2.25 9 41 6.8 3.8 3300 3.80
JK86H3P127-002 1.2 127 5.2 2.75 13.7 6.8 3.8 3300 3.80
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
