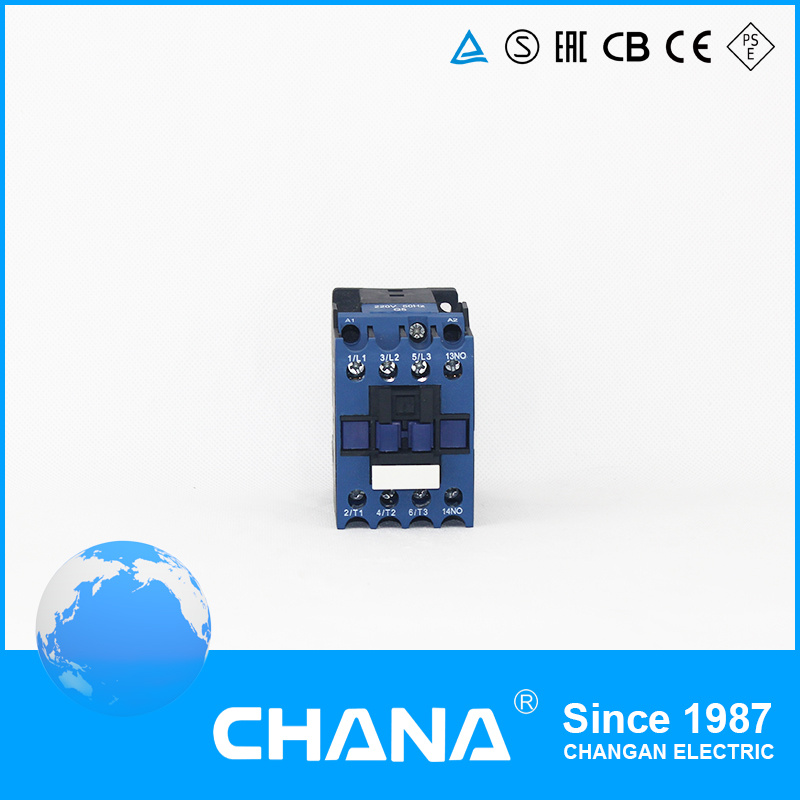

3 Phase Sac Coil Motor Control 9A - 95A Contactor

Name: 3 Phase Sac Coil Motor Control 9A - 95A Contactor
Brand: all-electronics-online.com
SKU: 809945085
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 2.8-15/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-09
Coil:	AC
Frequency:	50/60Hz

Product Description

electrical 3phase 24v coil 220v AC coil motor control 9-95A types of contactor

Product Description
Specifications:
CC1-D=LC1-D,
CC1-F=LC1-F,
CC1-K=LC1-K

1,General
Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC..
Standard:IEC/EN 60947-4-1

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Control Coil Valtage (Dc Coil Operation)

Volts(VAC)

110

220

Code

2 Technical Date

Model No.		CC1-09	CC1-12	CC1-18	CC1-25	CC1-32	CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	9	12	18	25	32	40	50	65	80	95
Rated Operation Current Ue=380/415V	AC-4 Le(A)	3.5	5	7.7	8.5	12	18.5	24	28	37	44
	220/240 kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
Power Controlled 3Ph Cage Motor AC3	380/415 kW	4	5.5	7.5	11	15	18.5	22	30	37	45
Power Controlled 3Ph Cage Motor AC3	660/690 kW	5.5	7.5	10	15	18.5	30	33	37	45	45
Eletrical life(x10^3 operations)	AC-3	1000	1000	1000	1000	800	800	600	600	600	600
Eletrical life(x10^3 operations)	AC-4	200	200	200	200	200	150	150	150	100	100
Mechainical life(x10^3 operations)		10	10	10	10	8	8	8	8	6	6
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
Matched Fuse	A	20	20	32	40	50	63	80	80	100	125
Main Circuit		3P or 4P
