3 Phase Step up or Down Cast Resin Dry Type Transformer

Prod Model:	SCB10
HS Code:	8504329000
Application:	Power Substation
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Asian Sun

Product Description

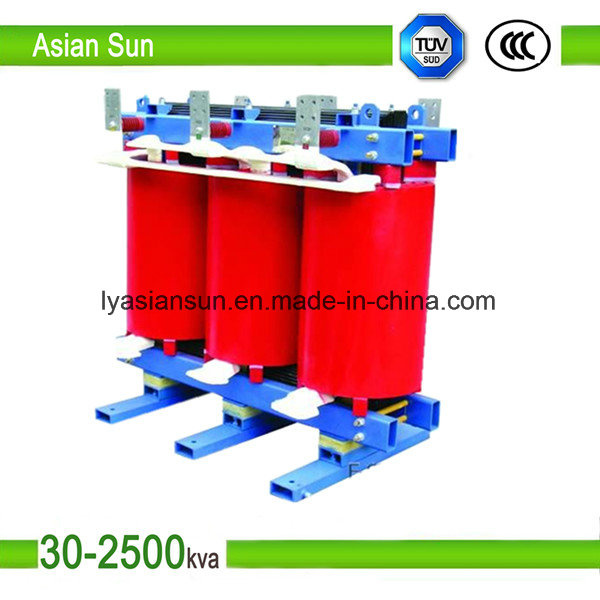

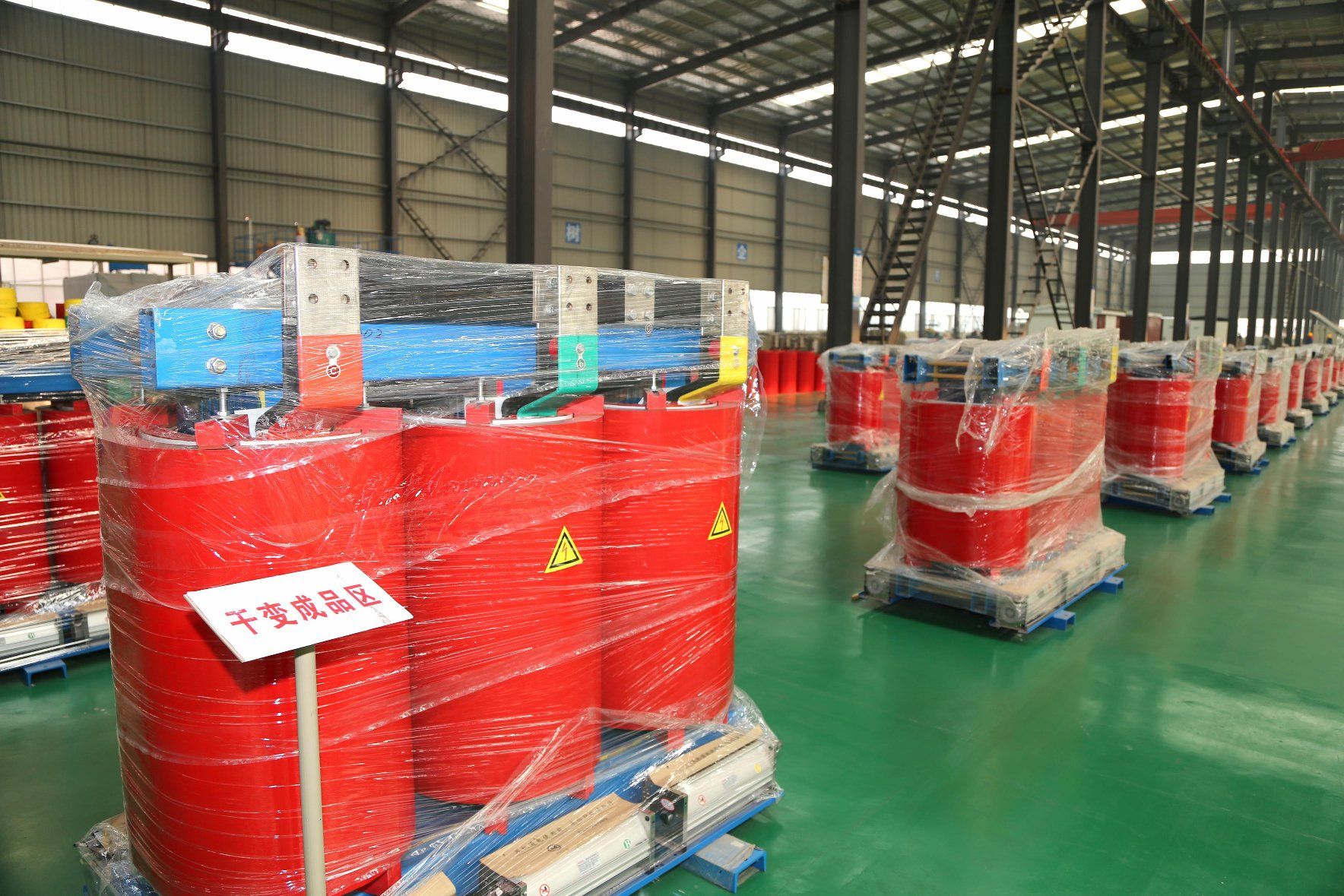

3 phase step up or down cast resin dry type transformer
  Performance Feature
1, Rated capacity:30KVA--2500KVA
2, High voltage:6KV/6.3KV/10KV, low voltage:0.4KV
3. Safe, reliable, no pollution, can operate directly in the load center
4. High mechanical strength, strong ability to withstand short circuit, low partial discharge, good thermal stability, high reliability, long use life;
5.Low no-load loss, high performance, low noise, efficient energy conservation;
6. High thermal performance, high operation capacity,  forced air cooling can improve the operation of capacity.
7. Good moisture resistant ability, can operate in high humidity and other harsh environments
8. With features of environmental protection, flame retardant, explosion- proof and free of maintenance;
9. Small size, light weight

  The product has the following advantages:




1.High mechanical strength and strong short circuit resistance ability;
2. Good moisture resistance and run with 90% humidity;
3. Advanced structure, small dimension, light weight and low partial discharge;
4. High insulation level and equal electric field distribution;
5. Easy maintainability;
6. Strong heat dissipation, run with 150% rated load under forced air cooling;
7. Fireproof, explosion-proof, pollution-free and low-noise and able to be directly installed in the load center.
Applications :
The product can be widely used in places with high fireproofing requirements, such as power transmission and transformation system, high building, commercial center, sport stadium, petrochemical enterprise, metro, station and airport. In China, the epoxy resin cast dry type power transformer has the richest manufacturing experience and the best running performance.

Introduction

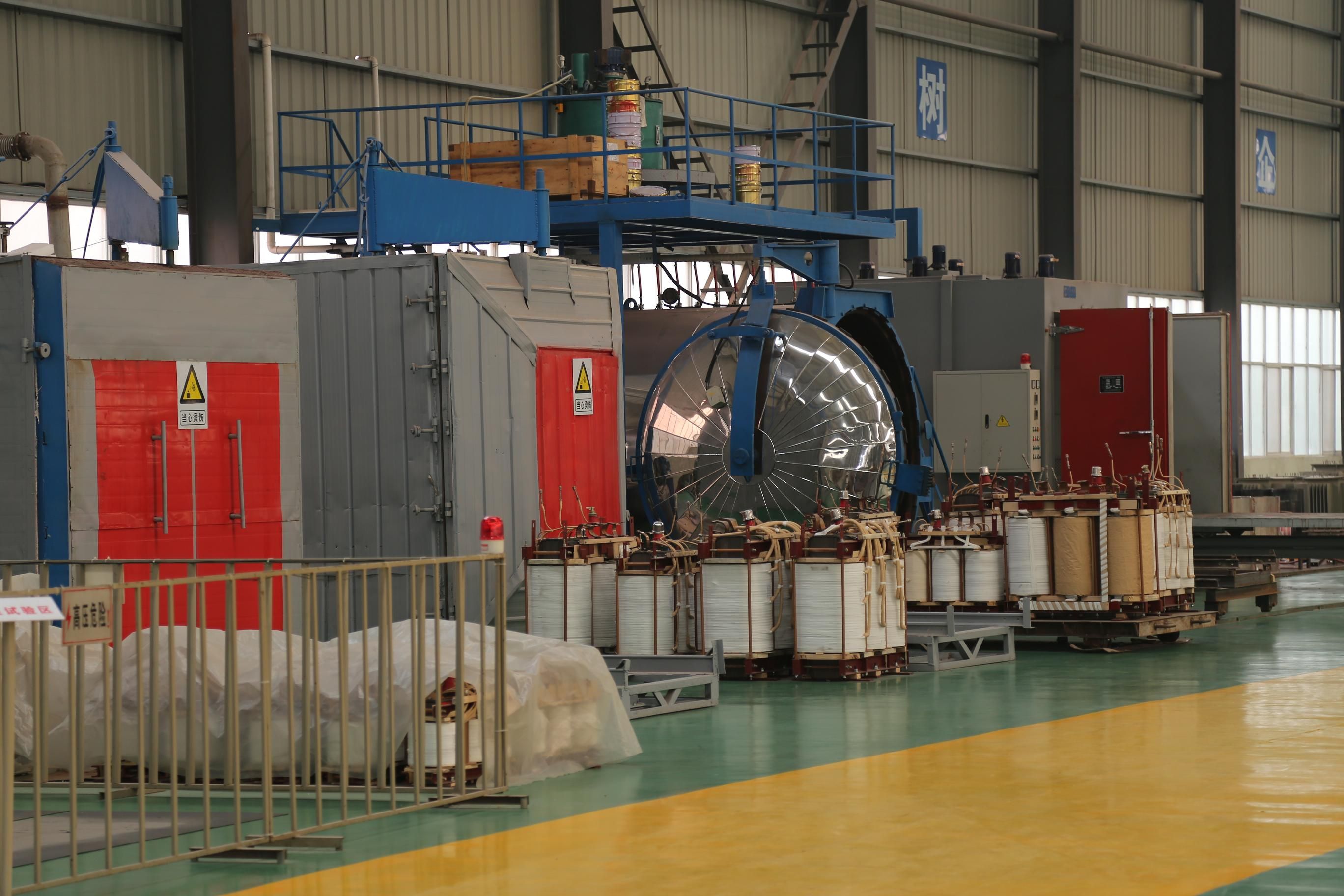

Dry type transformer is in accordance with GB 6450-86 "Dry-type Power Transformer", GB 10228-1997 "Technical Parameter and Requirement of Dry-type Power Transformer"and GB 1094.1-1996 "Power Transformer Section 1 General", and it is the Grade F or H insulation dry-type power transformer cast and molded by epoxy resin.

Type Illustration
S  C  B  10 - (No.1) / (No.2)
S    ---    Three Phase
C    ---    Solid insulation
B    ---     Low voltage foil winding
10   ---   Code of performance level
(No.1)  ---    Rated capacity (kva)
(No.2)  ---     Voltage rating (kv)

Technical Data of 10kV  SCB(10) Cast Resin F Insulation Class Dry Type Power
SCB10-30-2500 Series Dry Transformer Technical Data Sheet
Type	Rated Voltage	No-load losses	Different insulation heat resistance level Under the load loss (W)			No-load Current (%)	Weight(kg)	Dimension(mm)	Outer Demension(mm)	Track Gauge
			100°	120°	145°			Length	Length
SCB10-30	30	0.19	675	731	760	2.6	354	845	1520	400
SCB10-50	50	0.27	941	1007	1359	2.4	496	930	1520	550
SCB10-80	80	0.37	1320	1387	1482	2	565	985	1520	550
SCB10-100	100	0.4	1490	1492	1691	2	590	1020	1520	550
SCB10-120	120	0.47	1748	1862	1995	1.6	725	1040	1520	550
SCB10-160	160	0.54	2014	2138	2290	1.6	836	1060	1520	550
SCB10-200	200	0.63	2385	2546	2727	1.6	1020	1120	1520	660
SCB10-250	250	0.72	2613	2774	2964	1.6	1150	1210	1600	660
SCB10-315	315	0.81	3287	3487	3734	1.4	1490	1240	1700	660
SCB10-400	400	0.99	3772	4009	4249	1.4	1630	1320	1700	660
SCB10-500	500	1.18	4617	4912	5254	1.4	2050	1300	1700	670
SCB10-630	630	1.36	5558	5995	6327	1.4	2240	1320	1700	820
SCB10-800	800	1.54	6584	6992	7486	1.54	2400	1450	1700	820
SCB10-1000	1000	1.79	7695	8180	8750	1.2	3250	1525	1900	820
SCB10-1250	1250	2.21	9149	9794	10431	1	3980	1715	1900	820
SCB10-1600	1600	2.48	11115	11780	12607	1	4675	1720	2200	820
SCB10-2000	2000	3.06	13680	14535	15552	1	5250	1840	2260	1070
SCB10-2500	2500	3.6	16245	17271	18487	0.8	6065	2015	2360	1070
SCB10-1600	1600	2.48	12350	13015	13927	1	4675	1720	2200	820
SCB10-2000	2000	3.06	15105	16055	17100	0.8	5250	1840	2260	1070
SCB10-2500	2500	3.6	16245	17271	18487	0.8	6050	2015	2300	1070

 Trade Terms
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Qingdao,Tianjin or Lian yung ang Port
3.Discounts: offered based on order quantities
4.Delivery time:7-15 days according to order quantities.

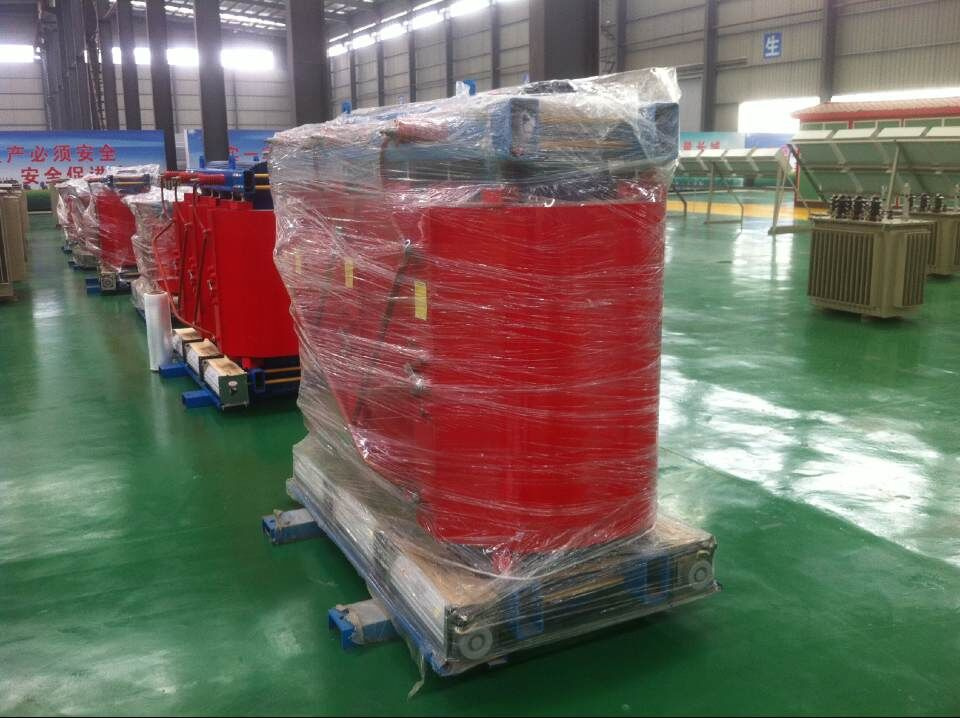

5.Packaging Detail: Transformer main body in nude , and the accessories packing in seaworthy standard wooden case



Contact with us
Ms.Bella
