3 Pin Front Panel Mounted Wire to Board Waterproof Connector

Prod Model:	117
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	M12 3 Pole Waterproof Connector
Material (External):	Nylon + Gf
Contact Material:	Brass with Gold Plated
Current Rating:	5A
Voltage Rating:	500V
Waterproof Rating:	IP68
Cable Max. Diameter:	7.5mm
Panel Cut-out Od:	12mm
Contact Resistance:	<5
Pins Range:	2, 3, 4, 5, 6, 7, 8
Type:	Socket Terminals
Material:	Copper
Character:	Environmental Protection
Species:	Terminal
Production Process:	Welding
Shape:	Round
Brand:	Leader

Product Description

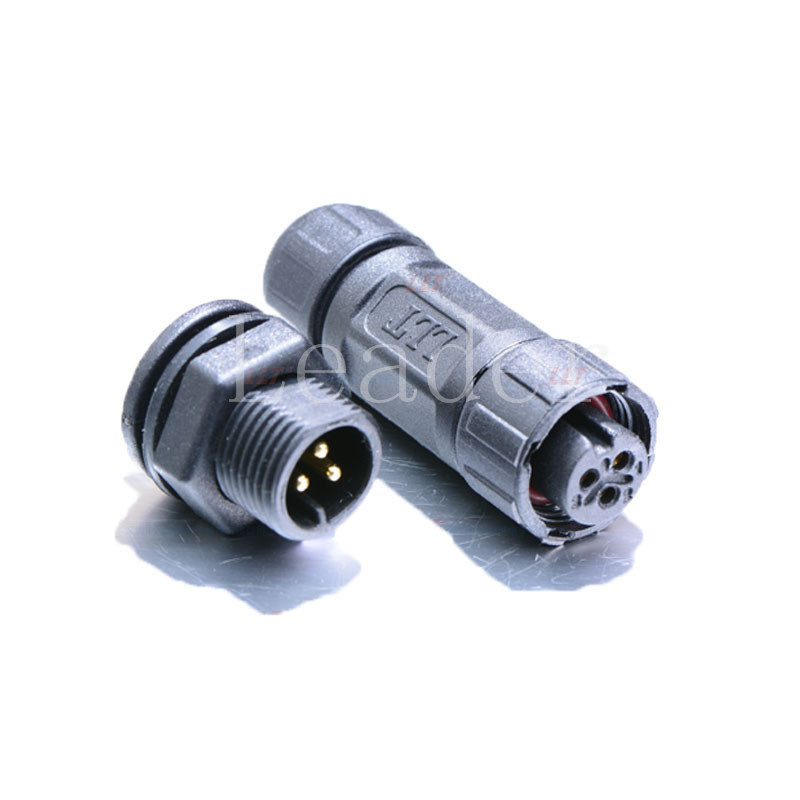

IP68 Waterproof M12 3 Pin Front Panel Mounted Wire to Board Connector, Cable Accessories Cable Wire Connector

Accepted Max. In-line Cable OD: 7.5 mm
Working temperature: -45°C~+105°C
Male panel rear mounted, mated with female plug


Model No.	M12BMF03
Material	Connector Shell	Nylon (PA66)+GF UL94V-01/16''
	Contact	Brass with Gold Plated
	Sealing	Silica Gel
Property	Current Rating	5A
	Voltage Rating	500V
	Contact Resistance	<5m
	Insulation Resistance	10M at DC 400V
	Breakdown Voltage	1500V/1minute
	Temperature Rating	-45ºC~+105ºC
	Durability (Plug/Unplug)	3000 times
	Waterproof Rating	IP68
	Cable Max. Diameter	7.5mm
	Panel Cut-out OD	12mm
	Pins Range	2,3,4,5,6,7,8
Certificate	CCC; CE; ROHS
