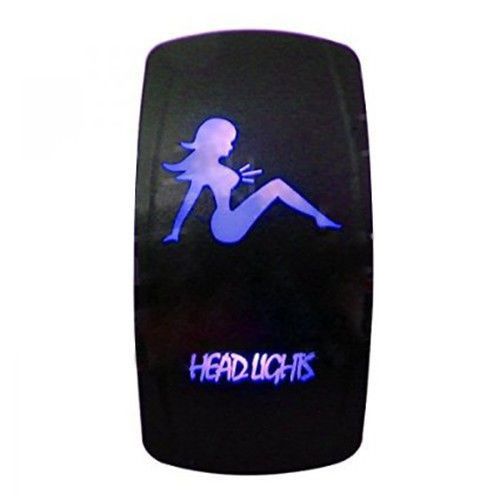

3 Pin Laser Backlit Blue Rocker Switch Head Ughis 20A 12V on/off LED Light Lady

Prod Model:	Rocker switch-86
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Panel Cutout Dimesion:	36.8*21mm
Pin:	3 Pins
Certifications:	CE, Rosh, ISO9001
Rating Ampere:	20A
Max. Voltage:	24V
DC:	12V/20A, 24V/10A
Functions:	on - off Switch
Switch Cut Out Size:	0.83'' X 1.45''.
Colors:	Black
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	White,Blue,Black,Orange,Red Gray,Grey

Product Description

Product Description
Packaging & Delivery

Packaging Details:	50pcs in a box, normal carton
Delivery Detail:	7-14days after confirm payment



20 Amp 12 Volt (ON)-OFF-(ON) Rocker Switch
7 Pin design,20 Amp 12 Volt (ON)-OFF-(ON) Rocker Switch.
LASER ETCHED WITH TWO L.E.D. LIGHTS
Single Pole Single Throw (ON)-OFF-(ON) Switch
All symbols are laser etched directly onto the switch face to ensure long image life.
Waterproof.Black hard surface rocker
Automatic Reset Function/Momentary Rocker Switch
20 Amp 12 Volt (ON)-OFF-(ON) Rocker Switch LASER ETCHED WITH TWO L.E.D.
LIGHTS Single Pole Single Throw (ON)-OFF-(ON) Switch.
Black hard surface rocker. Surface size is 2" (50mm) x 1"(25mm). Standard size mounting hole 1.41"(36mm) x .86"(22mm).
This is the standard size of most switch holes in modern vehicles. Upper light is ON when the switch is pressed UP.
Lower LED is independent and can be wired to separate dash light circuit.
Both LEDs have separate grounds. No rear barriers between terminals. Lower light Waterproof rating of IP66.
All symbols are laser etched directly onto the switch face to ensure long image life.
This rocker switch is a 20 amp switch and can be used for 12 or 24 Volt applications. These are completely waterproof and can be used in UTV's, Boats, Cars, Trucks, Sand Rails, as well as any other vehicle.
