| Prod Model: |
LP-24-J03SX-01-001, LP-24-C03PE-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Specification: |
2.5mm2 ~ 4mm2 /14~12 AWG |
| Diameter Range: |
Od8mm ~12mm |
| Rated Current: |
20A |
| Operating Voltage: |
500V |
| Gender: |
Female |
| Connecting Mode: |
Easy Locking Type |
| Assembly Wire: |
Soldering/ Crimping |
| Waterproof Cover: |
Silica Gel |
| Flammability Rating: |
UL94-V0 |
| Cooper Pins: |
Opper Alloy (Gold-Plated 4u) |
| Standard: |
Swiss Standard |
| Function: |
Charger Plug |
| Certification: |
PSB |
Product Description
3 Pin Male Plug M24 Universal
Power Adaptor Cable connector EV ChargerProduct Description:LP series electrical connectors IP65/IP67 1.Zinc alloy material against high-frequency noise and electromagnetic interference

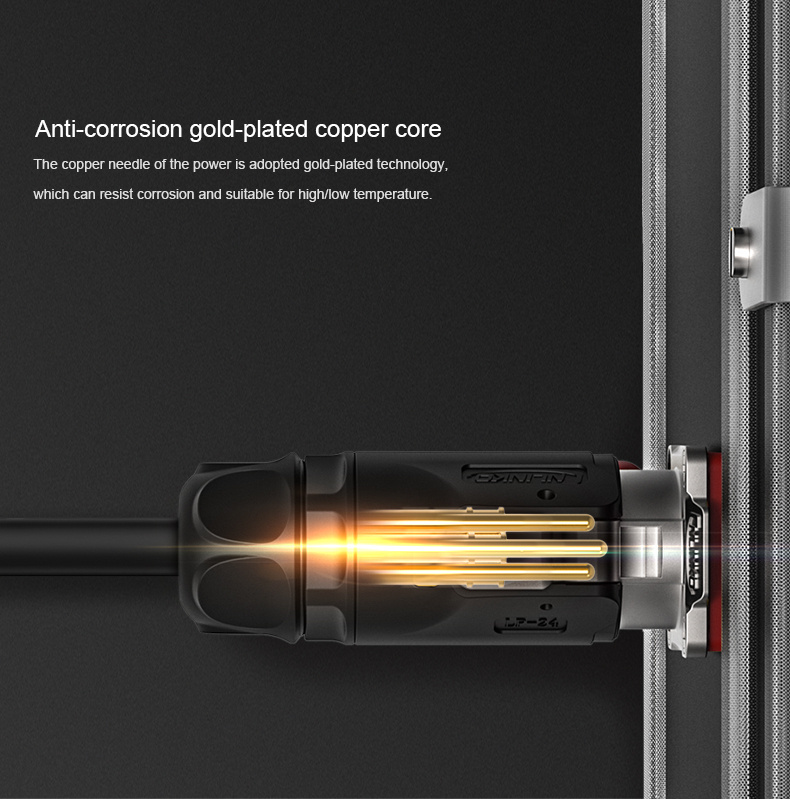

2.gold-plated contact, high performance of corrosion resistance and
3.electrical conductivity effectively deals with temperature rise.
4.PBT shell performance stable, compression, anti-explosion, and anti-deformation
5.rated current: 20A rms
6.protection level:IP65/IP67
| LP-24-J03PE-01-001, LP-24-C03PE-01-001 |
| Specifications: | |
| Connecting mode: | PLUG /UNPLUG |
| Protection level: | IP65/67 |
| Cable specification: | 2.5mm2 ~ 4mm2 /14~12 AWG |
| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ3.0*3 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
| Material: | |
| Shell&insulated parts: | High-performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) |
| - Vibration resistance, impact resistance, stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
