Shenzhen Changyingtong Precision Electronics Co., Ltd. >> 3 Pin PVC IP67 Waterproof Cable for LED

3 Pin PVC IP67 Waterproof Cable for LED

3 Pin PVC IP67 Waterproof Cable for LED
Price: Negotiable/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: CYT021
Color: Black or Customized
Cores: 2 to 6
Length: Depends on Your Need
Weight: Depends
Material: PVC,Copper or Customized
Gender: Male to Female
Gauge: 14AWG to 24AWG
Current Rating: 2~6 a
Voltage Rating: 10~250V
Waterproof Rating: IP67
Conductor Type: Stranded
Application: LED Lighting
Conductor Material: Copper
Insulation Material: PVC
Certification: IP67 IP68
Type: Waterproof
Range Of Application: LED Lighting
Brand: Cyt

Product Description

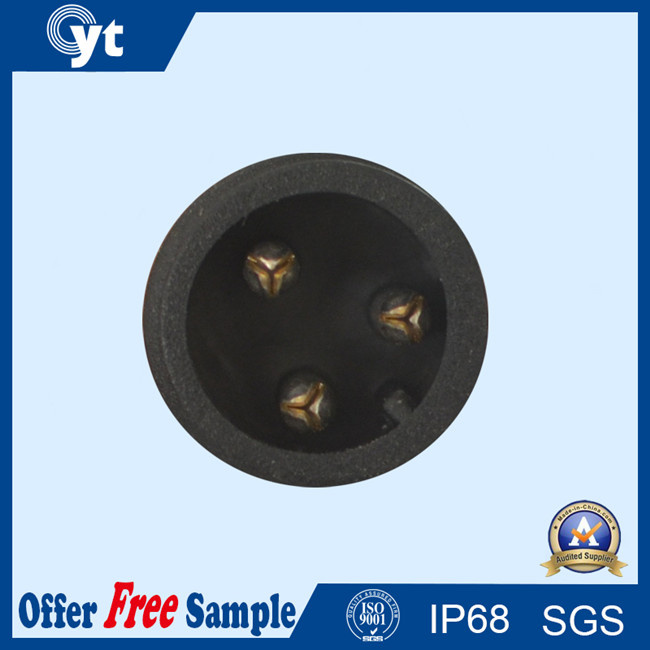

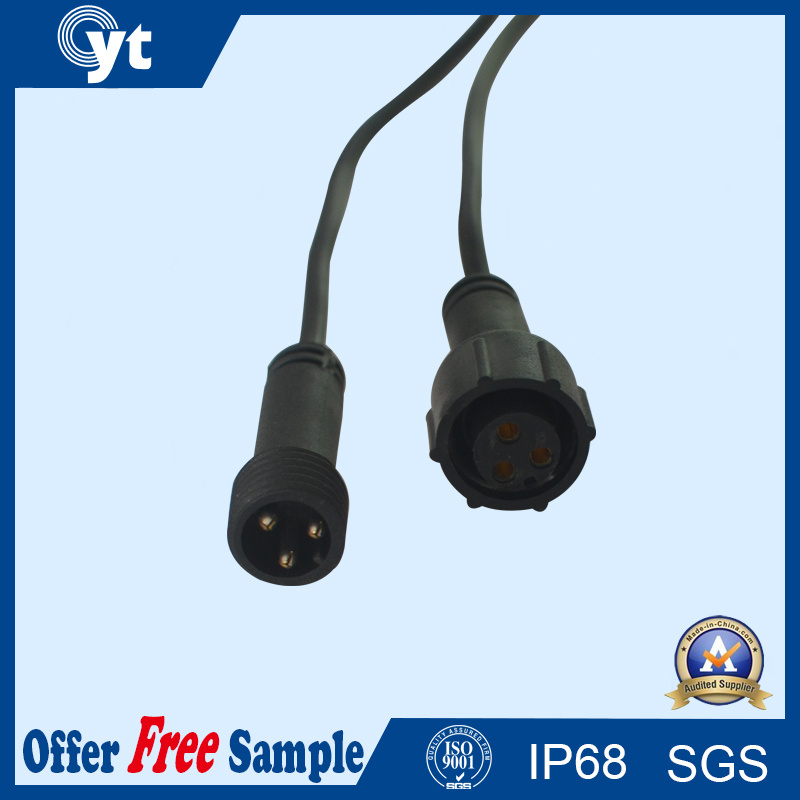

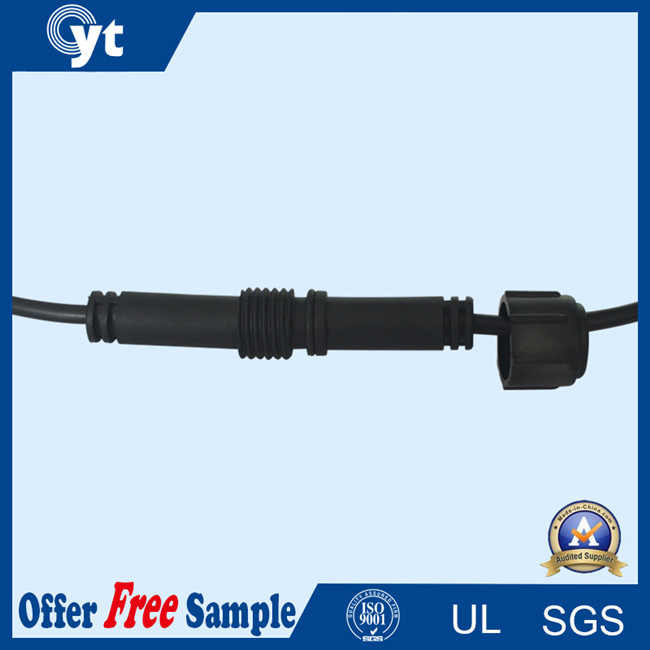

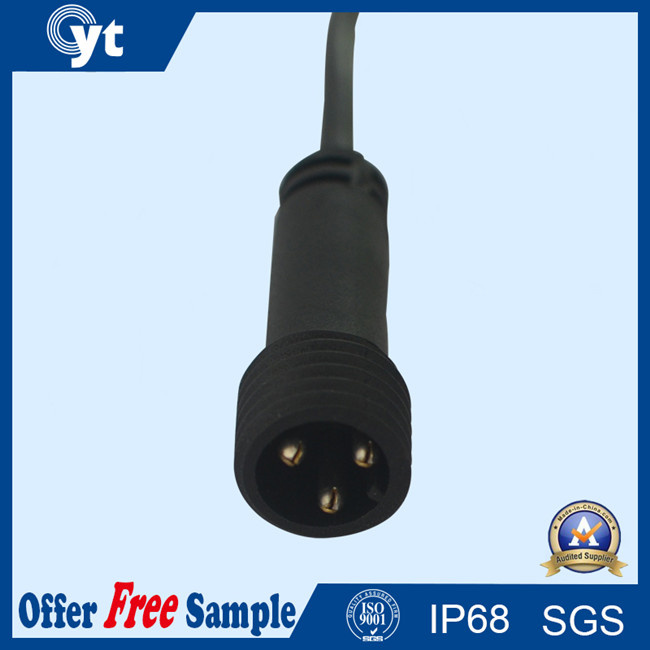

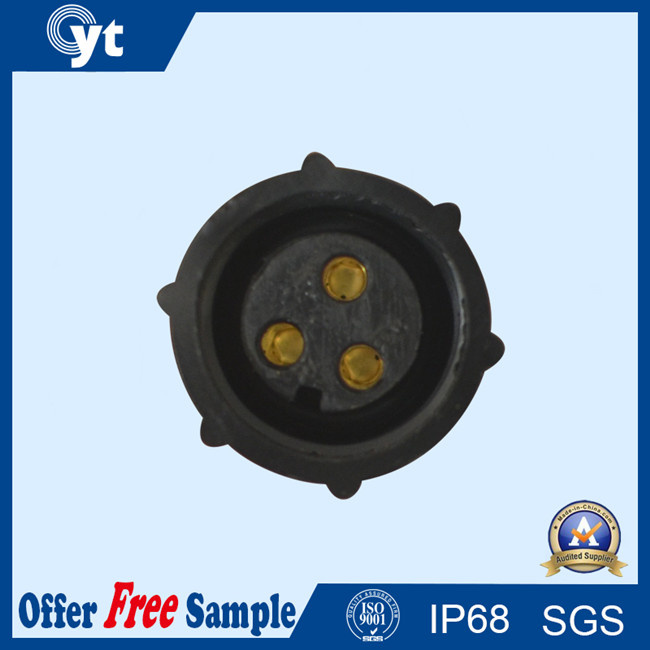

 3 PIN PVC IP67 Waterproof Cable For LED
* Model number : CYT021
* PVC material options
* Wire diameter : 3.5~7.2mm
* Each outputs could be attached with a female/male connector if requried
* We could help to attach regular cables in any length and process terminals if required
* Customer's drawings and designs are welcome,  as we have our own professional R&D team to provide you various solutions.
 3 pin Black  male female  waterproof connector cable for LED lighting
 1          Model No.  CYT021
 2          Material       Connector Body  White,Black
 3  Contact  Brass
 4  Sealing  Silica Gel
 5          Property               Current Rating  2~6 A
 6  Voltage Rating  10~250V
 7  Contact Resistance  <10mΩ
 8  Insulation Resistance  10MΩ
 9  Breakdown Voltage  1.5KV/1minute Moist
 10  Temperature Rating  -30°C~+105°C
 11  Durability(Plug/Unplug)  3000 times
 12  Waterproof Rating  IP67
 13  Cable Max. Diameter  7.2mm
 14  Pins Range  2~6

We are a professional producer on waterproof cable for LED lighting goods, all kinds of lamps's cable, AC power wire, DC wire, tube wire, communication's cable, wire harness for automobile, home appliance, medical and so on, also do OEM orders for different company.

We have 13 years experiences on this industry.

And our sales volume is about 300`500 million USD in the past 10 years.

We have Injection molding machine, Automatic terminating machine, Pneumatic stripper, Automatic wire cutting machine, Testing machine more than 40 units. Currently there are over 130 employees, and a fabrication area of more than 3, 000 square meters. Technical force and produce ability is abundant.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

We have exported large quantity to North America, Southeast Asia and European countries, Like Germany, Italy, USA, Canada and so on.

We are looking forward to building the business cooperation with all of you. Hope we can develope into a big scale company in the future.
