| Prod Model: |
B3400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Life: |
100000 Cycles |
| Max. Current: |
13A |
| Max. Voltage: |
250V AC |
| Temp(C): |
105°c |
| Spcoa: |
22-14AWG UL1015 |
| Rotation Angle: |
45 |
| Apply To: |
Oven, Electric Heater, Electric Cooker etc. High |
| Rotary Number: |
Single Button |
| Usage: |
Digital Products |
| Standard: |
Standard |
| Structure: |
Self-Locking |
| Operation: |
Knob |
| Certification: |
CQC,UL,TUV,CB |
| Condition: |
New |
Product Description
Specifications

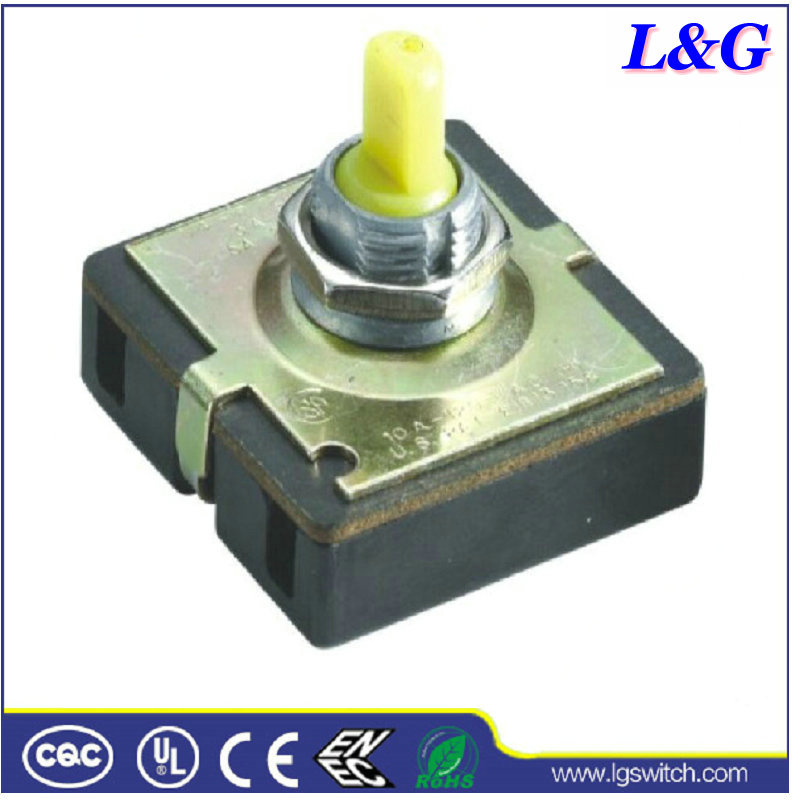

B3400-413A 10(3)A 3 Position Rotary speed Switches
B3400-413A 10(3)A-250V AC 3 Position oven Rotary Switches
Rotary Switches with electrical rating:13A-120V AC, 10(3)A-250V AC,
B3400-413A 3 Position Electric Cooker Rotary Switches
B3400-413A Oven 3 Position Heater Rotary Switch
Rotary Switches with electrical rating:13A-120V AC, 10(3)A-250V AC, For Oven,
Rotary Switch
Electrical Rating |
13A-120V AC, 10(3)A-250V |
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 105°C |
| Pol/Thr | 1/2 or M |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 22-14AWG UL1015 |
| Rotation Angle |
45°
Other available angle: 22.5°, 30°, 18 °, 60°, 90° |
Assemble Way |
1) #B3400-413A: Nut Mounted
2) #B3400-413B: Jockey for position
3) #B3400-413: Pair of mounting holes |
Material: |
Cover: Zinc plating Iron |
| Insulating piece: PF Grade:pfcp207(XPC) |
| Rotary:PA66 Flame rating: V-2 or V0 Temperature:130°C Grade: Dupont |
| Movable Contract: Copper |
| Terminals: Brass |
| Base: Bakelite Flame rating: V0 Temperature:130°C Grade: Dupont |
Apply to: |
Oven, Electric Heater, Electric Cooker etc. High-Power home appliances |
Product Description
Item | B3200-42 |
Material | V0 fireproof PC and cooper and metal |
Rating | 13A-120V AC 10(3)A-250V AC |
Life cycles | 10000 |
Certificates | TUV,UL,CUL,CB,PSE,CQC |
Color | Black and customized |
Size | And assemble distance is 36 mm |
| |
Moq | 1000pcs |
Service type | OEM and ODM are welcome |
NW&GW of products | NW 16.01g/pcs GW 17.2g/pcs |
Package details | The carton size for exporting is 33*29*24cm. |
Production capacity | 20000pcs/day ,the material prepare for 7-10 days |
Lead time | According to the order quantity ,as usual,15-20days for regular products |
Payment terms | T/T,L/C |
Loading port | Shenzhen or customized |
