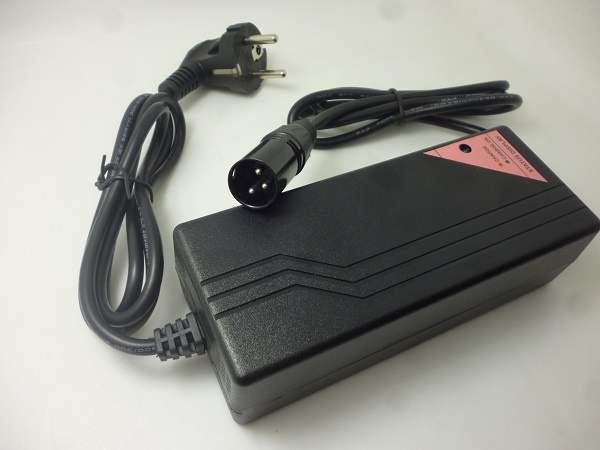

3-Stages Charging Mode 24V 5A Lead Acid Battery Charger

3-Stages Charging Mode 24V 5A Lead Acid Battery Charger
Price: US $ 11/Piece
Min Order: 200/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: QW240-050-S
Input Voltage: AC100-240V 50/60Hz
Desktop Type: Yes
Voltage: 24V
Current: 5A
Delivery Date: 15days
Warranty: One Year
Charger Type: Electric Charger
Type: Lead Acid Battery
Nominal Voltage: 24V

Product Description

3-stages charging mode 24V 5A lead acid battery charger

Specification:
charging modeCCCV
Led indicate charging statusRed---in charging
Green---fully charged
3-stages charging mode
Constant current5.0A
Constant voltage28.8-29.4Vdc;
Floating voltage27.0-27.6Vdc;
voltage precision+/-1.0%
protectionSafety protection
Short circuit protection
Battery polarity error protection
Over voltage protection
No drain current from battery when AC is off
Input100-240Vac 50-60Hz
Output24.0Vdc
charging current5.0A
Dimension152.5x63.0x45.0mm
Weight600g

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
