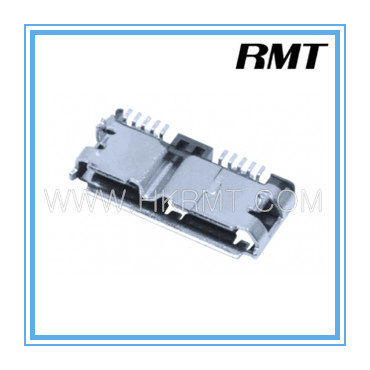

3.0 USB Connector (USB344-015B-161031)

Name: 3.0 USB Connector (USB344-015B-161031)
Brand: all-electronics-online.com
SKU: 778209065
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	USB344-015B-161031
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Female
Application:	FPC

Product Description

1.MATERIAL:
1.1 Housing:thermoplastic plastics
1.2 Contact1:Copper Alloy
1.3 Contact2:Copper Alloy
1.4 Front Shell:SPCC, Ni Plating.
Middle Shell:SPCC T=0.30mm
1.5 terminals: contact area:Gold plated in contact area:
Tin plated in termination
Nickel Plated overall

2.CHARACTERISTICS:
2.1 Rating Voltage : 30V AC.
2.2 Rating Current:PIN1&PIN4(Vbus&Correponding ground PIN)1.8A MAX Other PINS 0.25A min.
2.3 Contact Resistance:PIN1&PIN4:30 mΩ MAX. Other PINS: 50 mΩ
2.4 Insulation Resistance:100 MΩ MIN.
2.5 Withstanding Voltage:AC 100V between
adjacent contacts
2.6 Mating force:35N MAX
2.7 Extraction force:10N Min
2.8 Life test:1500Cycles MIN.
2.9 Temperature Range:-30ºC~+80ºC.
