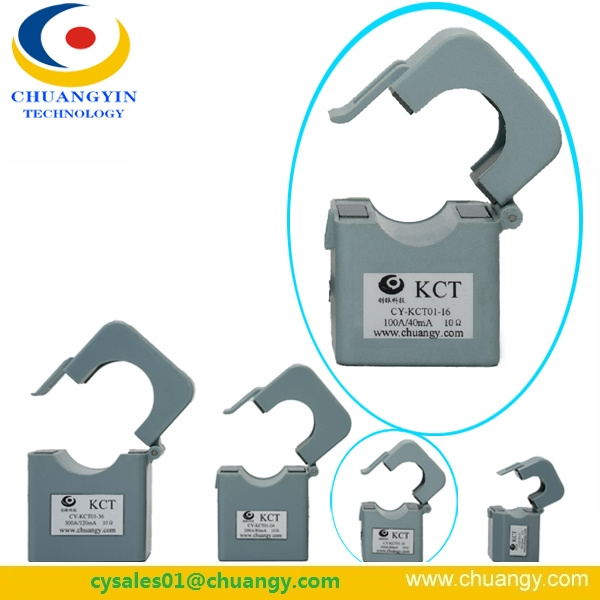

300/5 Split Core Current Transformer
| Price: |
US $ 71-75/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
cy-kct01A |
| Accuracy: |
0.5 |
| Insulation Class: |
Cat E |
| Primary Current: |
100-6000A |
| Customized: |
Customized |
| Secondary Current: |
5A or 1A |
| Split Core Current Transformer: |
Kct02 Series |
| Split Core Current Transformer (Kct02 Se: |
Split Core Current Transformers (Kct02 Series) |
| Color: |
Customized |
| Coil Structure: |
Toroidal |
| Frenquency: |
50/60Hz |
| Application: |
Spilt Core Current Transformer |
| Type: |
Current Transformer |
| Phase: |
Single |
| Voltage Transformation Principle: |
Chuangyin |
Product Description
For detailed information: Please browse our website http://splitcorect.chuangy.com/en/index.aspx
Series Split Core Current Transformers CY-KCT02
Features:.High quality compressive measurements.Available in a wide range of transformer ratings.Accuracy up to Class 0.5.Foot or burbar mounted Typical Application:.Switchgear.Energy Management Systems.Instrumentation Equipment.Split Core Current Transformers are designed for assembly to an existing electrical installation no need to dismantle the primary busbar or cables. Model Code: Technical data:| Highest voltage for equipment | 720V(0.72KV)maximum |
| Power-frequency withstand voltage | 3KV for minute |
| Primary current Ipn | 100-6000A |
| Secondary current Isn | 5 or 1A |
| Frequency | 50/60Hz |
| Accuracy class | Up to 0.5 |
| Continuous thermal current | 1.2 Ipn |
| Mounting hardware | Plug -in metal feet for wall or base mouting or moulded busbar mounting |
| Enclosure | Flame retardant grade classifield UL 94v-0 |
| Insulation class | E |
| Ambient temperature | -20ºC+70ºC |
| Standards | IEC/EN 60044-1,GB1208,IEEEC57.13 |
Dimension: Date
Model Number | A | B | C | D | E | F | G | H | I | J | k |
| CY-KCT02-223 | 20 | 30 | 50 | 89 | 110 | 34 | 47 | 40 | 32 | 52.5 | 67.5 |
| CY-KCT02-258 | 50 | 80 | 78 | 114 | 145 | 32 | 32 | 32 | 33 | 52.5 | 67.5 |
| CY-KCT02-288 | 80 | 80 | 108 | 144 | 145 | 32 | 32 | 32 | 33 | 52.5 | 67.5 |
| CY-KCT02-812 | 80 | 120 | 108 | 144 | 185 | 32 | 32 | 32 | 33 | 52.5 | 67.5 |
| CY-KCT02-8 | 80 | 160 | 120 | 184 | 245 | 52 | 47 | 52 | 38 | 61 | 76 |
Electrical ParameterDate
Model Number | IPN(A) | Isn(A) | | Window | weight |
| CL0.5 | CL1 | CL3 |
CY-KCT02-223
| 100 | 5/1 | / | / | 1.5 | 20*30 | 0.75 |
| 150 | 5/1 | / | / | 2 |
| 200 | 5/1 | / | 1.5 | 2.5 |
| 250 | 5/1 | / | 2.5 | 3.75 |
| 300 | 5/1 | / | 2.5 | 3.75 |
| CY-KCT02-258 | 300 | 5/1 | / | 2.5 | 5 | 50*80 | 0.9 |
| 400 | 5/1 | 2.5 | 3.75 | 5 |
| 500 | 5/1 | 2.5 | 5 | 10 |
| 600 | 5/1 | 2.5 | 5 | 10 |
| 750 | 5/1 | 5 | 7.5 | 10 |
| 800 | 5/1 | 5 | 7.5 | 10 |
| CY-KCT02-288 | 800 | 5/1 | 5 | 7.5 | 10 | 80*80 | 1.25 |
| 1000 | 5/1 | 5 | 10 | 15 |
| 1200 | 5/1 | 5 | 10 | 15 |
| Cy-KCT02-812 | 1200 | 5/1 | 7.5 | 10 | 15 | 80*120 | 1.25 |
| 1500 | 5/1 | 10 | 15 | 20 |
| 1600 | 5/1 | 10 | 15 | 20 |
| CY-KCT02-816 | 2000 | 5/1 | 10 | 15 | 25 | 80*160 | 4.30 |
| 2500 | 5/1 | 10 | 15 | 25 |
| 3000 | 5/1 | 10 | 15 | 25 |
| 4000 | 5/1 | 10 | 15 | 25 |
| 5000 | 5/1 | 10 | 15 | 25 |
| 6000 | 5/1 | 10 | 15 | 25 |
Usage Parameter:Method1.moulded busbar mountingMethod2. Metal feet for wall or base moutingMethod3.moulded busbar mounting and metal feet mounting (double method) potencial transformadore
TRANSFORMADORES MONOFÁSICOS CONVENCIONALES ETTRANSFORMADOR EXTERIOR RESINA/TERMOPLASTICOTRANSFORMADOR EXTERIOR EPOXY CICLOALIFÁTICO HIDROFÓBICO(HCEP)TRANSFORMADOR EXTERIOR EPOXY CICLOALIFÁTICO HIDROFÓBICCONote:Please browse our website and product catalogue for detailed information of products.Note:Please browse our website and download product catalogue for detailed information. SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD. ( CY Group )Certification: KEMA, ISO9001, UL, SGS, CE.( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China, Post code: 518057Tel: +86 0755-86000716/ 86007806Fax: +86 0755-86000614Web: www.chuangy.comArvin Q.Business Development ExecutiveMob: +86 13925284622
