| Prod Model: |
2.5mm twin and earth |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Certificate: |
Ce, ISO 9001 |
| Rated Voltage: |
300/500V |
| Popular Size: |
2X1.5mm 2X2.5mm 2X4mm |
| Key Words 1: |
2.5mm Twin and Earth |
| Key Words 2: |
4mm Twin and Earth |
| Key Words 3: |
6mm Twin and Earth |
| Type: |
Insulated |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
Product Certificate(Son) |
| Conductor Type: |
Solid or Stranded |
| Range Of Application: |
Building |
| Brand: |
Jytop |
Product Description
Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.

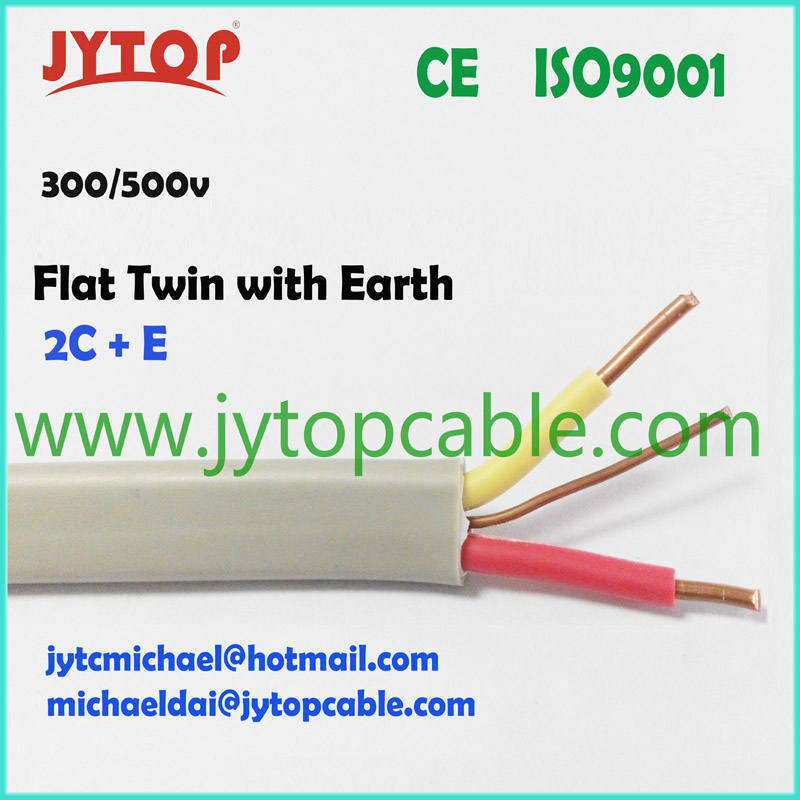

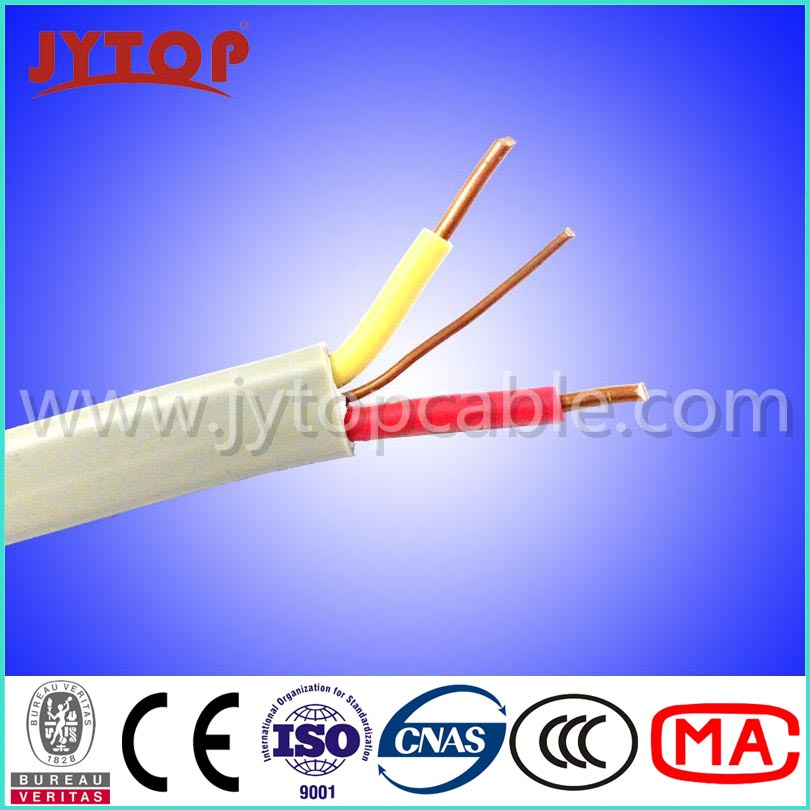

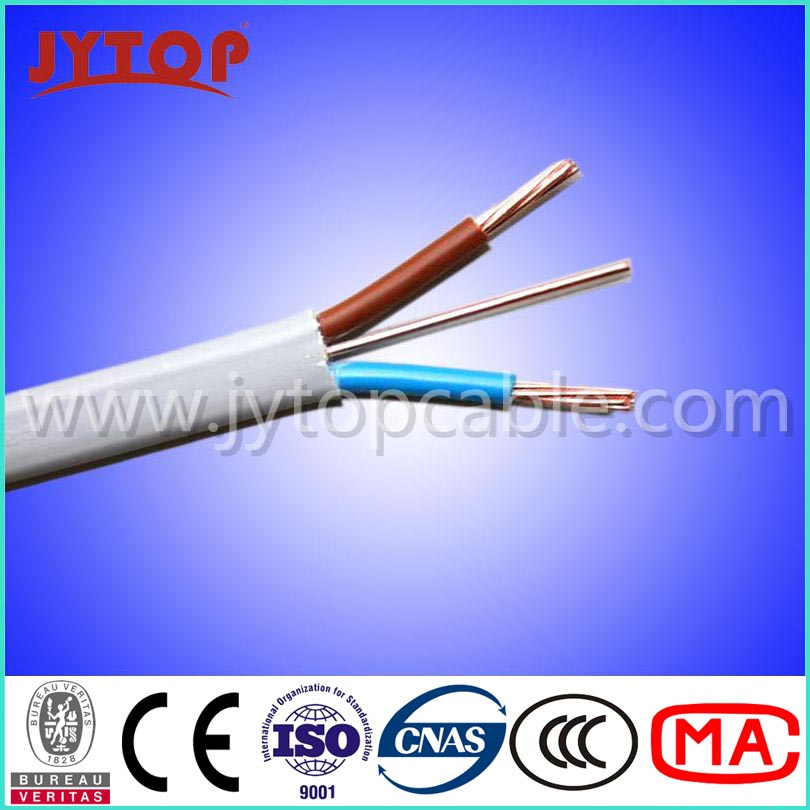

5. Serve everyone with heart and soul.300/500v 2.5mm Twin and earth Cable Application: Designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards: BS6004, CENELEC HD21.3

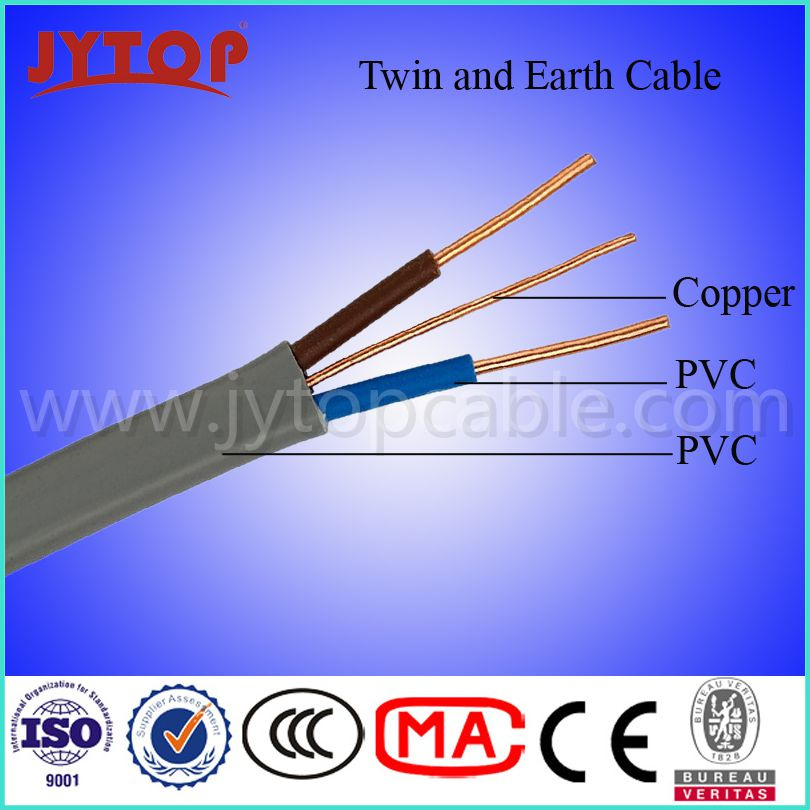

Conductor: Copper conductors to BS EN 60228: 2005 (previously BS6360)
Insulation: PVC (Polyvinyl Chloride) Type TI 1 to BS7655
Insulation Colour: Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink
Temperature Rating: 0° C to +70° C
Minimum Bending Radius: 6 X overall diameter
NOTE:
If you want to know more details about 2.5mm Twin and earth Cable this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
Twin and Earth cable technical data.
Size of conductor | Nominal thickness
of insulation
mm | Size of earth conductivity
conductor
no./mm | Nominal thickness of sheath
mm | Mean overall dimensions
| Approx. net weight per km
kg |
Nominal
cross-
sectional area
mm 2 | Number and diameter of wires
mm | Lower limit
mm | Upper limit
mm |
| 2x1.0+E | 1/1.13 | 0.6 | 1/1.13 | 0.9 | 4.0*7.2 | 4.7*8.6 | 70 |
| 2x1.5+E | 1/1.38 | 0.7 | 1/1.13 | 0.9 | 4.4*8.2 | 5.4*9.6 | 85 |
| 2x2.5+E | 1/1.78 | 0.8 | 1/1.13 | 1.0 | 5.2*9.4 | 6.2*11.0 | 120 |
| 2x4+E | 7/0.85 | 0.8 | 1/1.38 | 1.0 | 5.6*10.5 | 7.2*13.0 | 175 |
| 2x6+E | 7/1.04 | 0.8 | 1/1.78 | 1.1 | 6.4*12.5 | 8.0*15.0 | 240 |
| 2x10+E | 7/1.35 | 1.0 | 7/0.85 | 1.2 | 7.8*15.5 | 9.6*19.0 | 390 |
| 2x16+E | 7/1.70 | 1.0 | 7/1.04 | 1.3 | 9.0*18 | 11.0*22.0 | 560 |
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce all kinds of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the 2.5mm twin and earth cables.
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such asIEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
Company website: www.jytopcable.com
