3000A Euro Standard Busbar Type AC Current Probe

Name: 3000A Euro Standard Busbar Type AC Current Probe
Brand: all-electronics-online.com
SKU: 688403492
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 99/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Busbar Type AC Current Probe
Features:	Low Phase Shift for Power Measurement
Measurement Range:	1mA to 3000A AC
Nominal Input Current:	3000A
Output Signal:	500mA, 1A, 5A AC at Nominal Input Current
Accuracy:	0.2%, 0.5%
Max. Jaw Opening:	50mm*125mm
Dimensions:	New Designed Current Transformer
Weight:	1200g
Output Model:	Lead Output
Material:	Permalloy
Application:	Instruments

Product Description

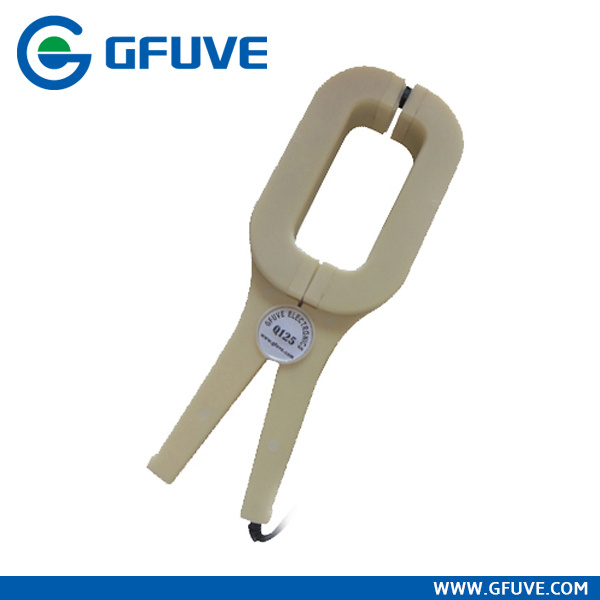

Q125 3000A Euro standard busbar type AC Current Probe
The model Q125 3000A Euro standard busbar type AC Current Probe can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 3000A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output(2.5m)

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	3000 A
Max. Cont. Input current	3600A
Accuracy	0.2%, 0.5%
Over voltage category	CAT III 600 V
Output signal	500mA,1A,5A AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3000 V 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	50 mm
Standard	EN 61010-1
Dimensions	500mA,1A,5A
Weight	1200g
